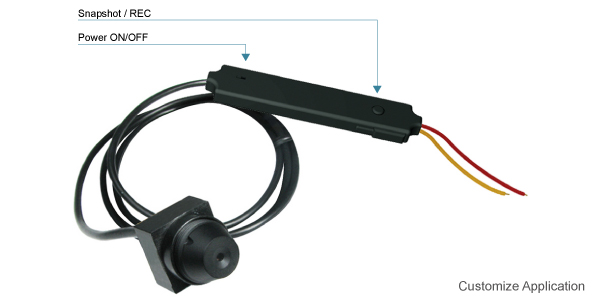

| The Smallest DVR Module Of The World MP-202 |
| |
|
The Smallest DVR Module Of The World
 Video Input: NTSC ONLY
Video Input: 1 Channel
Audio Input: 1 Channel
Video Output: NTSC/PAL 1 Channel
Audio Output: 1 Channel
Video Processing: Chipset DSP Processor
Compression: MPEG4 format
Snapshot: JPG IMAGE 640x480
Control: on board key, IR remote control
Built-in memory 4G, 8G, 16G, 32G(optional)
Display Frames: 30 FPS 640x480
Recording Frame: 30 FPS 640x480
Recording Mode: Normal, Loop, IR remote control
Power Input: DC 5V 300mA
Power Output: DC 5V 110mA(DC 12V Optional)
Dimension : 11 x 55 (mm)
|
 |
 |
 |
|
 |
 |
|
| MINI Mobile Digital Video Recorder MPM-3501 |
| |
|
1/4" Color CCIQ II Helmet Camera
316K(NTSC & PAL)
Horizontal 400 TV Lines
4.3mm/F2.0
0.1 Lux/ F1.2
With Microphone
|
| Idea! Industrial Inspection Wireless Camera Module MS-6476-3T-C01 |
| |
|
Concept:
Comparison, identification, distance measurement
1/4" B/W CCD Camera
white Light LED X 4
290k (CCIR) / 250k (EIA)
420 TV Lines over
3.1mm/F3.4 Cone Lens
Power Supply :DC 5V
Dimension(mm) :85 x 70 x 10(mm)
Battery Working time about 2 hr
2.4GHz Wireless 10 mW
With 2.4GHz Wireless RECEIVER MSR-A2430D
|
 |
|
|
| Intercept and View any Wireless Camera Video & Audio Signal WCS-900M |
| |
|
ISM Band : 900 MHz ~ 2700 MHz
316K(NTSC & PAL)
Audio sub Carrier 5.5MHz , 6.5MHz auto detect
Switcher : Auto / Manual
Antenna : SMA
W/ Video & Audio output
Power :DC 5 V , 500mA or Li-Ion BATTERY
W/ ANTENNA FOR 900MHz(HI-GAIN)
W/ ANTENNA FOR 2400MHz(HI-GAIN)
|
| Idea! Ultra Mini Wireless Camera Module DT-MJ901 |
| |
|
1/18" Color CMOS Camera
LED Light X 4 (white light LED or IR 940nm or 850nm LED optional )
Pixel :320x240( NTSC )
240 TV Lines over
0.96mm/F3.0
Power Supply :DC 4.2V
With 900~1040 MHz (None PLL) Wireless RECEIVER MSR-C0915A
|
| Idea! HI-RES. CCD BULLET Camera Module N-B1858LM |
| |
|
SONY 1/4" COLOR CCD Image Sensor
LED Light X 8 (white light LED or IR 940nm or 850nm LED optional )
HI Resolution 520 TV Lines
8.3mm/F2.4
0.2Lux / F1.2
DC 5-12 V ,80mA
Dimension:(D)16 x 63.2 mm
|
| Idea! Ultra Mini FPCB Camera MO-F803-55 |
| |
|
Ultra Mini FPCB Camera
1/18" Color CMOS Camera
Pixel :320x240( NTSC )
240 TV Lines
0.96mm/F3.0
2Lux / F1.2
DC 3.3 V
dimensions : (diameter) 3.5mm
|
| WIRELESS 1394MHz TRANSMITTER MST-EB050M ( Export market only ) |
| |
|
RF TRANSMITTER Frequency 1394 MHz
Power output 500 mW
Video Input 1Vp-p Composite Video
Audio Input 2Vp-p Max
Power Current 280mA
Frequency 1394 MHz
Dimention 49 X 26 X 8.2 mm
|
| MINI Wireless Transmitter Frequency 1394 MHz MST-EB005 |
| |
|
RF TRANSMITTER
Frequency 1394 MHz
Power output 50 mW
Power Current 180mA
Video Output 1Vp-p Composite Video
Audio Output 2Vp-p Max
Dimension :9.2 x 37.3mm |
 |
|
| MINI 1.2 GHz WIRELESS RECEIVER MODULE MSR-B1250BM |
| |
|
RF RECEIVER
Power Input DC 7.5 ~ 12V
Power Current 300 mA
Video Output 1Vp-p Composite Video
Audio Output 2Vp-p Max
Frequency 1080,1120,1160,1200MHz
Sub Carrier 5.5 MHz
62.6 x 44 x 16.5mm
|
|
