Advanced Features

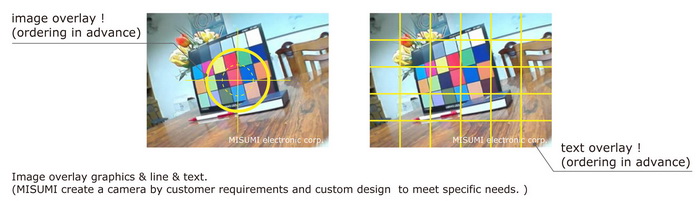

| ►Image overlay graphics & line & text. |
►MISUMI create a camera by customer requirements and custom design to meet specific needs.
|
 |
| ►Hight color Reproduction |
►More excellent color reproduction
|
 |
| ►Hight Resolution |
►Confirmed maximum resolution to achieve the 520TVL. !!
|
 |

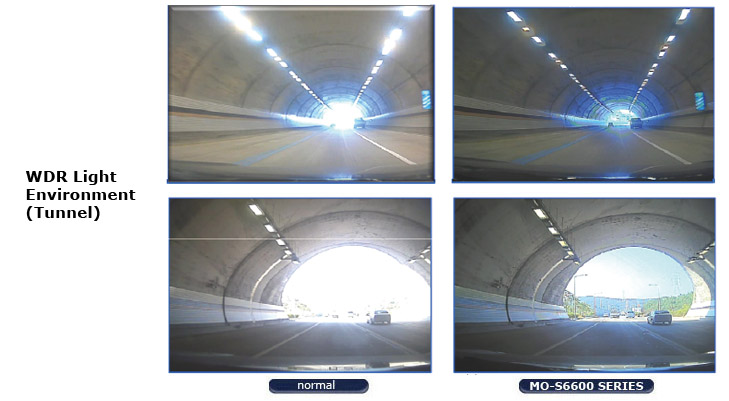

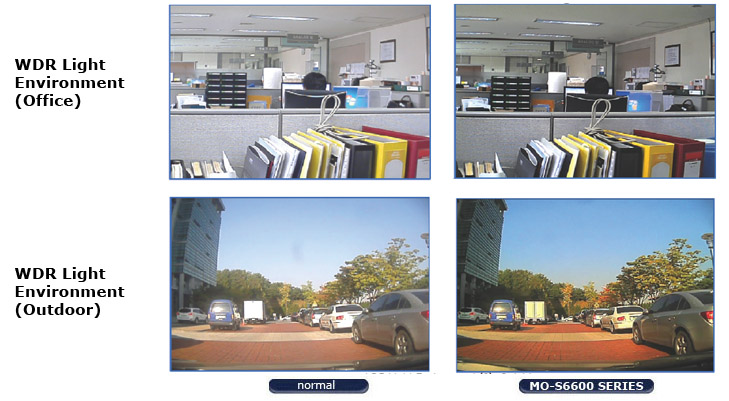

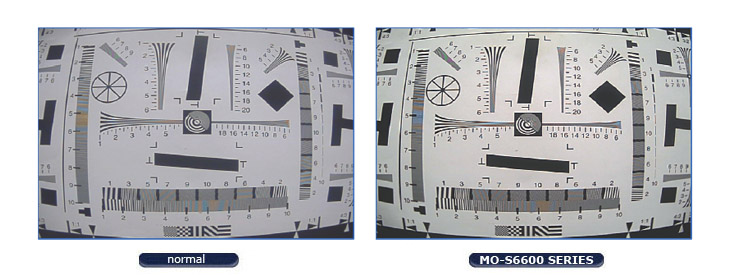

| ►WDR Light Environment (Day, Tunnel) |
►Gradation compensation to improve image contrast
►Improvement of loss of dark detail and overexposure area
|
 |

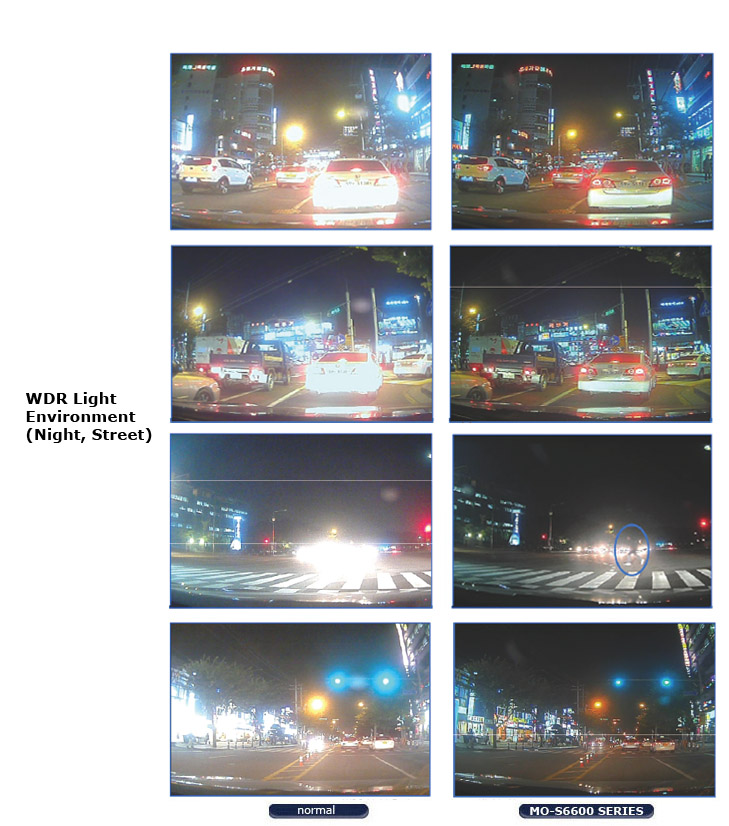

| ►WDR Light Environment (night, Street) |
►Gradation compensation to improve image contrast
►Improvement of loss of dark detail and overexposure area
|
 |
Specification
| Imager Size (in) |
1/3" Color
CCIQ III WDR Camera |
| Pixel size |
6.35 um x 7.4 um |
| Effective Image Area |
4673.6 um x 3670.4 um |
| Video system |
NTSC / PAL |
| Number of effective pixels |
736(H) x 496(V) (NTSC & PAL) |
| Minimun illumination |
0.05Lux /F 1.2 20IRE |
| Resolution(TV Lines) |
520 TV Lines |
| S/N Ratio |
50 dB |
| Sensitivity |
11.9 [V/Lux.sec] |
| Vertical Sync Frequency |
60Hz(NTSC), 50Hz(PAL) |
| Horizontal sync frequency |
15.734kHz (NTSC), 15.625kHz(PAL) |
| Video Output |
1Vp-p , 75ohms Composite |
| Storage Temperature |
-30 to 60 Degree C |
| Working Temperature |
-10 to 45 Degree C |
| Power Input |
DC 5~12V |
| Power Supply |
80mA-max.(DC 12V) |
| 5D OSD control key |
Exposure, WDR, AGC, WB brightness contrast, sharpness, color gain, NR, mirror |
Dimension
| please order in advance and we can meet your needs! Or if you have any inquiry , please tell us ,we can product of customized for the client. |
 |

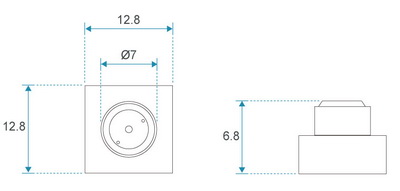

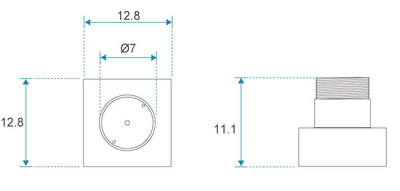

MO-S6600E-3T (UNIT:mm)
|
 |

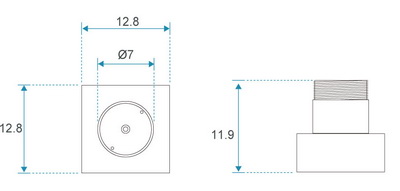

MO-S6600E-5F (UNIT:mm)
|
 |
MO-S6600E-4D (UNIT:mm)
|
NOTE: The camera dimension will be changed because different lens.
Cable length: Ordering in advance
|
Model
| Model |
Dimension(mm) |
Microphone |
Output |
| MO-S6600E |
12.8 x 12.8mm |
NO |

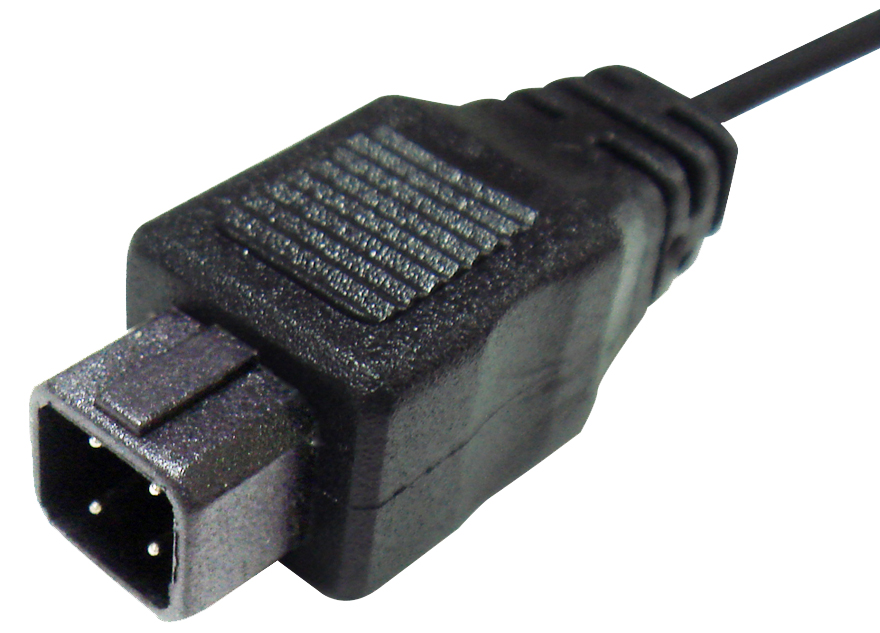

MINI 4 PIN MALE (TYPE A)
|
| MO-S6600EA |
12.8 x 12.8mm |
with Microphone |
MINI 4 PIN MALE (TYPE A) |
Cable length: Ordering in advance
|

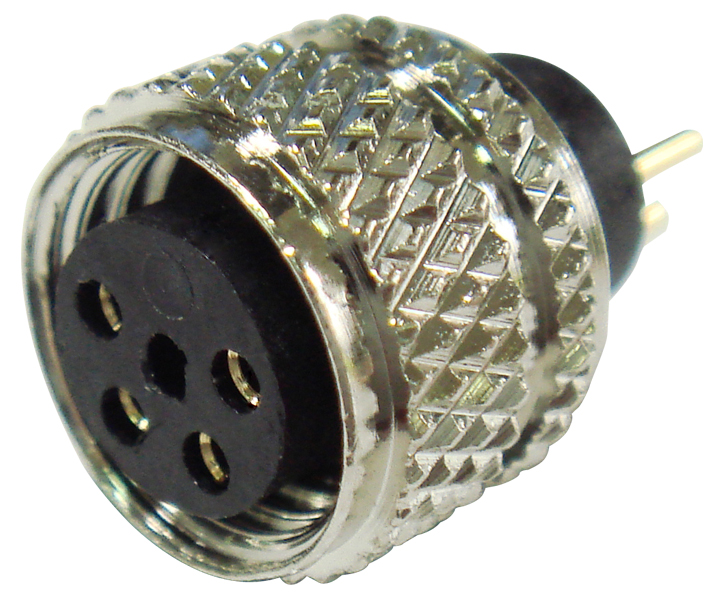

| Our camera can be composed diversify,and these connectors are just part of our product
. If you don't find what you need on our site, please feel free to email us ask,or you have any idea or requirement , we can meet your needs .we are privileged to service for you . |
| Type |
Connect |
Image |
Note |

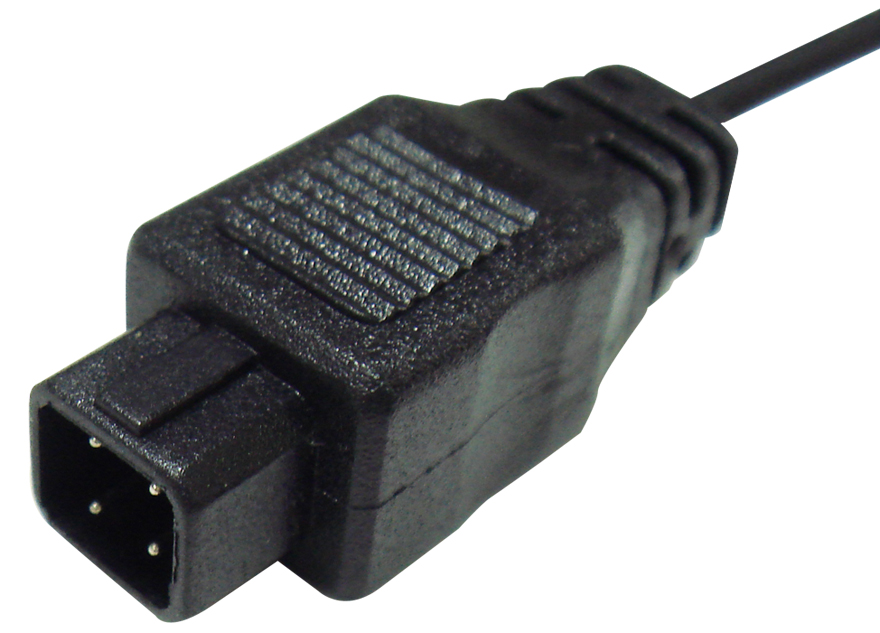

| Type A |
 |
 |
P: DC POWER
V: VIDEO
G: GND
A: AUDIO
|

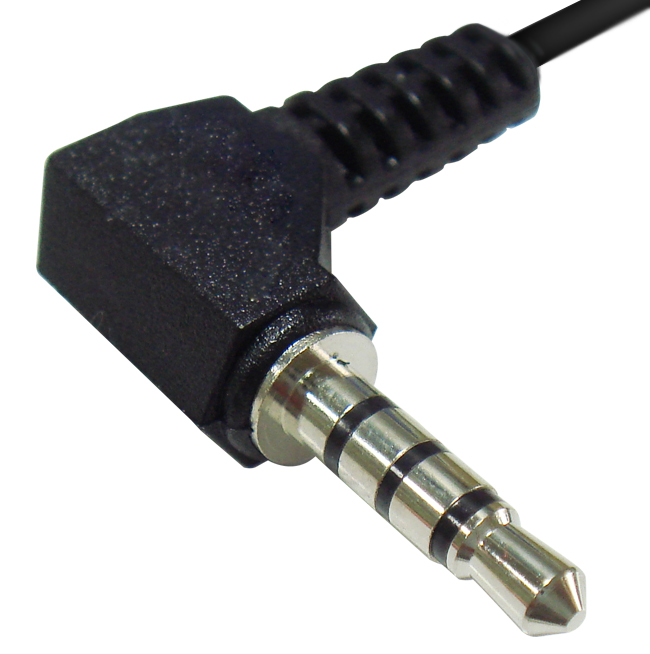

| Type B |
 |
 |
| Type C |
 |
 |
| Type D |
 |
 |
Download
| NO |
Resource Name |
File Type |
SIZE |
| 1 |
MO-S6600E |
PDF |
397KB |
|
|
