MD-VL1000LH-120
1/36" Color CMOS 200p Basic
Ø 2 x 5.3 mm
Description

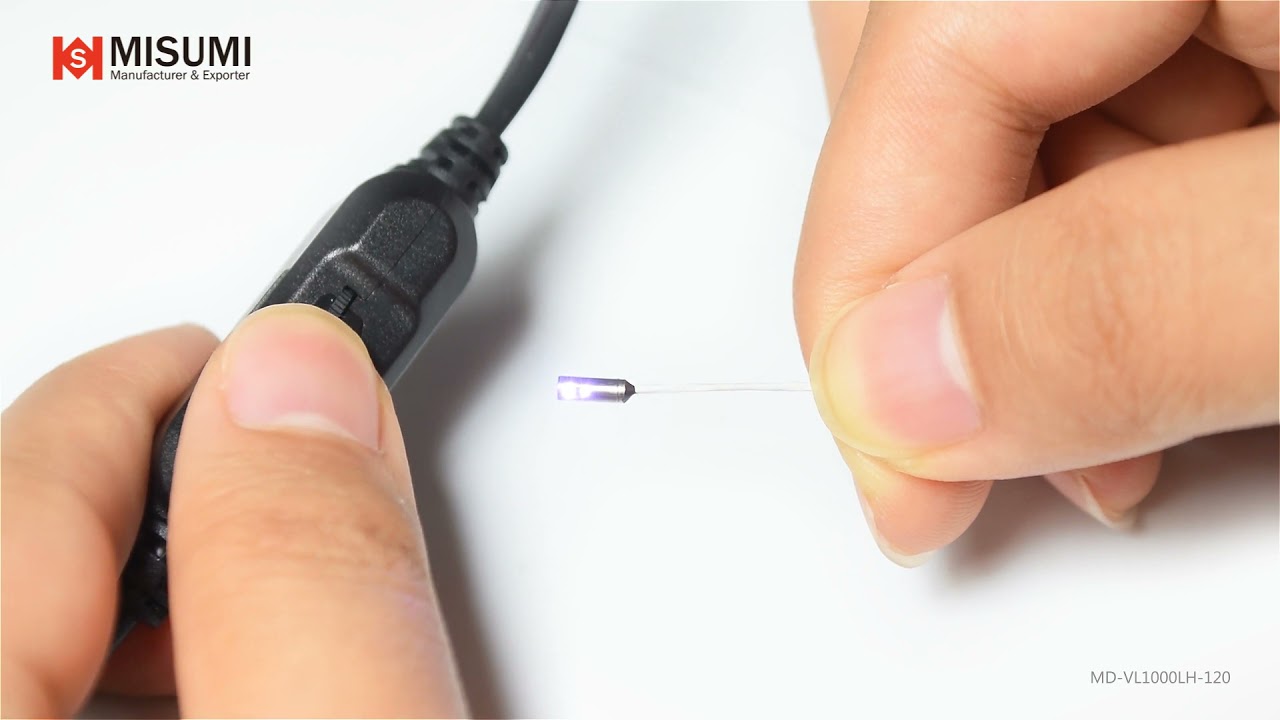

| 1/36" Color CMOS camera with 200 x 200 @ 30 fps resolution. MISUMI Mini Front View Camera module with excellent low-light sensitivity. |
Feature
| • 0.04 Megapixels (200 x 200 @ 30 fps) • 1/36" Color CMOS • View Angle 120° |
• White LED / High-Intensity White LED / IR 850nm / IR 940 nm (Optional) • Interface USB 2.0 • USB 2.0 Type A Connector • Mini Camera, Compact Size and High Image Quality Camera Module |
Choose Model
✦ MD-TL1000-120
✦ MD-TL1000-120
✦ MD-TL1000LH-120 (With LED)
✦ MD-VL1000LH-120 (With LED / Dimmer)
✦ FMD-VL1000LH-120 (With LED / Dimmer + Snapshot and Freeze
※ MD-VL1000LH-120 (Need Customized Request)
*For customizations, kindly email our sales team and specify your requests.
Add to Compare
Add to Inquiry
| Video Format | MJPEG / YUV |
| Image Sensor | 1/36" Color CMOS |
| Resolution | 200 x 200 @ 30 fps |
| Pixel Size (μm) | 1.75 x 1.75 |
| Image Area (mm) | 0.36 x 0.36 |
| Scan Mode | Progressive |
| Sensitivity | 1000 mV / (Lux-sec) |
| Dynamic Range | 60.2 dB @ 1x gain |
| S/N Ratio | 34.4 dB |
| Shutter | Rolling |
| Lens |
0.175 mm / F 2.8 |
| View Angle | 120° |
| Focus Distance (mm) | FID 12-03-30 |
| LED | High-Intensity White LED x 2 |
| Power Supply | DC 5V |
| Power Current | 140 mA |
| Interface | USB 2.0 Type A |
| Dimension (mm) | Ø 2 x 5.3 |
| • Non-Destructive Testing • Industrial Inspection • Drain Pipe Inspection • Pipeline Inspection • Automotive Inspection • Engine Valves Inspection • Robotic Inspection • Tube Inspection • Air Duct and Vent Inspection • Machine Inspection |
• Machine Vision • Aerospace Inspection • Aviation Inspection • Security Monitoring • Life Sciences • Search and Rescue |
