(Camera module not for direct contact with human body.)

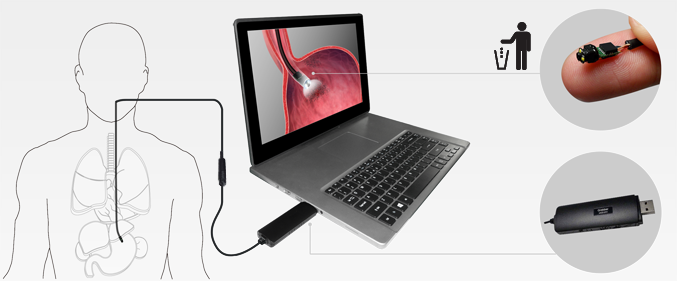

Smallest LED camera(LED x 4)
Dia.: 3.5mm for flexible medical endoscopy
Disposable Camera Module for hygienic medical
Plug & play for USB 2.0
 Medical endoscopy, industrial inspection, Spy camera, Automobile, etc..
 Specification
1/18" CMOS color camera module
Pixel: 320x240 upscale to D1, VGA (with UCD-212)
240 TV lins, 2Lux
0.77mm/F3.0 (105), 0.96mm/F2.8(55)
Driver free(USB Video Class) for any OS (USB 2.0)
Dimension(mm): (D)3.5

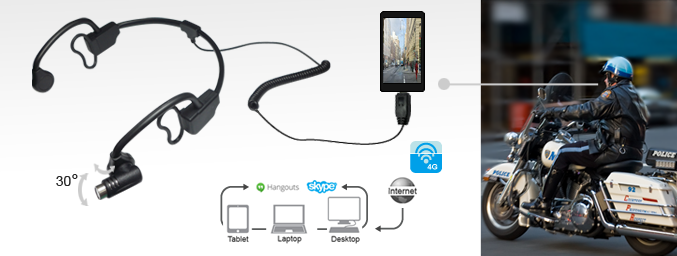

Comfortable to wear, Light weight 55g
LED light by customer request
Adjustable angle / High quality 720p
Smart phone connectivity for live stream recording
 Disaster Rescue Equipment (Earthquake debris, tornado, hurricane, flood, avalanche), Law enforcement

 Specification
1/4" CMOS color
1280x720 /YUV, MJPEG, H.264 1~30fps
640 x 400 1~30 fps, 320 x 200 1~30 fps
Lens: ordering in advance
USB Interface: Micro USB OTG B type
Dimension: 12.6(Dia.) x 31mm




Driver free(USB Video Class) for any OS

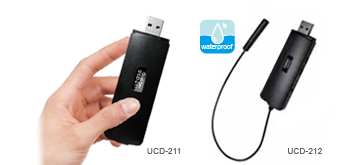

Compact size perfect for travel and portable use.
Plug & play for USB 2.0
 QVGA image pixel upscales to D1 pixel

Specification
Analog signal(NTSC/PAL)
convert to UVC(D1, VGA, QVGA)
Dimension: 100.6(L) x 30.3(W) x 15(H)

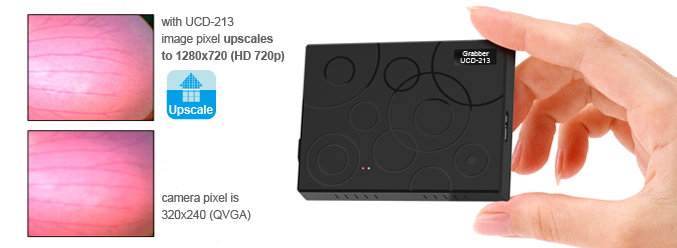

320x240 image pixel upscales to 1280x720 pixel
Plug & play for USB 3.0
Driver free(USB Video Class) for window 8, MAC OS
Slim size to portable use.
QVGA/VGA image pixel upscales to720p pixel

 Specification
Analog signal(NTSC/PAL) convert to UVC(HD,VGA)
Audio Output: 48kHz
USB Interface: USB 3.0 (Standard UVC1.1/UAC1.0)
Dimension: 100.6(L) x 30.3(W) x 15(H)

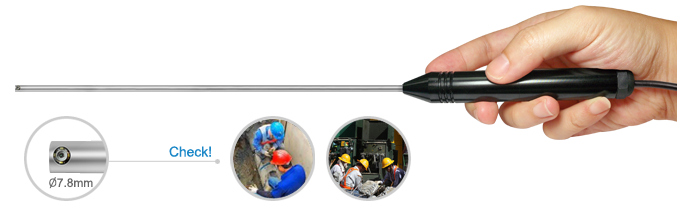

Equine Dental Endoscope Module
Dia: 7.8mm, smallest size, Bright LED illumination
Perfect for industrial inspection

 Specification
1/10" CMOS color, 400 x 400
Effective Image Area: 1.72(D) , 3300mV/Lux
Dimensions(mm): 7.8(Dia) x 250




Side view image is good for dental equipment
AGC & Frame rate are adjustable by request.
 White LED x 11

Specification
1/3" CMOS color, 642 x 484 (NTSC / PAL)
White LED x 11
Power: DC 3.3V~5V
Dimension(mm): 6.3(D) x 14
Ultra mini size perfect for medical equipment
Plug & play for USB 2.0
Customized cable length up to 20M

Specification
1/10" CMOS color, 400 x 400
Effective Image Area: 1.72(D) , 3300mV/Lux
Dimensions(mm): 3.8(Dia) x 3.61(sensor board),
85 x 20 (mainbooard)


Ultra Slim size.
Perfect for medical endoscopy
 LED light ordering in advance

Specification
1/4" CCIQ color
648(H) x 488(V)/ 5.55x5.55 um
400 TV lines, 0.1Lux
Dimension(mm): 7.7(Dia)
Ultra mini size.
Perfect for industrial inspection
LED light ordering in advance

Specification
1/3.7" CCIQ color
648(H) x 488(V) / 6x6 um
480 TV lines, 0.02 Lux
Dimension(mm): 8(Dia)
Mini size.
Perfect for industrial inspection
LED light ordering in advance

Specification
1/3" CCIQ color
728(H) x 488(V)6.35x7.4 um
480 TV lines, 0.05 Lux
Dimension(mm): 8.8(D)

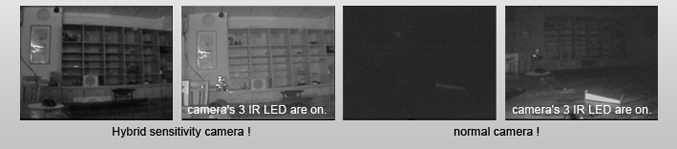

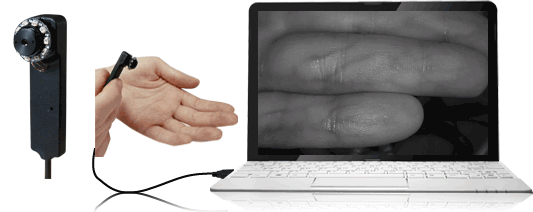

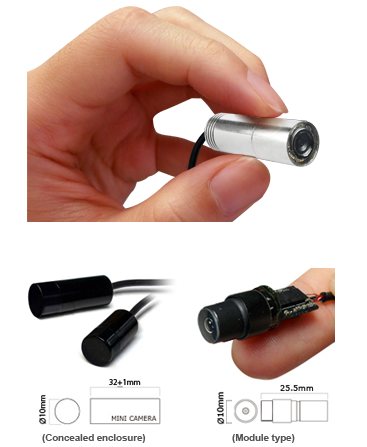

Night vison camera(0 Lux)
Perfect for dark environment
IR 940 nm LED x 12

Specification
1/3.7" Hybrid sensitivity color (MX-T95510KL)
1/3.7" Hybrid sensitivity B/W (MX-T95710KL)
648(H) x 488(V), Frame rate: 15 fps
Dimensions(mm): 10(Dia) x 30




Ultra low light
Perfect for dark environment

Specification
1/3.7" Hybrid sensitivity B/W(MO-R57xxK)
1/3" Hybrid sensitivity B/W (MO-R59xxK)
648(H) x 488(V), Frame rate: 15 fps
Power: DC 5 ~12V (80mA- max)



Full HD 1080p / HD 720p high image quality
Compact size for portable

Specification
1/2.9" CMOS color
1920x1080 /30fps, 1280x720 /30fps
Connect Interface: HDMI D type
Power: DC 5~12V
Dimension(mm): 17.4 x 40
Full HD 1080p / HD 720p image quality
Mini size, Play & plug USB 2.0

Specification
1/2.7" CMOS color
1920x1080/30fps H.264, MJPEG; 5fps YUV
Video System: UVC
Power: DC 5V
Dimensions(mm): 20x48

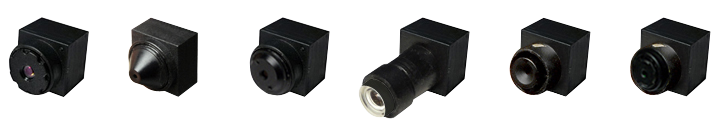

3D(3.9mm/F2.8) 2V (2.8mm/F3.9) 3T (3.4mm/F3.4) 2S (2.1mm/F2.5)
2B (2.69mm/F2.0)		 3K (2.8mm/F3.9) 3X6 (3.4mm/F6.0)
High DOF

Ultra Slim size .
Perfect for medical endoscopy
 LED light ordering in advance

Specification
1/4" CCIQ color
648(H) x 488(V)/ 5.55x5.55 um
400 TV lines, 0.1Lux
Dimension(mm): 8.6x8.6
Ultra mini size.
Perfect for  industrial inspection
LED light ordering in advance

Specification
1/3.7" CCIQ color
648(H) x 488(V) / 6x6 um
480 TV lines, 0.02 Lux
Dimension(mm): 8.6x8.6
Mini size
Perfect for  industrial inspection
LED light ordering in advance

Specification
1/4" CCIQ color
648(H) x 488(V)/5.6x5.6 um
560 TV lines, 0.05 Lux
Dimension(mm): 8.6x8.6


Ultra Slim size . Play & Plug USB 2.0
 IR 940nm LED light x 10

Specification
1/4" WXGA HD 720P,
1280 x 720 /YUV 10fps/ MJPEG 1~30fps/ H.264 1~24fps
640 x 400 1~30 fps, 320 x 200 1~30 fps
Dimension(mm): (D)10.3 x 40.7

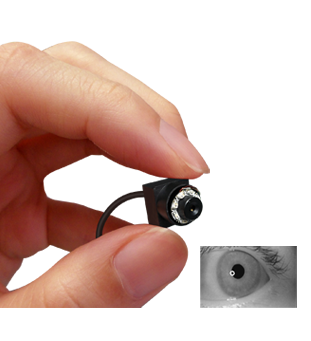

Ultra Slim size .
IR 940nm LED light x 8
Saving power consumption (20mA-max for camera only )

Specification
1/4" CCIQ B/W, 80K(EIA), 100K(CCIR), 0.5Lux/F1.4
240 TV lines  4.3mm/F2.0  Dimension(mm): 13x13
Power: DC 5V (20mA for camera only, 180mA for camera+LED)
(DC5V / DC 7~12V ordering in advance)
