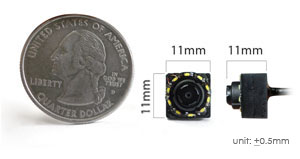

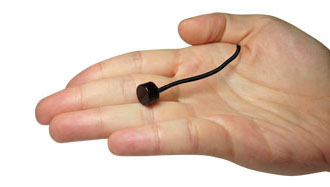

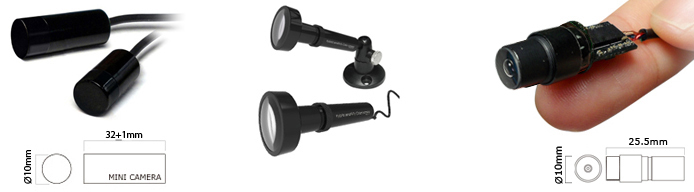

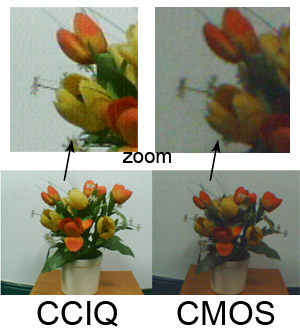

1/3.7" COLOR CCIQ III Camera   MO-D5510-2V
PDF FILE

 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Effective Pixel: 648(H) x 488(V)(EIA / CCIR)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 480 TV Lines
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Lens: 2.8mm/F3.9
 Focal distance: infinity
 Power Consumption: 5~12V
 Dimension: 10.5 x 10.5mm
MINI CAMERA, stamp, REARVIEW CAMERA

Hi-res. download Catalogue Catalogue

The smallest USB cam of the world  MD-B1003-62 , MD-B7003-65, MD-B1003L-65
PDF FILE

 1/10" Color CCIQ II (MD-B1003-62, MD-B1003-65)
 1/10" B/W CCIQ II (MD-B7003-65)
 Pixel: 400 x 400
 Lens: 1.43mm F3.2
 Lens: 1.498 mm F 3.1
 3300mV/Lux
 UVC USB 2.0 video camera for vista, window XP, windows 7, windows 8
 Dimension(mm): 3.4
TINY CAMERA, MEDICAL, TEETH, ENDSOPE, earendsope

Hi-res. download Catalogue Catalogue

Full HD 1080P law enforcement mini mobile DVR  MP-800, MP-810
PDF FILE


 GPS 1080p mobile DVR + 5MP camera with IR 850nm (1W) & IR 940nm or white LED +
 Built-in walkie-talkie speaker & microphone
 Micro SD card slot x 2 (support 32GB x 2= 64GB)
 H.264 1080p recording video & snapshot(jpg),
 Display : 2.4 " TFT
 Loop overwrite recording or continuous recording, GPS video stamping
 Special power saving button (monitor sleep mode)
 AV recorder resolution :
1280 x 720 (HD 720p) / max 30 fps.
1920 x 1080 (Full HD 1080p) / max 30 fps.
 RTC stamp embedded in video stream
 mini HDMI output
 DC 5V adapter ( USB & charging )
 Rechargeable Li-ion battery NP120(2000mAh)
 Dimension(mm): 118 x 65 x 38 (mm)
Model MP-800 MP-810
Note IR 940nm & IR 850nm LED White LED & IR 850nm LED
law enforcement, GPS camera, DVR, 5 megapixel

Hi-res. download Catalogue Catalogue

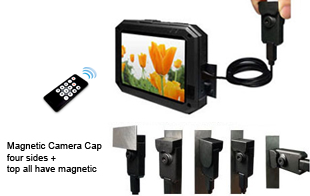

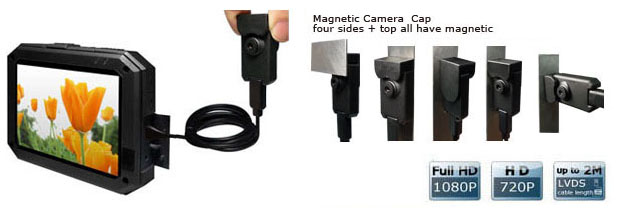

3.5" full HD mobile DVR  MP-700, MP-710, MP-711
PDF FILE


 Mobile LVDS 1080p DVR + 5MP camera
 UI:3.5" TFT & IR remote control
 8 mega pixel / 3200 x 2400 (interpolated by software),
 5 mega pixel / 2592 x 1944 (recommended)
 SD/SDHC. card slot (micro SD support 32GB x 2= 64G )
 Mpeg 4, recording video(avi.) & snapshot (jpg)
 Motion Detect, loop overwrite recording or continuous recording, RTC stamp embedded in video stream
 Special power saving button (monitor sleep mode)
 AV recorder resolution
CVBS camera:
720 x 480-NTSC,
720 x 576-PAL / max 30 fps (D1)
5MP camera:
1280 x 720 (HD 720p) / max 30 fps.
1920 x 1080 (Full HD 1080p) / max 30 fps.
 Digi 5MP LVDS in & AV line input with 2.5mm phone jack ,  Mini HDMI out
 Audio input select by user (from audio line in or built-in microphone)
 USB jack 10pin ( USB & charging ), rechargeable Li-ion battery NP120(2000mAh)
 Dimension(mm): 82.5 x 98.5 x 22

These specs shows above which only supports digital camera.
The analog camera only supports video recording function.
MODEL Built-in Lens Note
MP-700 5.2mm/F2.8 camera + DVR
MP-710 3.0mm/F2.0(cap 12mm) camera + DVR
MP-711 3.0mm/F2.0(cap 10mm) camera + DVR

Hi-res. download Catalogue Catalogue

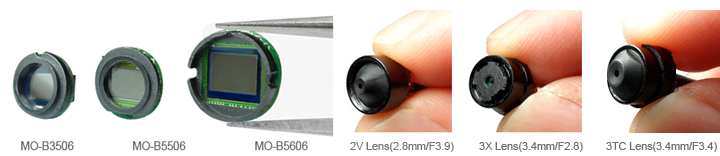

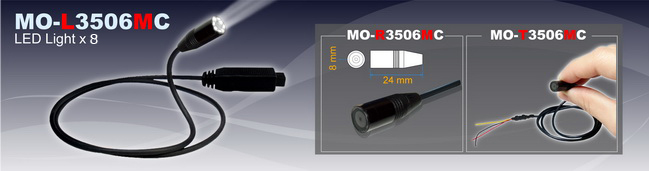

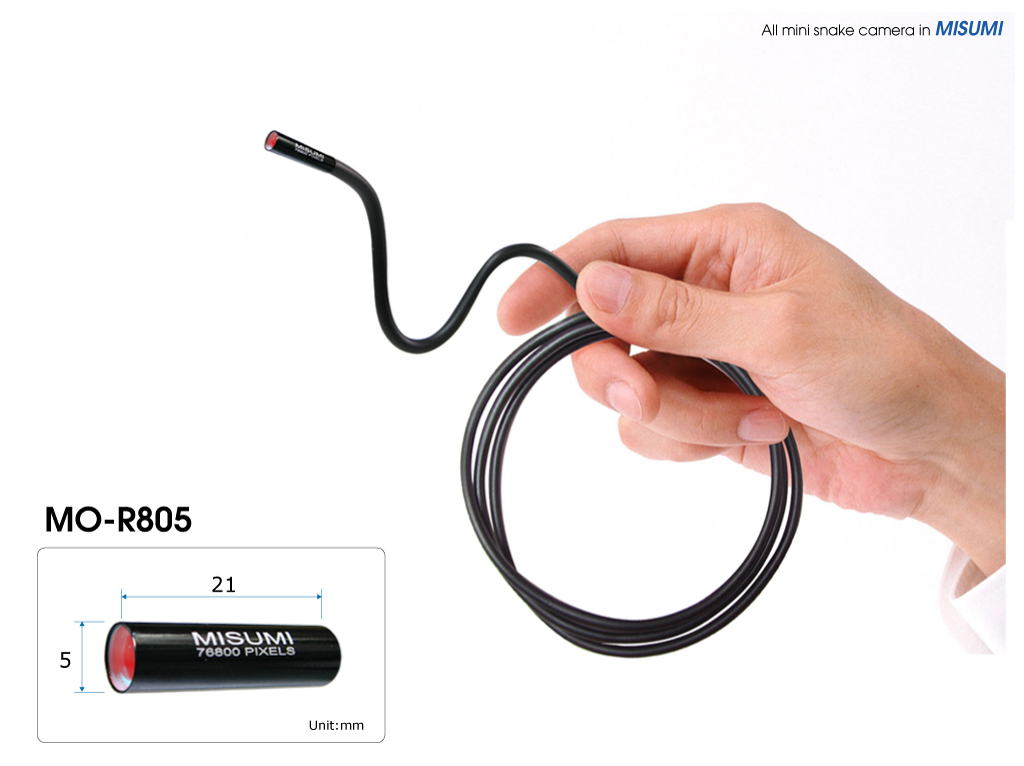

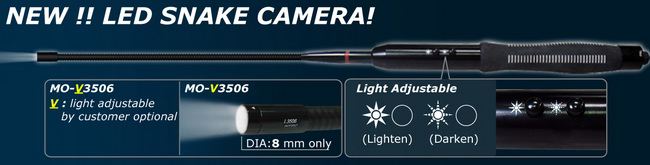

Medical camera module!  MO-B3506, MO-B5506, MO-B5606
PDF FILE

MO-B3506
 1/4" Color CCIQ
 Effective Pixel: 648(H) x 488(V)(NTSC / PAL)
 Pixel Size: 5.55 um x 5.55 um
 Resolution: Horizontal 400 TV Lines
 0.1 Lux/ F1.2
 Sensitivity: 3.16 [V/Lux.sec]
 Dynamic Range: 63.5 [dB]
 S/N ratio: 45.6 [dB]
 Power Consumption: DC 3.3~4.2V
 Dimension(mm): 7.7(D)
MO-B5506
 1/3.7" Color CCIQ
 Effective Pixel: 648(H) x 488(V)(NTSC / PAL)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 480 TV Lines
 0.02Lux at F1.2 20IRE
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Power Consumption: DC 3.3~4.2V
 Dimension(mm): 8(D)
MO-B5606
 1/3" Color CCIQ
 Effective Pixel:728(H) x 488(V)(NTSC / PAL)
 Pixel Size: 6.35 um x 7.4 um
 Resolution: Horizontal 480 TV Lines
 0.05Lux at F1.2 20IRE
 Sensitivity: 13.8 [V/Lux.sec]
 Dynamic Range: 63.7 [dB]
 S/N ratio: 46.4 [dB]
 Power Consumption: DC 3.3~4.2V
 Dimension(mm): 8.8(D)
medical camera, tube camera

MISUMI provides many lenses for camera board. Order in advance for your specific needs!
Any inquiry, please email us, we will be pleased to make your customized products!


Hi-res. download Catalogue Catalogue

wide angle camera module  MP-N900M
PDF FILE

 High-speed video data transmitter(THCV219)
 Resolution: 1280(H )x 720(V)
 Effective Image area(mm): 5.51 x 3.81
 Pixel Size(um): 4.20 x 4.20
 Image sensor: 1/2.9" Color
 Max. Frame rate(fps): 30
 Dynamic range(dB): 55.1
 Sensor scan mode: Progressive
 Sensitivity: 7.0[V/Lux.sec]
 Lens: 1.21mm/F2.0
 Connector Inteface: Micro USB receptacle (B type)
 Power: DC 5V/160mA
 Dimension(mm): 40.4 x 16.8

Hi-res. download Catalogue Catalogue

The smallest cam of the world + cable length: 150 cm!!  MO-SL1003-62
PDF FILE

 1/10" Color CCIQ II pico camera
 Pixel: 400 x 400 (NTSC / PAL )
 Shutter speed :
1/670 000 ~ 1/60 [sec](NTSC)
1/560 000 ~ 1/50 [sec](PAL)
 Lens: 1.43mm F3.2
 3300mV/Lux
 Dimension(mm): 3.5

Hi-res. download Catalogue Catalogue

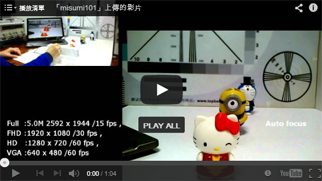

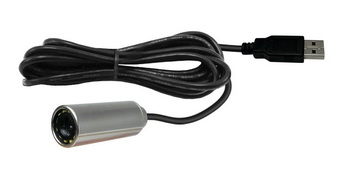

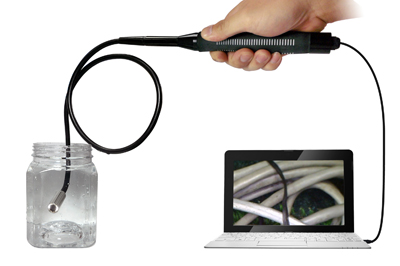

5.0 mega pixel UVC QSXGA camera + white LED x 12  MD-T5015LV-3828, MD-L5015V-3828
PDF FILE


  White LED x 12, Waterproof !!!
 Max. frame rate:
Full 5.0M 2592 x 1944 /15 fps,
FHD 1920 x 1080 /30 fps ,
HD 1280 x 720 /60 fps ,
VGA 640 x 480 /60 fps
 Pixel size: 1.4um x 1.4um
 1/4" CCIQIII digital QSXGA cmos camera
 Image area: 3.651 x 2.744mm
 Scan mode: progressive
 Sensitivity: 5100 e-/lux.sec
 Dynamic range: 63 dB
 UVC format: MJPEG
 Lens: f 3.87mm/F2.8-auto focus
 Interface: USB 2.0 (compliant with USB video class 1.1 standard)
 Power: DC 5V (USB)/ 250mA(working)
 Operating system: Windows 7, Windows 8
(windows 7 operating system in use, you need to install MJPG decoders.)
 Dimension(mm): (D) 15 x 14

MO-T5015LV

MO-L5015V

Hi-res. download Catalogue Catalogue

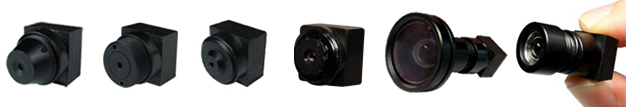

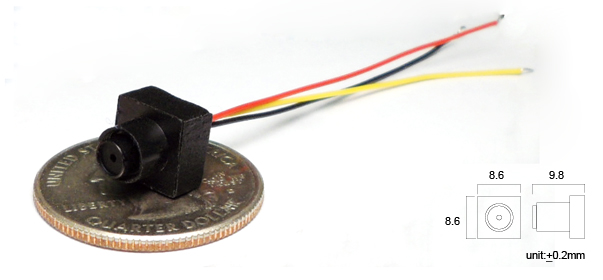

1/4" Color CCIQ IV Camera   MO-S7588-3D, MO-S7588-2V, MO-S7588-3T, MO-S7588-4T, MO-S7588-2S, MO-S7588-3K
PDF FILE


1/4" Color CCIQ IV Camera(MO-S7588)
1/4" B/W CCIQ IV Camera(MO-S7788)
Pixel: 648(H) x 488(V) (NTSC-EIA / PAL-CCIR)
Pixel size: 5.6 um x 5.6 um
Effective image area: 3.63 mm x 2.73 mm x 4.54 mm
Resolution: horizontal 500 TV Line(NTSC), 560 TV Line(PAL)
Sensitivity: 10.5 [V/Lux.sec]
SNR: 46.2 [dB]
Dynamic range: 65.3 [dB]
Power: DC 5~12 V
Dimension(mm): 8.6 x 8.6
3D LENS
(3.9mm/F2.8)
2V LENS
(2.8mm/F3.9)
3T LENS (3.4mm/F3.4)
4T LENS (3.9mm/F3.9)
2S LENS (2.1mm/F2.5)
2B LENS (2.69mm/F2.0)
3K LENS
(2.8mm/F3.9)


Hi-res. download Catalogue Catalogue

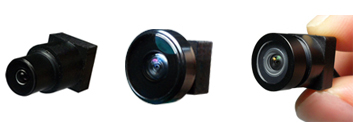

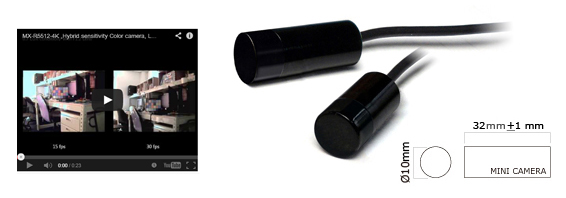

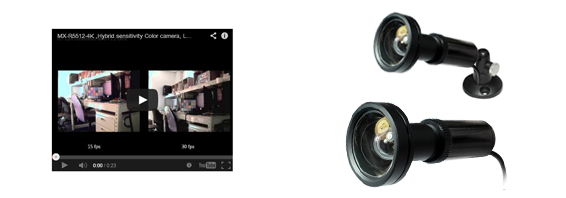

1/3.7" CCIQIII Hybrid sensitivity camera  MX-R5510C, MX-R5512-4K, MX-R5610C, MX-B5509-3G, MX-R5612-4K, MX-B5609-3G
PDF FILE

 Non-detectable(AR lens) !
 Hybrid sensitivity camera !!

 1/3.7" Hybrid sensitivity color camera (MX-R55XX)
 1/3.7" Hybrid sensitivity B/W camera (MX-R57XX)
 Pixel: 648(H) x 488(V)
 Resolution: 550 TV Lines(MX-R57XX), 480 TV Lines (MX-R55XX)
 0.02 Lux/ F1.2
(0.5 Lux / 74.5IRE, 15 fps), (0.5 Lux / 63.2IRE, 30 fps)
 Frame rate: 60 field/sec (NTSC-EIA), 50 field/sec CVBS (PAL-CCIR)
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Power: DC 5 ~12V (80mA- max)
 Non-detectable(AR lens) !
 Hybrid sensitivity camera !!

 1/3" Hybrid sensitivity color camera (MX-R56XX)
 1/3" Hybrid sensitivity B/W camera (MX-R59XX)
 Pixel: 728(H) x 488(V)
 Resolution: 480 TV Lines (MX-R56XX), 550 TV Lines(MX-R59XX)
 0.02 Lux/ F1.2
(0.5 Lux / 74.5IRE, 15 fps), (0.5 Lux / 63.2IRE, 30 fps)
 Frame rate: 60 field/sec (NTSC-EIA), 50 field/sec CVBS (PAL-CCIR)
 Sensitivity: 13.8 [V/Lux.sec]
 Dynamic range: 63.7 [dB]
 S/N ratio: 46.4 [dB]
 Power: DC 5 ~12V (80mA- max)
 If you have customized camera designs(15 fps~1fps), Misumi can help you realize them.
Feel free to send us your ideas, and we can help custom build your special camera application.

MX-R5510C, MX-R5710C
MX-R5610C, MX-R5910C
Lens: 3.6mm/F2.0
MX-R5512-4K, MX-R5712-4K
MX-R5612-4K, MX-R5912-4K
Lens: 4.0mm/F1.2
MX-B5509-3G, MX-B5709-3G
MX-B5609-3G, MX-B5909-3G
Lens: 3.6mm/F2.0
Video demo

Hi-res. download Catalogue Catalogue

1/3" CCIQ III 960H camera   MO-M8510-4C, MO-M8510-3F,MO-M8510-3C, MO-M8710-4C, MO-M8710-3D, MO-S8510-3TC, MO-S8510-2V
PDF FILE

 1/3" Color CCIQ III 960H Camera(MO-M8510)
 1/3" B/W CCIQ III 960H Camera(MO-M8710)
 Pixel: 976 (H) x 496(V) (NTSC-EIA / PAL-CCIR)
 Pixel size: 5.00 um x 7.40 um
 Effective image area: 4.88 mm x 3.67 mm
 HI Resolution: 710 (NTSC/EIA), 740 (PAL/CCIR) TV line over
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Shutter speed: 1/60~1/200,000 (NTSC/EIA), 1/50~1/170,000 (PAL/CCIR)
 Power: DC 5~12 V
 Dimension(mm): 11 x 11

(2V)2.8mm/F3.9

(3TC)3.4mm/F3.4
(3C)3.7mm/F2.0
(4C)4.3mm/F2.0
(3F)3.7mm/F2.0
(4F)4.3mm/F2.0
(3T)3.1mm/F3.4
(4T)3.9mm/F3.9
(3D)3.9mm/F2.8 (4G)4.0mm/F1.2 (3G)3.60mm/F2.0 (3GS)3.60mm/F2.0

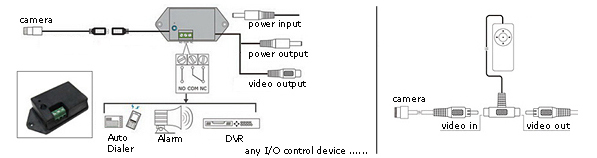

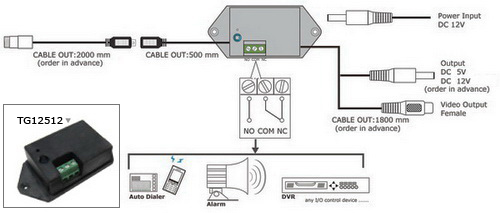

With motion detect function(Sold separately) With UTC function

Hi-res. download Catalogue Catalogue

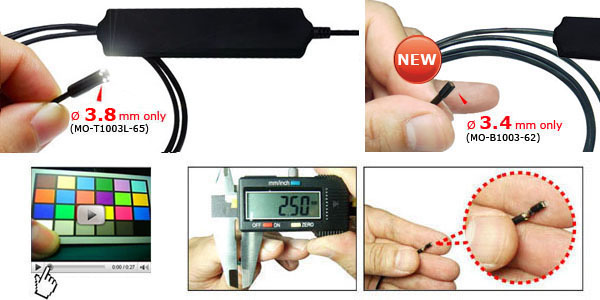

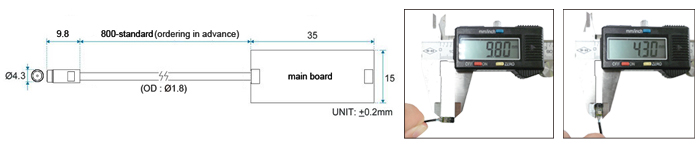

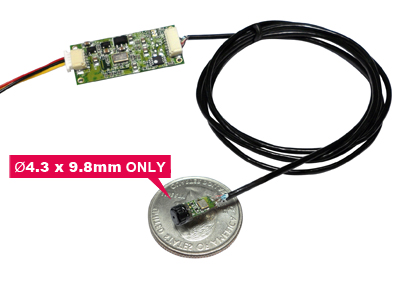

New Innovation !! The smallest cam of the world  MO-T1003L, MO-B1003, MO-T1003-120, MO-B1003-62
PDF FILE

 1/10" color CCIQ II pico camera
 white LED light x 4
 Pixel: 400 x 400 (NTSC / PAL )
 3300mV/Lux
 Shutter Speed :
1/670 000 ~ 1/60 [sec](NTSC)
1/560 000 ~ 1/50 [sec].(PAL)

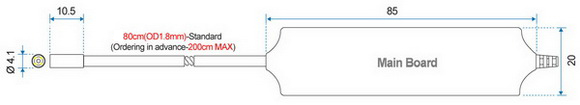

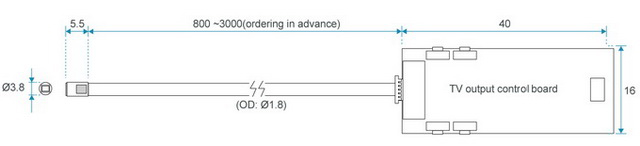

 Dimension(mm):
Sensor board: (D)3.8 x 11.2
Main board: 85 x 20
Model Built-in Lens Diameter LED Light
MO-B1003-62 1.43mm/F3.2 3.4 mm NO
MO-T1003-120 1.11 mm/ F 2.8 3.6 mm NO
MO-B1003 NO 2.5 mm NO
MO-B3003: AGC OFF

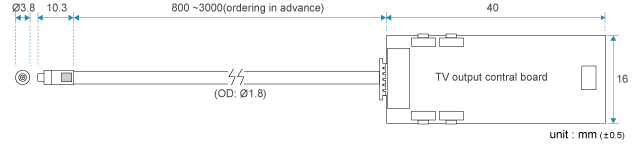

cable length(sensor board to main board):
80CM-Standard (Ordering in advance)

Hi-res. download Catalogue Catalogue

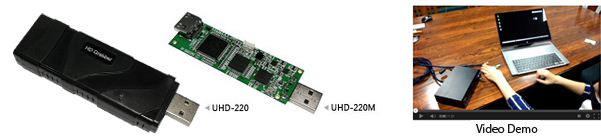

USB 2.0 HDMI Capture Device  UHD-220-MFHD, UHD-220-HD, UHD-220M-MFHD, UHD-220M-HD
PDF FILE


 USB 2.0 HDMI capture device
 UVC UAC USB video device class (driver free)
 HDMI 1080p, 1080i or 720p video audio input (no support HDCP)
 MJPG
1920 x 1080 up to 15fps (full screen)
1280 x 720 up to 30fps
1366 x 768 up to 30fps
 YUV
1920 x 1080 up to 5fps (full screen)
1280 x 720 up to 15fps
1366 x 768 up to 15fps
 Interface: USB 2.0
 OS support: Linux, windows XP, WIN7, WIN8, Vista, Mac, New nexus7(Android 4.3)
 Any uvc software:
(Windows XP / VISTA/7/8)
1. AMCAP, 2. VLC, 3. Portplayer / KM player, 4. SKYPE (old version) / QQ /, 5. GOOGLE+ Hangouts, 6. Webcamxp
(MAC OSX)
1. quickTime player (new add record), 2. Skype (it just take the smallest resolution of device),
3. final cut pro, 4. VJ, 5. photo booth, 6. Google+ Hangouts
 Dimension(mm): 80 x 25 x 8 (module type), 100 x 30 x 16 (with plastic case)
Model HDMI input Note
UHD-220-MFHD 1280 x 720-defult, (1080p, 1080i, D1- Manual mode)
UHD-220-HD 1280 x 720 HD only
UHD-220M-MFHD 1280 x 720-defult, (1080p, 1080i, D1- Manual mode) Module only
UHD-220M-HD 1280 x 720 HD only

Hi-res. download Catalogue Catalogue

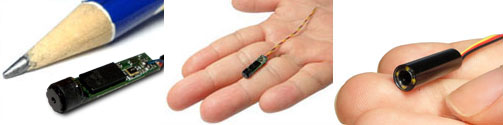

1/8'' CCIQ II color camera  MO-B8F4, MO-T8F4, MO-T8F4L,MO-B8S4, MO-T8S4, MO-T8S4L
PDF FILE

 1/8" color CCIQ II
 Pixel: 648 x 488 (NTSC/PAL)
 Resolution: 400 TV Lines
 Sensitivity: 1.06 [V/Lux.sec]
 Pixel size: 2.8 um x 2.8um
 Effective image area: 1.814 mm x 1.366 mm
 Min. illumination: 1 lux
 Dynamic range: 60.3 [dB]
 Lens: 1.498mm/ F3.2
 Power: DC 3.3V(160mA-max)
 Dimension(mm):
(D)4.8 x 20.9(board type), (D)5.5 x 27(tube type)
Board type video demo
MODEL Max. Frame Rate Note AGC
MO-B8F4 30 fps. board only AGC 8X
(for Endoscope application)
MO-T8F4 30 fps. Tube type
MO-T8F4L 30 fps. White LED x 4 (Tube type)
MO-B8S4 30 fps. board only AGC 32X
(for Surveillance application)
MO-T8S4 30 fps. Tube type
MO-T8S4L 30 fps. White LED x 4 (Tube type)

Hi-res. download Catalogue Catalogue

1/3" color CCIQ III camera  MO-S8650, MO-S8651, , MO-S8651-2V
PDF FILE


 1/3" color CCIQ III 960H camera (MO-S8650, MO-S8651)
 1/3" B/W CCIQ III 960H camera (MO-S8950, MO-S8951)
 Pixel: 976 (H) x 496(V)
 Pixel size: 5.00 um x 7.40 um
 Effective image area: 4.88 mm x 3.67 mm (diagonal :5.97mm)
 Resolution: 710(NTSC/EIA), 740(PAL/CCIR) TV line over
 Shutter speed: 1/60~1/200,000(NTSC/EIA), 1/50~1/170,000(PAL/CCIR)
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Lens: 4.3mm/F2.0(4V/M10), 2.8/F3.9(2V/M7)
 Power: DC 5~12V (80 mA-Max)
 Dimension(mm) : (D)23(MO-S8651, MO-S8951) / 20 x 23(MO-S8650, MO-S8950)

Hi-res. download Catalogue Catalogue

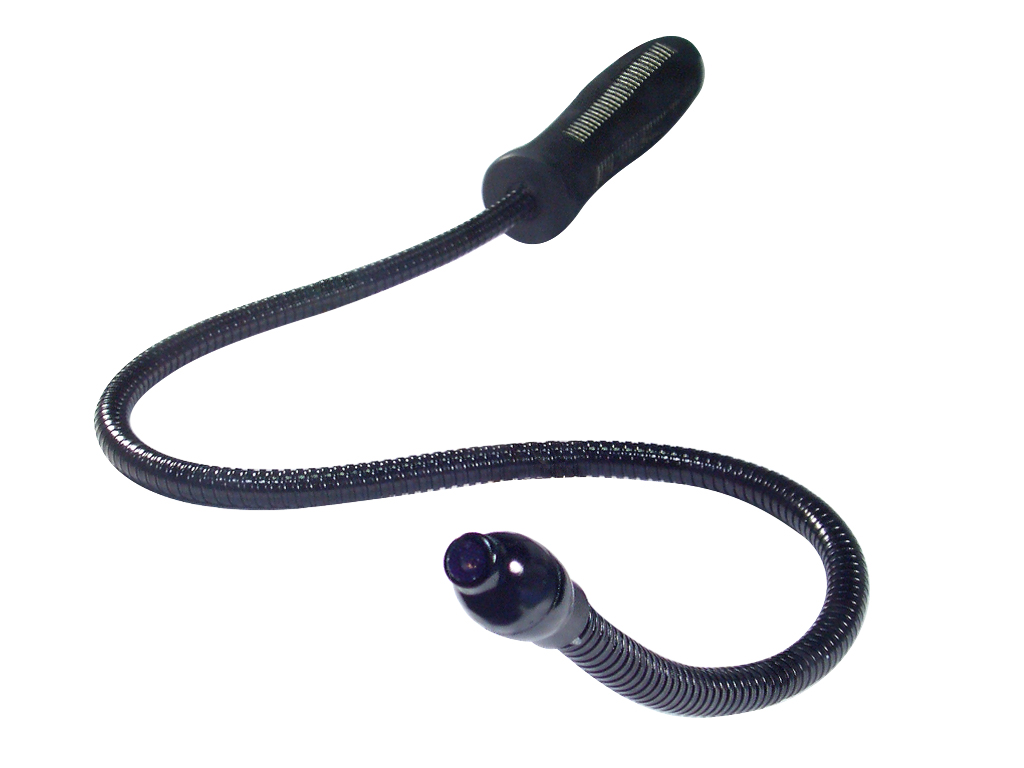

Ultra slim camera + white LED x 10 !!  MO-S75L
PDF FILE


 1/4" CCIQIII color industrial inspection camera module
 Focal distance: 8~100mm adjustable
 Image area: 3.63(H) x 2.73(V) x 4.54 (D)
 Pixel: 648 x 488 (NTSC/PAL)
 Resolution: horizontal 500 TV Line(NTSC), 560 TV Line(PAL)
 Frame rate: NTSC 60 fps, PAL 50 fps
 Min. Illumination: 0.02 Lux/ F1.2
 Sensitivity: 10.5 [V/Lux.sec]
 Dynamic range: 65.3 [dB]
 S/N ratio: 46.2 [dB]
 Power: 5~12V
 Dimension(mm): 11 x 11(+-0.5mm)
Misumi provides Enhanced DOF Lens & Modules with Led for special applications: industrial application, pipe & car inspection, medical endoscope modules, wildlife observation, and spy application.

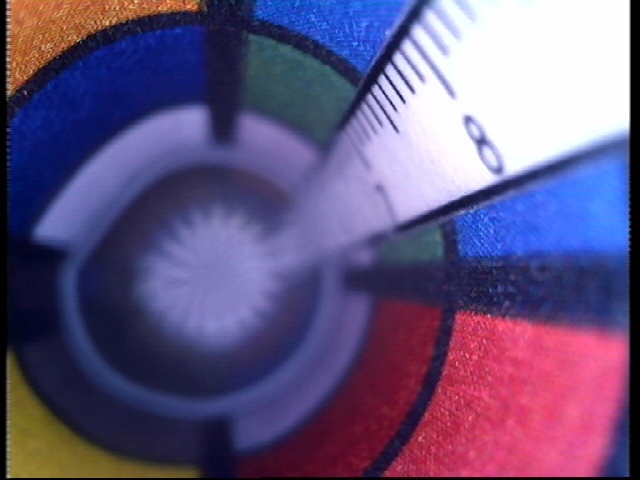

(normal lens camera)

(deep focus lens)

(video demo)

Hi-res. download Catalogue Catalogue

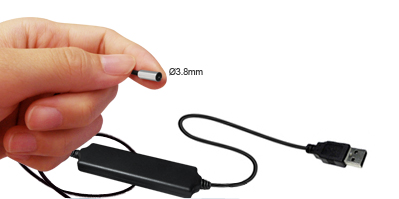

Spy HD mini USB camera  MD-N4020, MD-N4021, MD-N4022, MD-N4023, MD-N4024, MD-N4025, MD-N4031
PDF FILE


 Connect camera with WiFi video router (MST-WF12N) and
download APP to transform your iOS device into a wireless monitor and DVR .

 1/4" WXGA HD 720P camera
 Scan mode: progressive
 Pixel:
1280 x 720 /YUV 10fps/ MJPEG 30fps/ H.264 24fps
640 x 400 30 fps, 320 x 200 30 fps
 pixel size: 3 um x 3 um
 Image area: 3888 um x 2430 um
 LENS: f 4.0mm/F2.0 (4F lens)
 S/N ratio: 39dB
 Sensitivity: 3300mV/(Lux)
 Dark current: 20 mV/Sec
 Power: DC 5V (130 mA)
 Dimension(mm): (D)10.3 x 40.7

Hi-res. download Catalogue Catalogue

1/4" color CCIQ IV camera  MO-S7510-4C, MO-S7510-3F,MO-S7510-3C, MO-S7710-4C, MO-S7710-3D
PDF FILE

 1/4" Color CCIQ IV Camera(MO-S7510)
 1/4" B/W CCIQ IV Camera(MO-S7710)
 Pixel: 648(H) x 488(V) (NTSC-EIA / PAL-CCIR)
 Pixel size: 5.6 um x 5.6 um
 Effective image area: 3.63 mm x 2.73 mm x 4.54 mm
 Resolution:
horizontal 500 TV Line(NTSC), 560 TV Line(PAL)
 Sensitivity: 10.5 [V/Lux.sec]
 SNR: 46.2 [dB]
 Dynamic range: 65.3 [dB]
 Power: DC 5~12 V
 Dimension(mm): 11 x 11

(3GS)3.6mm/F2.0 (121)1.21mm/F2.0
(super wide angle)
(124)1.24mm/F2.0
(wide angle)
(3C)3.7mm / F2.0
(4C)4.3mm / F2.0
(3F)3.7mm / F2.0
(4F)4.3mm / F2.0
(3T)3.1mm/F3.4
(4T)3.9mm/F3.9
(3D)3.9mm/F2.8 (4G)4.0mm/F1.2 (3G)3.6mm/F2.0

Hi-res. download Catalogue Catalogue

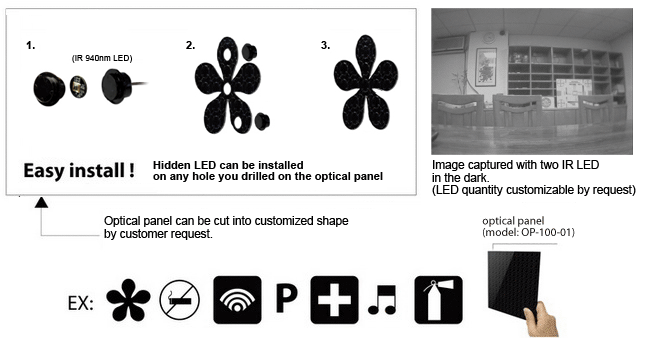

Spy mini concealed camera !!  MO-R5510SC, MO-R5710SC
PDF FILE


 1/4" CCIQIII color CSM camera (MO-R5510SC)
 1/4" CCIQIII B/W CSM camera (MO-R5710SC)
 Effective image area: 3.8(H) x 2.9(V) x 4.86(D)
 Pixel: 648 x 488 ( NTSC-EIA & PAL-CCIR )
 Horizontal 480 TV lines (MO-R5510SC)
 Horizontal 550 TV lines (MO-R5710SC)
 Image transfer rate:
 60 field/sec(EIA/NTSC), 50 field/sec(CCIR/PAL)
 0.02 Lux/ F1.2 (MO-R5510SC)
 0.006 Lux/ F1.2 (MO-R5710SC)
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47.0 [dB]
 Power: DC 5~12V (optional 3.3~5V)
 Dimension(mm): (D)10 x 8.4

Hi-res. download Catalogue Catalogue

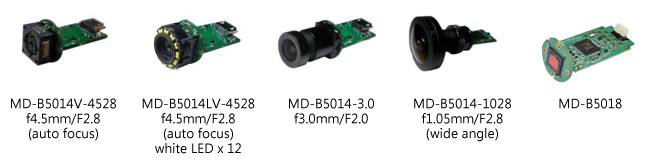

5.0 mega pixel UVC QSXGA camera module  MD-B5014-3.0 ,MD-B5014V-3828
PDF FILE


 Max. frame rate:
Full 5.0M 2592 x 1944 /15 fps,
FHD 1920 x 1080 /30 fps ,
HD 1280 x 720 /60 fps ,
VGA 640 x 480 /60 fps
 Pixel size: 1.4um x 1.4um
 Image sensor: 1/4" CCIQIII digital QSXGA cmos camera module
 Image area: 3.651 x 2.744mm
 Scan mode: progressive
 Sensitivity: 5100 e-/lux.sec
 Dynamic range: 63 dB
 UVC format: MJPEG
 Lens: f 3.0mm/F2.0 (MD-B5014-3.0)
 Lens: f 3.87mm/F2.8-auto focus (MD-B5014V-3828)
 Interface: USB 2.0 (compliant with USB video class 1.1 standard)
 Power: DC 5V (USB)/ 170mA(working) (MD-B5014-3.0)
 Power: DC 5V (USB)/ 250mA(working) (MD-B5014V-3828)
 Operating system: Windows 7, Windows 8
(windows 7 operating system in use, you need to install MJPG decoders.)
 Dimension(mm): (D) 14 x 26 (MD-B5014V-3828)

VIDEO DEMO

MD-B5014V-3828

MD-B5014-3.0

Hi-res. download Catalogue Catalogue

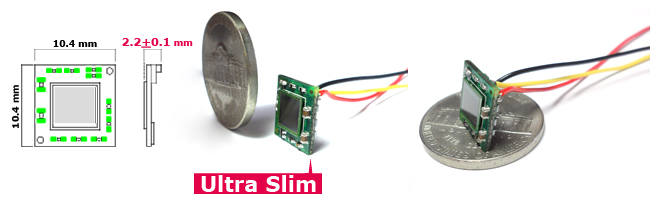

Ultra slim camera chip-scale-module!!  MO-S5555, MO-S5555-3D, MO-S5555-3X, MO-S5555-2V
PDF FILE


 1/3.7" CCIQIII color CSM camera
 Effective image area: 3.8(H) x 2.9(V) x 4.86(D)
 Pixel: 648 x 488 ( EIA/NTSC & CCIR/PAL )
 Horizontal 480 TV lines
 Image transfer rate:
 60 field/sec(EIA/NTSC), 50 field/sec(CCIR/PAL)
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47.0 [dB]
 Power: DC 5~12V
MO-S5555-2V(2.8mm F3.9)
MO-S5555-3S(3.4mm F3.4) MO-S5555-3D(3.9mm F2.8) MO-S5555-3X(3.4mm F2.8)

Hi-res. download Catalogue Catalogue

5.0 Mega pixel USB QSXGA CMOS camera module  MD-B5026-3.0 ,MD-B5026V-3828
PDF FILE


 Max. f rame rate
Full 5.0M 2592 x 1944 /15 fps ,
FHD 1920 x 1080 /30 fps ,
HD 1280 x 720 /60 fps ,
VGA 640 x 480 /60 fps
 pixel size: 1.4um x 1.4um
 Image sensor: 1/4" CCIQ III digital QSXGA CMOS camera module
 Image area: 3.651 x 2.744mm
 Scan mode: progressive
 Sensitivity: 5100 e-/lux.sec
 Dynamic range: 63 dB
 UVC format: MJPEG
 Lens: f 3.0mm/F2.0 (MD-B5026-3.0)
 Lens: f 3.87mm/F2.8-auto focus (MD-B5026V-3828)
 Interface: USB 2.0 (compliant with USB video class 1.1 standard)
 input: DC 5V (USB)/ 170mA(working) (MD-B5026-3.0)
 input: DC 5V (USB)/ 250mA(working) (MD-B5026V-3828)
 Operating system: Windows 7, Windows 8
(windows7 operating system in use, you need to install MJPG decoders.)
 Dimension(mm): 22 x 26 x 25.6 (MD-B5026-3.0)
 Dimension(mm): 22 x 26 x 7.9 (MD-B5026V-3828)
MD-B5026-3.0 MD-B5026V-3828

Hi-res. download Catalogue Catalogue

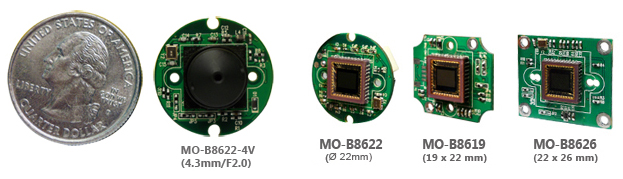

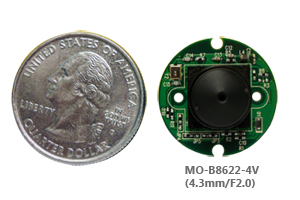

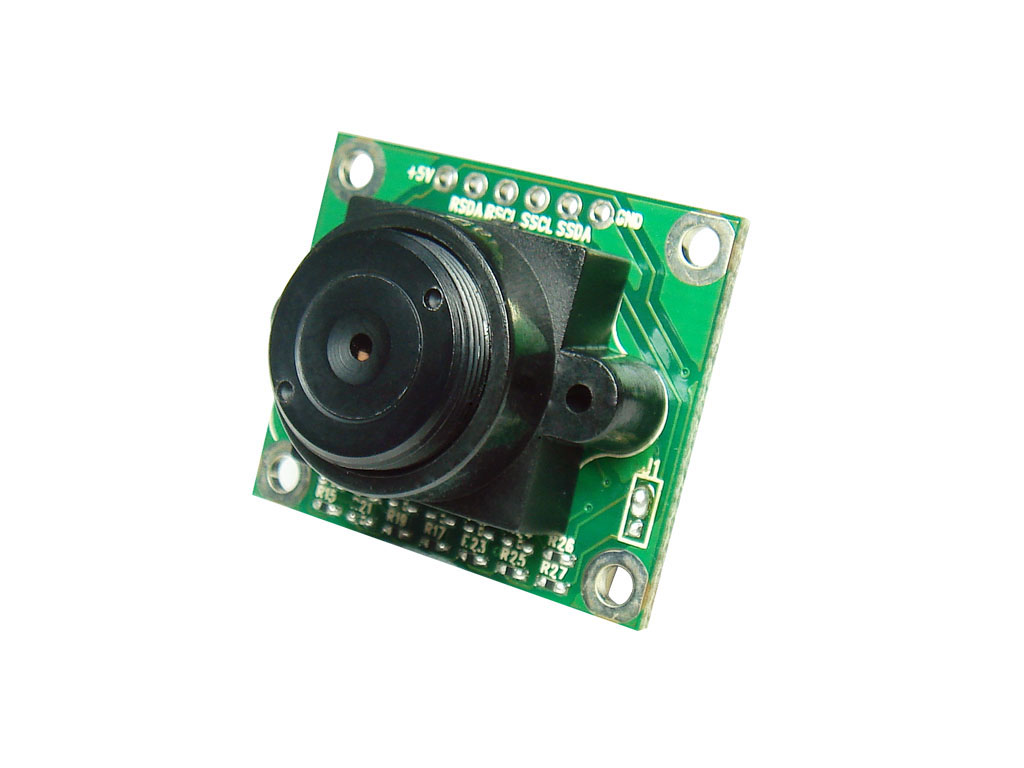

1/3" camera + UTC function !  MO-B8522, MO-B8519, MO-B8526, MO-B8722, MO-B8719, MO-B8726
PDF FILE

 1/3" color CCIQ III 960H camera (MO-B85XX)
 1/3" B/W CCIQ III 960H camera (MO-B87XX)
 Pixel: 976 (H) x 496(V)
 Pixel size:5.00 um x 7.40 um
 Effective Image Area: 4.88 mm x 3.67 mm ( Diagonal :5.97mm)
 Resolution: 710 (NTSC/EIA), 740 (PAL/CCIR) TV line
 Shutter speed: 1/60~1/200,000(NTSC/EIA), 1/50~1/170,000(PAL/CCIR)
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Power: DC 5~ 12V (80 mA-Max)
 Dimension(mm) :

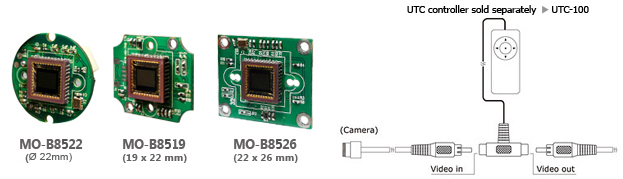

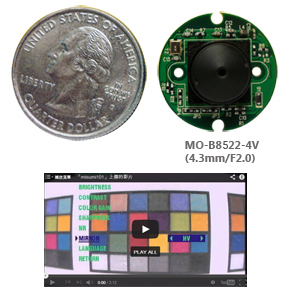

(D)22(MO-B8522, MO-B8722) / 19 x 22(MO-B8519, MO-B8719) /
22 x 26(MO-B8526, MO-B8726)
MO-B8722 compatibility replace MTV-54C6, MO-B8726 compatibility replace
MTV-54C2 , MTV- 54C0, panasonic - GP-KX121P, GP-KX121/15P,
GP-KX121/45P , GP-KX121/51P

Hi-res. download Catalogue Catalogue

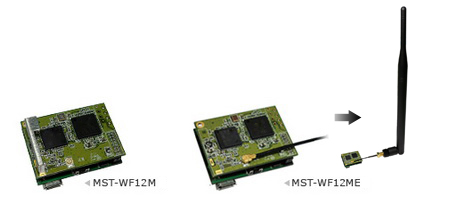

WiFi 802.11n mini UVC video router  MST-WF12M, MST-WF12ME, UCD-WF12M
PDF FILE

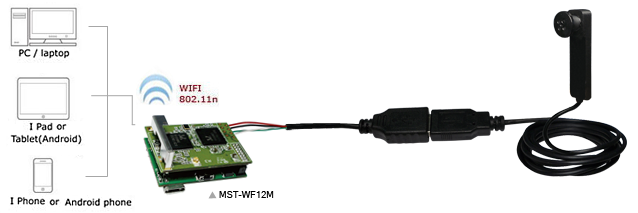

Use with UCD-210, application of video wireless WiFi transfer to "iPAD , iPhone, android tablet, android phone, PC "
 1T1R mode WAN WPS
 Wireless LAN 1T1R mode
 Date rate 802.11n: up to 300Mbps
 802.11b: 11Mbps
 802.11g: 54 Mbps
 Resolution: 640 x 480 up to 25fps, 320 x 240 up to 30fps, 160 x 120 up to 30fps, 1280x720, 1280x960, 1280x1024
 Support windows XP, WIN 7, iPad, OSX android
(Samba server support need samba client APP, audio support(RTSP)
 PCB Size Dimension(mm): 25(w) x 35(L) x 13(H)
 Power1: DC5V(1.2A) connector: micro USB
 Power2: DC 3.1~4.2V Li-ion battery
KIT:

Hi-res. download Catalogue Catalogue

1/3" color CCIQ II camera   MO-B5609-4F, MO-B5909-4F , MO-B5609-3D, MO-B5909-3D, MO-B5609-3G , MO-B5909-3G
PDF FILE


 1/3" Color CCIQ III camera sensor board(MO-B5609)
 1/3" B/W CCIQ III camera sensor board(MO-B5909)
 Memory size up to 16 K
 728(H) x 488(V) (NTSC-EIA / PAL-CCIR)
 Pixel size: 6 um x 6 um
 Resolution: 480(MO-B5609), 550 TV lines (MO-B5909)
 0.05 Lux/ F1.2
 Frame rate: 60 field/sec(NTSC-EIA ), 50 field/sec CVBS (PAL-CCIR)
 Sensitivity: 13.8 [V/Lux.sec]
 Dynamic range: 63.7 [dB]
 S/N ratio: 46.4 [dB]
 Lens: 3.9mm/F2.8(3D Lens), 4.0mm/F2.0(4F Lens), 3.6mm/F2.0(3G Lens-Micro board Lens)
 Focal distance: infinity
 Power: DC3.3~5V
 Dimension(mm): (D)8.8

Hi-res. download Catalogue Catalogue

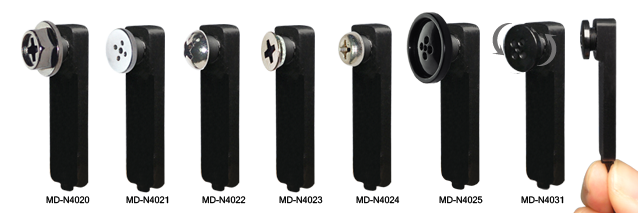

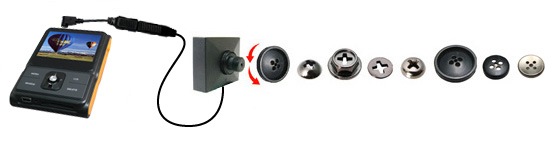

Invisible camera (with IR 940nm LED x 12)/button spy camera!!  MO-S9531U, MO-S9581U, MO-S9731U, MO-S9781U
PDF FILE

Spy invisible tool ! (with IR 940nm LED x 12), a useful spy and Easy camouflage in the dark!
 1/4" CCIQIII color camera (MO-S9531U, MO-S9581U)
 1/4" CCIQIII B/W camera (MO-S9731U, MO-S9781U)
 IR 940 nm LED x 12
 Effective image area:3.8(H) x 2.9(V) x 4.86(D)
 Pixel: 648 x 488 ( NTSC-EIA & PAL-CCIR )
 Horizontal 480 TV Lines (MO-S9531U, MO-S9581U)
 Horizontal 550 TV Lines (MO-S9731U, MO-S9781U)
 Image transfer rate: 60 field/sec (NTSC-EIA), 50 field/sec (PAL-CCIR)
 0.02 Lux/ F1.2 (MO-S9531U, MO-S9581U)
 0.005 Lux/ F1.2 (MO-S9731U, MO-S9781U)
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47.0 [dB]
 Lens: 4.0mm/F2.0
 Power: DC 5~12V
Dimension(mm):8.6 x 8.6


Hi-res. download Catalogue Catalogue

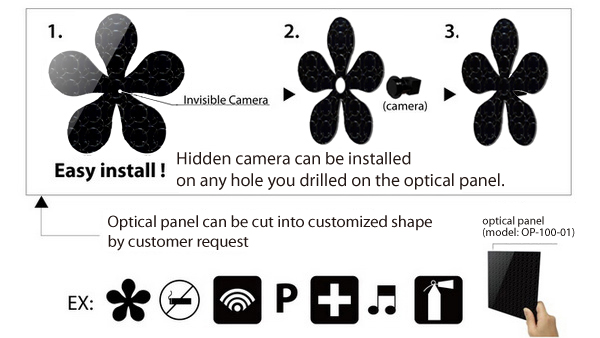

1/3" B/W CCIQ III spy mini concealed camera   MO-EZ05-3G
PDF FILE

 1/3" B/W CCIQIII spy mini concealed camera
 Memory size up to16 K
 728(H) x 488(V) (EIA / CCIR)
 Pixel size: 6 um x 6 um
 Resolution: horizontal 550 TV Lines
 0.05 Lux/ F1.2
 Frame Rate: 60 field/sec (EIA ) , 50 field/sec CVBS (CCIR)
 Sensitivity: 13.8 [V/Lux.sec]
 Dynamic range: 63.7 [dB]
 S/N ratio: 46.4 [dB]
 Lens: 3.6mm/F2.0(3G Lens)
 Focal distance: infinity
 Power: DC5~12V
 Dimension(mm): 11 x 11

Hi-res. download Catalogue Catalogue

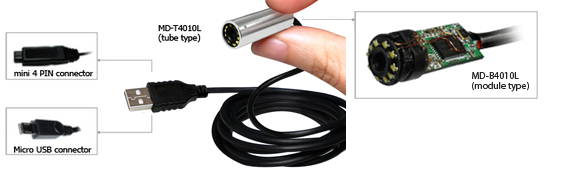

White LED x10 Mini USB Camera  MD-T4010L, MD-B4010L, MD-T4010-12120
PDF FILE

 1/4" WXGA HD 720P camera
 white light LED x 10(MO-T4010L)
 Scan mode: progressive
 Pixel:
1280 x 720 /YUV 10fps/ MJPEG 30fps/ H.264 24fps
640 x 400 30 fps, 320 x 200 30 fps
 pixel size: 3 um x 3 um
 Image area: 3888 um x 2430 um
 Lens: 3.4mm/ F5.7
 Lens: 1.21mm/F2.0 (wide angle lens)
 S/N ratio: 39 dB
 Sensitivity: 3300mV/(Lux)
 Dark current: 20 mV/Sec
 Power: DC5V, 150 mA(MO-T4010L)
 Power: DC5V, 100 mA(MO-B4010)
 Dimension(mm): (D)10 x 29.8 (tube type), (D)10 x 29.8 (module type)

Hi-res. download Catalogue Catalogue

1/3" CCIQ III 960H camera   MO-S8610-4C, MO-S8610-3F,MO-S8910-3C, MO-S8910-4C, MO-S8910-3D
PDF FILE

 1/3" Color CCIQ III 960H Camera(MO-S8610)
 1/3" B/W CCIQ III 960H Camera(MO-S8910)
 Pixel: 976 (H) x 496(V) (NTSC-EIA / PAL-CCIR)
 Pixel size: 5.00 um x 7.40 um
 Effective image area: 4.88 mm x 3.67 mm
 HI Resolution: 710 (NTSC/EIA), 740 (PAL/CCIR) TV line over
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Shutter speed: 1/60~1/200,000 (NTSC/EIA), 1/50~1/170,000 (PAL/CCIR)
 Power: DC 5~12 V
 Dimension(mm): 11 x 11
(3C)3.7mm / F2.0
(4C)4.3mm / F2.0
(3F)3.7mm / F2.0
(4F)4.3mm / F2.0
(3T)3.1mm/F3.4
(4T)3.9mm/F3.9
(3D)3.9mm/F2.8 (4G)4.0mm/F1.2 (3G)3.6mm/F2.0 (3GS)3.6mm/F2.0

Hi-res. download Catalogue Catalogue

High Quality Camera module with LED   MO-S35L-3X6 , MO-S837L-3X , MO-S937L-3X
PDF FILE

 MO-S35L-3X6  MO-S837L-3X , MO-S937L-3X

 1/4" Color CCIQ II Camera
  White LED x 10
 Pixel: 316K ( NTSC / PAL )
 Resolution: Horizontal 400 TV Lines
 Frame Rate: 60fds(NTSC), 50fds(PAL) CVBS
 Min. Illumination: 0.1 Lux/ F1.2
 Sensitivity: 3.16 [V/Lux.sec]
 Lens: 3.4mm/F6.0 (Deep focus lens)
 Power: DC 5 ~12V ( 50 mA-Max)
 Dimension(mm) : 11 mm x 11 mm

 1/4" B/W CCIQ IICamera
 IR 850nm LED X 10 --MO-S837L-3X
 IR 940nm LED x 10 --MO-S937L-3X

 Pixel: 316K ( EIA / CCIR )
 Resolution: Horizontal 400 TV Lines
 Frame Rate: 60fds(NTSC), 50fds(PAL) CVBS
 Min. Illumination: 0.06 Lux/ F1.2
 Lens: 3.4mm/F2.8 (Surveillance lens)
 Sensitivity: 3.16 [V/Lux.sec]
 Power: DC 5~12V ( 50 mA-Max)
 Dimension(mm) : 11 mm x 11 mm

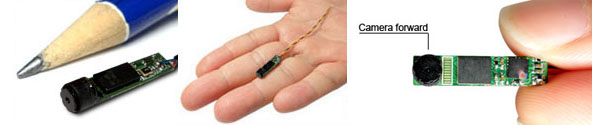

 Camera module's tiny size is 11 x 11(mm), and with white LED x 10 or IR 940nm LED or IR 850nm LED ! !
 Perfect for
1. Inspection: pipeline, sewage, air duct, machine
2. Disaster Rescue: earthquake, tornado, hurricane, snow avalanche, fire, flood
3. Insurance Claim Adjuster: inspect property damage, vehicle damage.
 MISUMI also does custom design and modification of our items to meet specific needs.

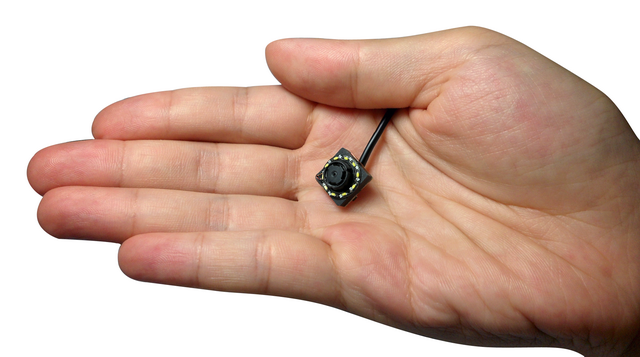

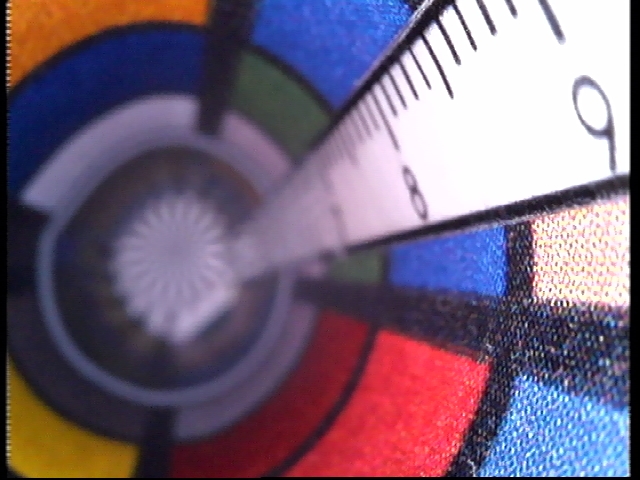

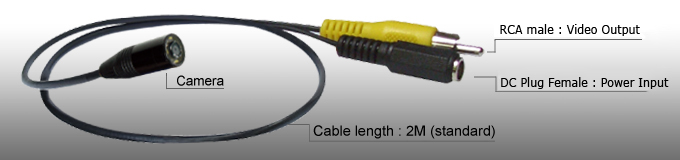

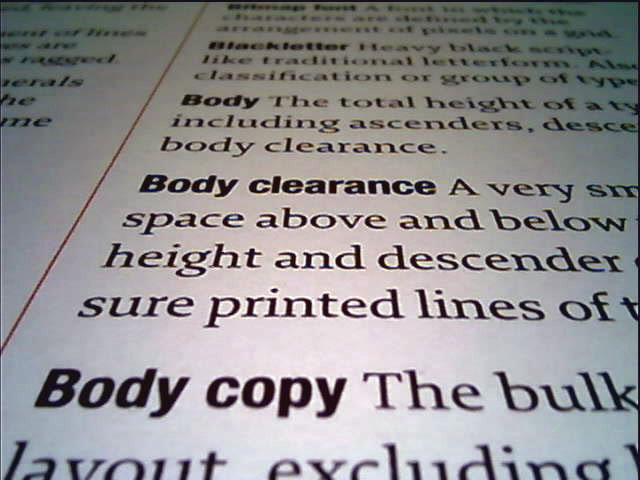

 This photo is captured by "MO-S35L-3X6 ".
 Camera with built-in deep focus lens and 10 white LED.


Hi-res. download Catalogue Catalogue

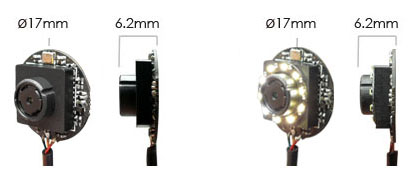

Ultra Slim camera !  MO-B3517-3X. MO-B3717-3X, MO-B3517L
PDF FILE


 Ultra slim camera!
 white LED x 10 (MO-B3517L)
 1/4" Color CCIQ II Camera (MO-B3517, MO-B3517L)
 1/4" B/W CCIQ II Camera (MO-B3717)
 Pixel : 648 x 488( NTSC-EIA / PAL-CCIR )
 Resolution : Horizontal 400 TV Lines
 Min. Illumination :0.1 Lux/ F1.2 (MO-B3517, MO-B3517L)
 Min. Illumination :0.06 Lux/ F1.2 (MO-B3717)
 Built-in Lens: 3.4mm/F2.8
 Power Supply : DC 5~12V
 Power consum. : 50 mA(Max)
 Dimension(mm) :(D) 17 mm x 6.2 mm
MO-B3517   MO-B3517L

Hi-res. download Catalogue Catalogue

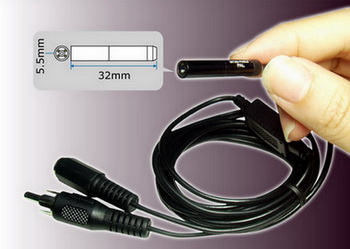

MINI-MICROPHONE  MS-8300, MS-8300F, MS-8300M, MS-8300E, MS-8300W, MS-8300P
PDF FILE

 Super tiny and power save microphone!!

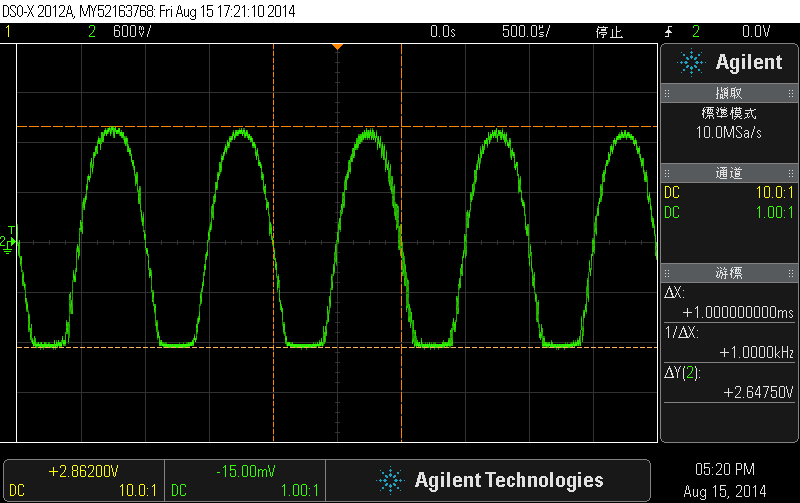

  The microphone anti-noise waveforms can completely eliminate noise.
 Frequency: 100-10000Hz
 Sensitivity(dB): -53.5
 Output Impedance([): 4.4K
 S/N ratio(dB): 64
 Power input: DC 5~12V (1.0mA)

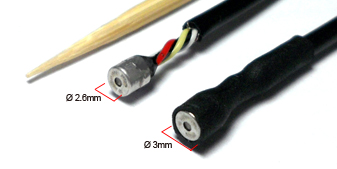

 Dimension: (D)3 x 2.5+-0.1mm
MODEL OUTPUT
MS-8300 DC plug/RCA-Female
MS-8300F DC plug/RCA-male
MS-8300M DC plug/RCA-male
MS-8300E DC plug/ DC jack / RCA- Female
MS-8300W 4 wire
MS-8300P Phone jack

Hi-res. download Catalogue Catalogue

USB 3.0 HDMI Capture Device, No compression!! NO video distortion!!  UHD-260
PDF FILE


 Almost NO latency!
 No compression!! NO video distortion!!
 Plug and Play, auto detect and direct use, no need install drivers!
 USB 3.0 (It adopts USB 3.0 interface and realizes high-speed transmission. It gets 10times faster than general USB2.0 interface.)
 UVC UAC USB video device class (driver free)
 1920x1080p 60/50/30/24 fps
 1366x768 60/30fps
 1280x720 60/50fps
 OS support: Linux, WINDOWS 7, WINDOWS 8, WINDOWS 8.1, MAC OSX 10.8, MAC OSX 10.9, New nexus7(Android 4.3)
Dimension(mm): 80 x 25 x 8 (module type), 100 x 30 x 16 (with plastic case)

Hi-res. download Catalogue Catalogue

Wireless Mobile DVR / Pocket Channel   MP-160
PDF FILE


Display Screen: 2.36 "TFT LCD Screen
Recording Mode, LIVE Streaming Mode, Snapshot(JPG)
H.264 Baseline,
D1:720x480 (30/15/10/5/1 fps) 512K~2M bps
CIF:352x240 (30/15/10/5/1 fps) 64K~512K bps
(audio) MPEG Audio Layer II; 16Kbps
File Format: AVI

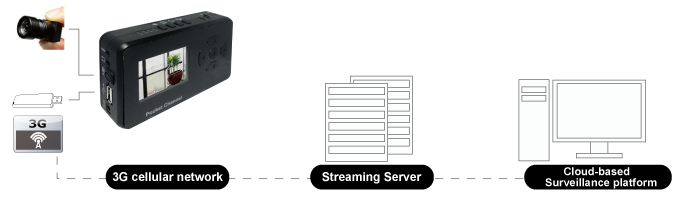

Architecture: Publish a live A/V stream to ICL Mobile Streaming Server(LIVE Streaming Mode)
Protocol: RTSP, RTP over TCP(LIVE Streaming Mode)
Storage Media:
(Internal) Build in 64MB SDAM, 16MB Flash Memory
(External) MicroSD Card, SDHC Compatible (Up to SDHC 32GB Class6)
I/O Interface:
(LAN)110/100 BASE-T RJ45 LAN Port (to RJ45 Adapter Cable)
(Video)1ch NTSC/PAL Analog Video Signal in via 4pin R-type Connector
(Audio)Analog Audio Signal in /Microphone Jack x 1; Headphone Jack x 1
(USB)USB 2.0 Support USB OTG/ Peripheral mode
Wireless Communication: 3G(UMTS/HSDPA)
Operating Voltage: DC 5V
Battery Type: Rechargeable Li-ion Battery 3.7V 4000mAh
Dimension(mm): 74(H) x 120(W) x 33(D)

Hi-res. download Catalogue Catalogue

1/3.7" Color CCIQ III Camera   MO-S5588-3D, MO-S5588-2V, MO-S5588-3T, MO-S5588-4T, MO-S5588-2S, MO-S5588-3K
PDF FILE


1/3.7" Color CCIQ IV Camera(MO-S5588)
1/3.7" B/W CCIQ IV Camera(MO-S5788)
Pixel: 648(H) x 488(V) (NTSC-EIA / PAL-CCIR)
Pixel size: 6 um x 6 um
Effective image area: 3.8(H) x 2.9(V) x 4.86(D)
Resolution: horizontal 480 TV Line(MO-S5588) , 550 TV Line(MO-S5788)
Sensitivity: 8.2 [V/Lux.sec]
SNR: 47 [dB]
Dynamic range: 63.3 [dB]
Power: DC 5~12 V
Dimension(mm): 8.6 x 8.6
3D LENS
(3.9mm/F2.8)
2V LENS
(2.8mm/F3.9)
3T LENS (3.4mm/F3.4)
4T LENS (3.9mm/F3.9)
2S LENS (2.1mm/F2.5)
2B LENS (2.69mm/F2.0)
3K LENS
(2.8mm/F3.9)


Hi-res. download Catalogue Catalogue

Industrial inspection camera  MO-T5516L, MO-T85716L, MO-T95716L, MO-T8516L, MO-T88716L, MO-T98716L
PDF FILE

MO-T5516
 1/3.7" CCIQ III
 LED: white LED x 3 (standard)
IR 940nm, IR 850nm LED x 3(ordering in advance)
 Pixel: 648(H) x 488(V) (NTSC / PAL)
 Pixel Size: 6 um x 6 um
 Resolution: 480 TV Lines
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Lens: 3.4mm / F 3.4
 Power Consumption: 5~12V
 Dimension(mm): 16(D) x 30
MO-T8516
 1/3" CCIQ III 960H
 LED: white LED x 3 (standard)
IR 940nm, IR 850nm LED x 3(ordering in advance)
 Pixel: 976 (H) x 496(V) (NTSC / PAL)
 Pixel Size: 5.00 um x 7.40 um
 Resolution: 710 (NTSC), 740 (PAL) TV line over
 Sensitivity: 11.4 [V/Lux.sec]
 Dynamic range: 63.5 [dB]
 SNR: 46.4 [dB]
 Shutter speed:
1/60~1/200,000 (NTSC), 1/50~1/170,000 (PAL)
 Lens: 3.4mm / F 3.4
 Power: DC 5~12 V
 Dimension(mm): 16(D) x 30

Hi-res. download Catalogue Catalogue

1/3" CCIQ III 960H camera   MO-P8550G, MO-P8750, MO-P8650G, MO-P8950
PDF FILE


 MO-P8550, MO-P8750 with UTC function
 1/3" Color CCIQ III 960H (MO-P8550, MO-P8650)
 1/3" B/W CCIQ III 960H (MO-P8750, MO-P8950)
 Pixel: 976 (H) x 496(V) (NTSC-EIA / PAL-CCIR)
 Pixel size: 5.00 um x 7.40 um
 Effective image area: 4.88 mm x 3.67 mm
 HI Resolution:
710 (NTSC/EIA), 740 (PAL/CCIR) TV line over
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Shutter speed:
1/60~1/200,000 (NTSC/EIA), 1/50~1/170,000 (PAL/CCIR)
 Power: DC 5~12 V
 Dimension(mm): 11 x 11

MO-P8X50G
3.6mm/F2.0
MO-P8X50
4.3mm/F2.0

Hi-res. download Catalogue Catalogue

1/3.7" Color CCIQ III Camera   MO-S5508U-3M, MO-S5508LU-3X6
PDF FILE

 Ultra Slim
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Effective Pixel: 648(H) x 488(V)(NTSC / PAL)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 480 TV Lines
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Focal distance: infinity
 Power Consumption: DC5~12V
 Dimension: 8 x 13 x 5.1mm
MO-S5508LU
with LED x 8
3.4mm/F6.0

MO-S5508U

3.4mm/F2.8



Hi-res. download Catalogue Catalogue

1/2.7" Color CMOS Camera  MD-B2020-6B
PDF FILE

 Effective Image area(mm): 5.856 x 3.276
 Pixel Size(um): 3 x 3
 Image sensor: 1/2.7" Color
 Image Transfer Rate:
 1920x1080/30fps
 Dynamic range: 69 dB @ 8x gain
 Sensitivity: 3300 mV/(Lux-sec)
 Lens: 6.0mm/F2.0(M12/top7xP0.5)
 Power: DC5V, 150mA(Max)
 Dimensions(mm): 20x48
 Cable length(cm): 200
 Connector: USB 2.0 Atype

Hi-res. download Catalogue Catalogue

USB 3.0 SDI Capture Device  USD-250M
PDF FILE

 Real Time, Almost NO latency!
 USB 3G-SDI /HD- SDI grabber stick.
 Driver free (USB Video Class) for any OS (win8,win8.1, MAC OS)
 3G-SDI /HD-SDI input, USB UVC output
 SDI input / UVC output (YUV):
1920x1080P 60fps / 1920x1080p 60fps
1920x1080P 50fps / 1920x1080p 50fps
1280x720P 60fps / 1280x720p 60fps
1280x720P 50fps / 1280x720p 50fps

 Software support
 MAC OSX: embedded MAC AP: Quicktime player, photo boolth, skype QQ/ adobe video stream (youtube / ustream and etc)
VJ (AVENUE, modul8, istopmotion and etc) other AP that can support UVC webcam.
 Windows: AMCAP. VLC ,KMplayer ,Windows SKYPE, QQ
 Video source input:3G-SDI/HD-SDI
 A/V output: USB 3.0 (UAC/ UVC)
 Time latency: less than 50ms (test under windows amcap)
 Power: max 460mA/average 400~450mA
 Dimension(mm): 80 x 60 (module type)
Hi-res. download Catalogue Catalogue
