Voltage Regulator Board
Voltage Step-Down Transformer   VT-0528S , VT-0533S
VT-0528S
 Power Input: DC 2.9 ~5V
 Power output: DC 2.8V
 Power Current: 150 mA(Max)

VT-0533S
 Power Input: DC 3.4 ~5V
 Power output: DC 3.3V
 Power Current: 150 mA(Max)
Voltage Step-Down Transformer   VT-12033-04, VT-1205-04
PDF FILE
VT-12033-04
 Power Input DC 5~ 12V
 Power Output DC 3.3V
 Power Current 100mA(Max)

VT-1205-04
 Power Input DC 7~ 12V
 Power Output DC 5V
 Power Current 200mA(Max)
Hi-res. download Catalogue Catalogue
Voltage Step-Down Transformer   VT-1205
 Power input: DC 12V
 Power output: DC 5V
 Power Current: 300mA(MAX)
Voltage Step-Down Transformer   VT-3005, VT-3028
PDF FILE
VT-3005
 Power input: DC 30V
 Power output: DC 5V

VT-3028
 Power input: DC 30V
 Power output: DC 2.8V

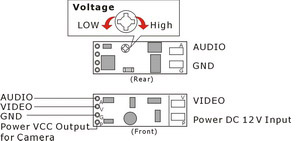

Adjustable Voltage Step-Down Transformer   VT-1204V, VT-1202V
VT-1204V
 Power Input: DC 5.3~12V
 Power Output: DC 2.8V~4.2V
 Power Current: 200mA(Max)

VT-1202V
 Power Input: DC 3.6~12V
 Power Output: DC 2.8V
 Power Current: 200mA(Max)
Voltage Step-Down Transformer   VT-12033X
 Power Input DC 5~12 V
 Power Output DC 3.3V
 Power Current 500mA(Max)
 Dimensions(mm): 24x7x5.4

Voltage Step-Down Transformer   VT-12033
 Power Input: DC 4~12V
 Power Output: DC 3.3V
 Power Current: 200mA(Max)
 Dimensions(mm): 7 x 24
Hi-res. download Catalogue Catalogue
Voltage Step-down Transformer   VT-1202833
 Power Output 1:DC 3.3V 200mA Max
 Power Output 2:DC 2.8V 150mA Max
 Power Input DC 5~12 V
 with 2 ON/OFF switch.
Hi-res. download Catalogue Catalogue
Voltage Step-up Transformer   VT-0312-200, VT-0512-300
PDF FILE
VT-0312-200
 Power Input: DC 3V, 900mA(Max)
 Power Output: DC 12V, 200mA(Max)

VT-0512-300
 Power Input DC 5V, 900mA(Max)
 Power Output DC 12V, 300mA(Max)


Hi-res. download Catalogue Catalogue
Recharge Board   BC-100
 Power Convertor & Chager
 Power Output: 380mA for DC 5V
 Dimensions(mm): 25 x 43 x 10.5
Voltage Step-up Transformer   VT-0305, VT-0306, VT-0309, VT-0312
VT-0305
 Power Input: DC 2.7~5V
 Power output: DC 5V
 Power Current: 200mA(MAX) (at DC 3V in)

VT-0306
 Power input: DC 2.7~5V
 Power output: DC 6V
 Power Current 180mA(MAX) (at DC 3V in)

VT-0309
 Power input: DC 2.7~5V
 Power output: DC 9V
 Power Current: 120mA(MAX) (at DC 3V in)

VT-0312
 Power input: DC 2.7~5V
 Power output: DC 12V
 Power Current: 70mA(MAX) (at DC 3V in)
Hi-res. download Catalogue Catalogue
Voltage Step-Down Transformer   VT-1205P-USB ,VT-1205P-USB-01
 Power Input DC 12V
 Power Output DC 5V
 Power Current 200mA(Max)
 DC Female 5.5/2.1 mm to USB A female
 cable length: 15cm (VT-1205P-USB)
 cable length: 30cm (VT-1205P-USB-01)
Recharge Board   BC-200
 Power Convertor & Chager
 Power Output: 750mA(max) for DC 5V
 Dimensions(mm): 18 x 23 x 4.5
Voltage Step-up Transformer   VT-0305P
VT-0305P
 Power input: DC 2.7~5V
 Power output: DC 5V
 Power Current: 200mA(MAX) (at DC 3V in)

VT-0306P
 Power input: DC 2.7~5V
 Power output: DC 6V
 Power Current: 180mA(MAX) (at DC 3V in)

VT-0309P
 Power input: DC 2.7~5V
 Power output: DC 9V
 Power Current: 120mA(MAX) (at DC 3V in)

VT-0312P
 Power input: DC 2.7~5V
 Power output: DC 12V
 Power Current: 70mA(MAX) (at DC 3V in)
Step-Down Regulator Cable   AF-1205
PDF FILE
 Power Input: DC 12V
 Power output: DC 5V
 Power Current: 300mA(MAX)
Voltage Transformer   VT-1205Y-USB
PDF FILE
 Power Input" DC 12V Female 5.5/2.1 mm
 Power Output: DC 12V male 5.5/2.1 mm
 Power Output: DC 5V MINI USB
 Power Current: 900mA(Max)

Recharge Board   BC-100
  INPUT DC 2.7~5V
 OUTPUT 1 220mA for DC 5V
 OUTPUT 2 140mA for DC 12V
(TWO OUTPUT)
 IDEA FOR LI-BATTERY 3.7V UP TO DC 12V & 5V FOR SECURITY DEVICE APPLICATION.

Hi-res. download Catalogue Catalogue
Recharge Board   BC-200
 POWER CONVERTOR & CHAGER
 POWER OUTPUT:750mA(max) for DC 5V
 Dimensions:18x23x4.5 mm
Power Pack   PP-001
PDF FILE
 "AA" Battery Power Pack
 Power Source: DC 1.5V "AA" Battery or "AA" Rechargeable Battery x 8
 Power Output: DC 12V
7" TFT LCD Color Monitor   HS-070
PDF FILE
 7" TFT LCD Color Monitor
 Display Resolution: 144 (H) x 234 (V)
 Operation Voltage: DC 11~15V
 Dimensions(mm): 192 x 127 x 28
 Weight: 540g
Voltage Transformer Cable   VT-1205P-IRIS-01
PDF FILE
 Voltage Step-Down Transformer
 Power input: DC 9V (4 PIN male)
 Power output: DC 5V (4 PIN female)
 Power current: 150 mA (Max)
 Cable length(cm): 15 (total)

Hi-res. download Catalogue Catalogue
Voltage Transformer   VT-2412
PDF FILE
 Power Input: DC 24V
 Power Output: DC 12V
 Dimensions(mm): 22 x 8 x 6.5
