CMOS >>CVBS Signal >>Board

1/3" Color CCIQ III Camera MO-B8632-3G, MO-B8532-3G

▪ 1/3" color CCIQ III 960H camera
▪ Pixel: 976 (H) x 496(V)
▪ Pixel size: 5.00um x 7.40um
▪ Effective Image Area: 4.88mm x 3.67mm ( Diagonal: 5.97mm)
▪ Resolution: 710 (NTSC/EIA), 740 (PAL/CCIR) TV line
▪ Shutter speed: 1/60~1/200,000(NTSC/EIA), 1/50~1/170,000(PAL/CCIR)
▪ Dark signal: 34.0 [mV/sec]
▪ Sensitivity: 11.4 [V/Lux.sec]
▪ SNR: 46.4 [dB]
▪ Dynamic range: 63.5 [dB]
▪ Lens: 3.6mm / F 2.0
▪ Power: DC 5~ 12V (80 mA-Max)
▪ Dimensions(mm): 32 x 32

1/3" Color CCIQ III Camera MO-B8622, MO-B8619, MO-B8626

▪ 1/3" color CCIQ III 960H camera
▪ Pixel: 976(H) x 496(V)
▪ Pixel size: 5.00 um x 7.40 um
▪ Effective Image Area: 4.88 mm x 3.67 mm (Diagonal: 6.1mm)
▪ Resolution: 710 (NTSC), 740 (PAL) TV line
▪ Shutter speed: 1/60~1/200,000(NTSC), 1/50~1/170,000(PAL)
▪ Dark signal: 34.0 [mV/sec]
▪ Sensitivity: 11.4 [V/Lux.sec]
▪ SNR: 46.4 [dB]
▪ Dynamic range: 63.5 [dB]
▪ Power: DC 5~12V (80mA-Max)
▪ Dimensions(mm): (D)22(MO-B8622) / 19 x 22(MO-B8619) / 22 x 26(MO-B8626)
960H Hi resolution camera with UTC function,MO-B8622,MO-B8619,MO-B8626

960H Hi resolution camera with UTC function,MO-B8622,MO-B8619,MO-B8626

Ultra-compact CCD Color Board Camera GP-KX121E, GP-KX121/15E, GP-KX121/45E, GP-KX121/51E

▪ 1/4" Type Color CCD (Medium Resolution)
▪ Pixel: PAL-512 x 582
▪ Min. lllumination: 0.2Lux / F1.2
▪ Resolution: 330 TV Lines
▪ Electronic shutter: 1/60~1/96.000 sec
▪ Ultra Small 22mm(H) x 26mm(W) package
▪ Power: DC 5V 125mA(max.)
▪ Integrated with single chip digital signal processing (DSP)
▪ MCM PCB design offers ultra-compact thin size, light weight, and high durability

Panasonic

GP-KX121E , GP-KX121/15E , GP-KX121/45E , GP-KX121/51E

1/3" Color &B/W CCIQ III Camera SENSOR BOARD MO-B5610, MO-B5910

▪ 1/3" Color CCIQ III Camera SENSOR BOARD(MO-B5610)
▪ 1/3" B/W CCIQ III Camera SENSOR BOARD(MO-B5910)
▪ Pixel: 728(H) x 488(V)(NTSC-EIA/ PAL-CCIR)
▪ Resolution: Horizontal 480 TV Lines(MO-B5610)
▪ Resolution: Horizontal 550 TV Lines(MO-B5910)
▪ Frame Rate: 60 field/sec(NTSC-EIA), 50 field/sec (PAL-CCIR)CVBS
▪ Min. Illumination: 0.05Lux /F 1.2 20IRE
▪ Sensitivity: 13.8 V/Lux.sec
▪ Dynamic Range: 46.4 [dB]
▪ Power input: DC 3.3~5V(100mA-max)
▪ Dimension(mm): 10.4 x 10.4 x 2.6mm

1/3" CCIQ Color Camera Board MO-B2626-4F

▪ 1/3" Color CCIQ Camera Board
▪ Pixel: 510 x 492 (NTSC), 628 x 582 (PAL)
▪ 380 TV Lines
▪ Lens: 4.3mm/F2.0
▪ Min. Illumination: 0.1Lux / F1.2
▪ Power: DC 5-12 V

1/3" Color CCIQ Camera MO-B2628GA

▪ HI-Resolution　
▪ 250K (NTSC), 360K (PAL)
▪ 0.2Lux/F1.2
▪ 380TV Lines over
▪ Audio
▪ Power: DC 3.3~12V
▪ Dimensions(mm): 28 x 28 x 23

1/4" CCIQ II Mini Camera MO-B2519

▪ 1/4" Color CCIQ II Camera
▪ Pixel: 648(H) x 488(V) (NTSC / PAL)
▪ HI Resolution: Horizontal 400 TV Lines
▪ Image Transfer Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
▪ Min. Illumination: 0.06Lux /F 1.2 20IRE
▪ Power: DC 3.3~5V
▪ Dimensions(mm): 22 x 19

1/3" Color CMOS Camera MO-B2632GA

▪ HI resolution
▪ 250K(NTSC), 360K(PAL)
▪ 0.2Lux/F1.2
▪ 380TV Lines over
▪ Audio
▪ Power: DC 3.3~12V
▪ Dimensions(mm): 32 x 32 x 23

High Sensitivity 1/3" Color CMOS Camera Board MO-B2639GTA, MO-B2620P

▪ CCIQ High Sensitivity NEW CMOS Sensor
▪ NTSC-250K, PAL-360K
▪ 0.2Lux/ F1.2
▪ 380TV Lines over
▪ Sensitivity boost (+42 dB)
▪ With Micro controller storage
▪ Firmware enhance sharpness and image edge,
▪ Automatic exposure/gain with 16 zone control
▪ Shutter Speed: 1/50-1/12,5000 Sec.
▪ Power Source: DC 9V(standard)


MO-B2639GTA ▪ With IR LED x 6 & CDS ▪ W/microphone ▪ Dimensions(mm): 39 x 28 x 30	MO-B2639GTA ▪ Dimensions(mm): ∮20 mm

360 Degree HD Video Conferance Camera Module MD-VC100M

▪ Resolution: 1280x720 MJPEG
▪ Frame Rate: 30fps
▪ Video format: MJPG
▪ Lens: 180 degree (fisheye lens)
▪ Focal distance: infinity
▪ Power: 1.063A@5V, 200mA(Max)
▪ Power Consumption: 5315mW
▪ Dimensions(mm): 40(W)x45(L)
▪ Connector: USB 2.0 (A type/Full Speed)

New CCIQ Camera Board MO-B8020

New CCIQ Camera Board
▪ 1/4" Color CCIQ Camera
▪ Pixel: 640 x 480 (NTSC/PAL)
▪ 380 TV Lines
▪ Lens: 3.9mm / F2.8
▪ 0.3Lux / F1.2
▪ Power: DC 5V
▪ Dimensions(mm): (D)20
▪ Automatic image control functions including:
Exposure Control (AEC)
Gain Control (AGC)
White Balance (AWB)

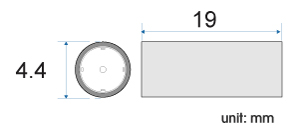

New CCIQ Mini Camera MO-B8019-4H, MO-B8019-3T

▪ 1/4" Color CCIQ Camera
▪ 640x480 300K (PAL)
▪ 380 TV Lines
▪ 0.3 Lux/ F1.2
▪ 60 field/sec(NTSC) , 50 field/sec(PAL)
▪ 4.5mm/F2.8 (4H)pin hole Lens
▪ 3.1mm/F3.4 (3T)pin hole Lens
▪ Power Supply: DC 3.3V
▪ Dimensions(mm): 19 x 22 x 8.3


MO-B8019-4H	MO-B8019-3T

1/4" Color CCIQ III Camera MO-B5526G

▪ Effective Image Area: 3.8(H) x 2.9(V) x 4.86(D)
▪ Image circle: 4.86mm
▪ Effective Pixel: 648(H) x 488(V)
▪ Pixel Size: 6 um x 6 um
▪ Resolution: Horizontal 480 TV Lines
▪ 0.006 Lux/ F1.2
▪ Sensitivity: 8.2 [V/Lux.sec]
▪ Dynamic Range: 63.3 [dB]
▪ S/N ratio: 47 [dB]
▪ 3.7 mm/F2.0 micro board lens
▪ Focal distance: infinity
▪ Power: DC 5 -12V
▪ Dimensions(mm): 22 x 26

1/4" Color CCIQ II Camera MO-B3520

▪ 1/4" Color CCIQ II Camera
▪ 648 x 488 (NTSC/PAL)
▪ 0.1 Lux/ F1.2
▪ 400TV Lines over
▪ Frame Rate: 60 field/sec (NTSC)
▪ Power: DC 5~12V
▪ Dimensions(mm): 17.5 x 17.5

High Sensitivity 1/3" Color CMOS Camera MO-B1639GDA

NEW CCIQ II Camera Board
▪ High Sensitivity 1/3" Color CMOS Camera
▪ Pixel: 510 x 492( NTSC )/ 628 X 582(PAL)
▪ 380 TV Lines over
▪ Min. Illumination: 1Lux/ F1.2
▪ Lens: 4.3mm/ F2.0 (Micro Board Types)
▪ With Microphone
▪ With 6 x white LED & CDS
▪ Power: DC 9V

1/3" Camera + UTC Function ! MO-B8522, MO-B8519, MO-B8526, MO-B8522, MO-B8519, MO-B8526

▪ 1/3" color CCIQ III 960H camera (MO-B85XX)
▪ Pixel: 976 (H) x 496(V)
▪ Pixel size: 5.00 um x 7.40 um
▪ Effective Image Area: 4.88 mm x 3.67 mm (Diagonal: 6.1mm)
▪ Resolution: 710 (NTSC), 740 (PAL) TV line
▪ Shutter speed: 1/60~1/200,000(NTSC), 1/50~1/170,000(PAL)
▪ Dark signal: 34.0 [mV/sec ]
▪ Sensitivity: 11.4 [V/Lux.sec]
▪ SNR: 46.4 [dB]
▪ Dynamic range: 63.5 [dB]
▪ Power: DC 5~12V (80mA-Max)
▪ Dimensions(mm) :
(D)22(MO-B8522) / 19 x 22(MO-B8519) / 22 x 26(MO-B8526)
MO-B8522 compatibility replace MTV-54C6, MO-B8726 compatibility replaceMTV-54C2 , MTV- 54C0, panasonic - GP-KX121P, GP-KX121/15P, GP-KX121/45P , GP-KX121/51P

MO-B8522 compatibility replace MTV-54C6, MO-B8726 compatibility replaceMTV-54C2 , MTV- 54C0, panasonic - GP-KX121P, GP-KX121/15P, GP-KX121/45P , GP-KX121/51P

NEW CCIQ III CAMERA BOARD MO-B4639GTA-P

▪ 1/3" Color CCIQ III Camera
▪ LED x 6
▪ Pixel: 728(H) x 488(V)
▪ Resolution: Horizontal 480 TV Lines
▪ Frame Rate: 60 field/sec 50 field/sec CVBS
▪ Minimum illumination: 0.05Lux F# 1.2 20IRE
▪ Sensitivity:13.8 V/Lux.sec
▪ Dynamic Range : 63.7 [dB]
▪ SNR : 46.4 [dB]
▪ LENS: f3.8mm/F#2.0 M12 type Lens
▪ Power :5~12(190~90mA)
▪ Dimension(mm) : 28mm x 39 mm x 30mm(H)
▪ Net Weight : 20g

1/3.7" COLOR CCIQ III Genlock Camera MO-B6588

▪ 1/3.7" CCIQIII color Genlock Camera
▪ Effective image area:3.8(H) x 2.9(V)X4.86(D)
▪ Effective pixel: 648(H) x 488(V)(EIA / CCIR)
▪ Pixel size: 6 um x 6 um
▪ Resolution: horizontal 480 TV Lines
▪ 0.02 Lux/ F1.2
▪ Sensitivity: 8.2 [V/Lux.sec]
▪ Dynamic range: 63.3 [dB]
▪ S/N ratio: 47 [dB]
▪ Power: 3.3V(100mA)
▪ Dimension(mm): 8x8

1/4" Color CMOS Camera MO-B35519

▪ 1/4" color CCIQ II camera
▪ Pixel Size: 5.6 x 5.6um
▪ Effective Image Area: 3.6288 x 2.7328mm
▪ Pixel: 648 x 488 (NTSC/PAL)
▪ Sensitivity: 12.5 [V/Lux.sec]
▪ Image Transfer Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
▪ Lens: 3.6mm/F2.0
▪ Dimension(mm): (D)22x19

1/3.7" Color CCIQ Camera MO-B5511-4H, MO-B5511-2ES

▪ Pixel: 648(H) x 488(V) (NTSC/PAL)
▪ Pixel size: 6 um x 6 um
▪ Effective image area: 3.8 mm x 2.9 mm x 4.86 mm
▪ Resolution: 480 TV Line(NTSC / PAL)
▪ Sensitivity: 8.2 [V/Lux.sec]
▪ SNR: 47 [dB]
▪ Dynamic range: 63.3 [dB]
▪ Lens:
MO-B5511-4H: 4.5mm / F2.8(63 degree)
MO-B5511-2ES: 2.3mm/F2.6 (120 degree)
▪ Power: DC 5~12 V
▪ Dimension(mm):10.7x10.7
