CMOS >>CVBS Signal >> Bullet Camera
MINI Bullet Camera MO-R3512C
 1/4" Color CCIQ II Camera
 400 TV Lines
 Pixel: 648 x 488 (NTSC/PAL)
 0.1 Lux/ F1.2
 60 field/sec (NTSC) , 50 field/sec (PAL)
 S/N Ratio:50 dB
 Lens: 35mm/F2.0
Power: DC 5~12 V 100mA
Dimension(mm): (D)12 x 48-Camera, (D)25 x 23-Bracket
HI-RES. CMOS bullet camera, with UTC function MO-5058-4V , MO-5058-16
with UTC function: adjust camera Shutter , AGC, Sensitivity, Exposure, VLC, White Balance, Brightness, Contrast, Color Gain, Sharpness, Noise Reduce, OSD color, Mirror, Language
 1/3.56" Color CCIQ
 Effective pixel array: 712x552 (640x480 output pixel array)
 Resolution: 480 TV Lines
 Lens: 4.3mm/F2.0 (Super Cone M12)(Model: MO-5058-4V)
 Lens: 16mm/F2.0 (Super Cone M12)(Model: MO-5058-4V)
 Sensitivity: 16 [V/Lux.sec]
 DC 5-12 V ,80mA
 Dimension:
(D)15.2 x 68.5mm (Model: MO-5058-4V)
(D)15.2 x 80mm (Model: MO-5058-16)
1/3.7" COLOR CCIQ III Camera MO-S5588-30C
PDF FILE
 Effective image area: 3.8(H) x 2.9(V)X4.86(D)
 Effective pixel: 648(H) x 488(V)(EIA/CCIR)
 Pixel size: 6um x 6um
 Resolution: horizontal 480 TV Lines
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Lens: 30mm/F2.5 (cone type)
 Focal distance: infinity
 Power: 5~12V(100mA)
 Dimensions(mm): (D)8.6
1/4" Mini Color CCIQ Camera MO-R3588GA
  1/4" Color CCIQ Camera
  648 x 488(NTSC & PAL)
  0.1Lux/F1.2
  400TV Lines over
  60 field/sec (NTSC) , 50 field/sec (PAL)
  With 3.6 mm/F2.0 G-type Lens
  W/Microphone
  Power Source:DC 5-12V(standard)
  12mm x 30mm (Camera dimension)
  Ultra mini color camera

CCIQ II Mini Waterproof IP 67 Bullet Camera MO-R3511G , MO-R3511P, MO-R3512 , MO-R3513
 1/4" Color CCIQ II Camera
 Pixel :648 x 488( NTSC / PAL )
 400 TV Lines
 2.28mm/ F2.0 mini board lens
 View Angle D: 158.5, H:109, V:77.6
 0.1Lux / F1.2
 DC 5-12 V
 Dimension: 11(D) x 25.5 mm (MO-R3511G)
 Dimension: 11.7(D) x 17.3 mm (MO-R3511P)
 Dimension: 13(D) x 42 mm (MO-R3512)
 Dimension: 13(D) x 30 mm(MO-R3513)

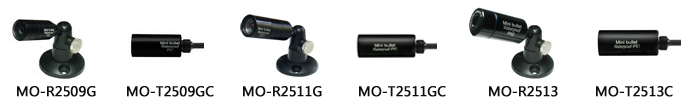

CCIQ II Waterproof IP 67 MO-R2509G , MO-R25511G , MO-R2513, MO-T2509GC, MO-T25511GC , MO-T2513C
PDF FILE
 1/4" Color CCIQ II Camera
 648x488( NTSC / PAL )
 400 TV Lines

Model: MO-R2509G, MO-T2509G
 2.28mm/ F2.0 Mirco Lens
 SUPER Wide-angle 158.5
 View Angle D: 158.5, H:109, V:77.6
 Dimensions : (D)9.3 mm Only

Model: MO-R25511G, MO-T25511GC
 3.7mm/ F2.0 Mirco Lens
 Dimensions : (D)11 mm Only

Model: MO-R2513, MO-T2513C
 4.3mm/F2.0 Pin Hole Lens
 Dimension : (D)13 mm Only



Mini CMOS bullet camera MO-R2613 , MO-R2614G, MO-R1513, MO-R1514G
 1/3" Color CMOS Camera (CCIQ)
 WaterProof
 Pixel :360K(PAL) 250K(NTSC)
 380 TV Lines
 Shutter Speed :1/50-1/125,000 Sec.
 4.3mm / F2.0
 Min. Illumination :0.2 Lux/ F1.2
 DC 5~12V/60 mA(Max)
 Diameter : Ø13.2 mm(MO-R2613), With Mic type: MO-R2613A
 Diameter : Ø14 mm(MO-R2614), With Mic type: MO-R2614A


 1/4" Color CMOS Camera (CCIQ)
 WaterProof
 Pixel :320K(NTSC)
 380 TV Lines
 Shutter Speed :1/50-1/200,000 Sec.
 4.3mm / F2.0
 Min. Illumination :1 Lux/ F1.2
 DC 5~12V/60 mA(Max)
 Diameter : Ø13.2 mm(MO-R1513) , With Mic type: MO-R1513A
 Diameter : Ø14 mm(MO-R1514) , With Mic type: MO-R1514A
1/3" CCIQ III Mini Camera MO-R6620E
 1/3" Color CCIQ III D1 Hi-Resolution Mini Camera
 With 5D OSD key
(exposure, WDR, AGC, WB, brightness, contrast, sharpness, color gain, NR, mirror)
 Pixel: 756(H) x 504(V) D1 (NTSC / PAL)
 Resolution: horizontal 520 TV lines
 Pixel size: 6.35um x 7.4um
 Effective image area: 4.80mm x 3.73mm
 Sensitivity: 11.9 [V/Lux.sec]
 Min. illumination: 0.05Lux /F 1.2 20IRE
 Max. frame rate: 30 fps CVBS (NTSC/PAL)
 Lens: 3.7mm/F2.0
 Power: DC 5~12V
 Dimensions(mm): 20(D)
1/3" Color CCIQ Camera MO-R2622

 Challenge CCD Image Quality
 Waterproof
 1/3" Color CCIQ Camera
 Shutter Speed: 1/50-1/12,5000 Sec.
 250K(NTSC), 360K(PAL)
 Lens: 4.0mm
 Dimensions(mm): 22(D)×43(H)
 Other model: MO-R1522
