PCB Layout Services

Printed circuit board (PCB) layout and design services is one of the ways.

Our 40 years of PCB manufacturing history as our engineering team has significant real world experience designing PCBs for performance and manufacturability.

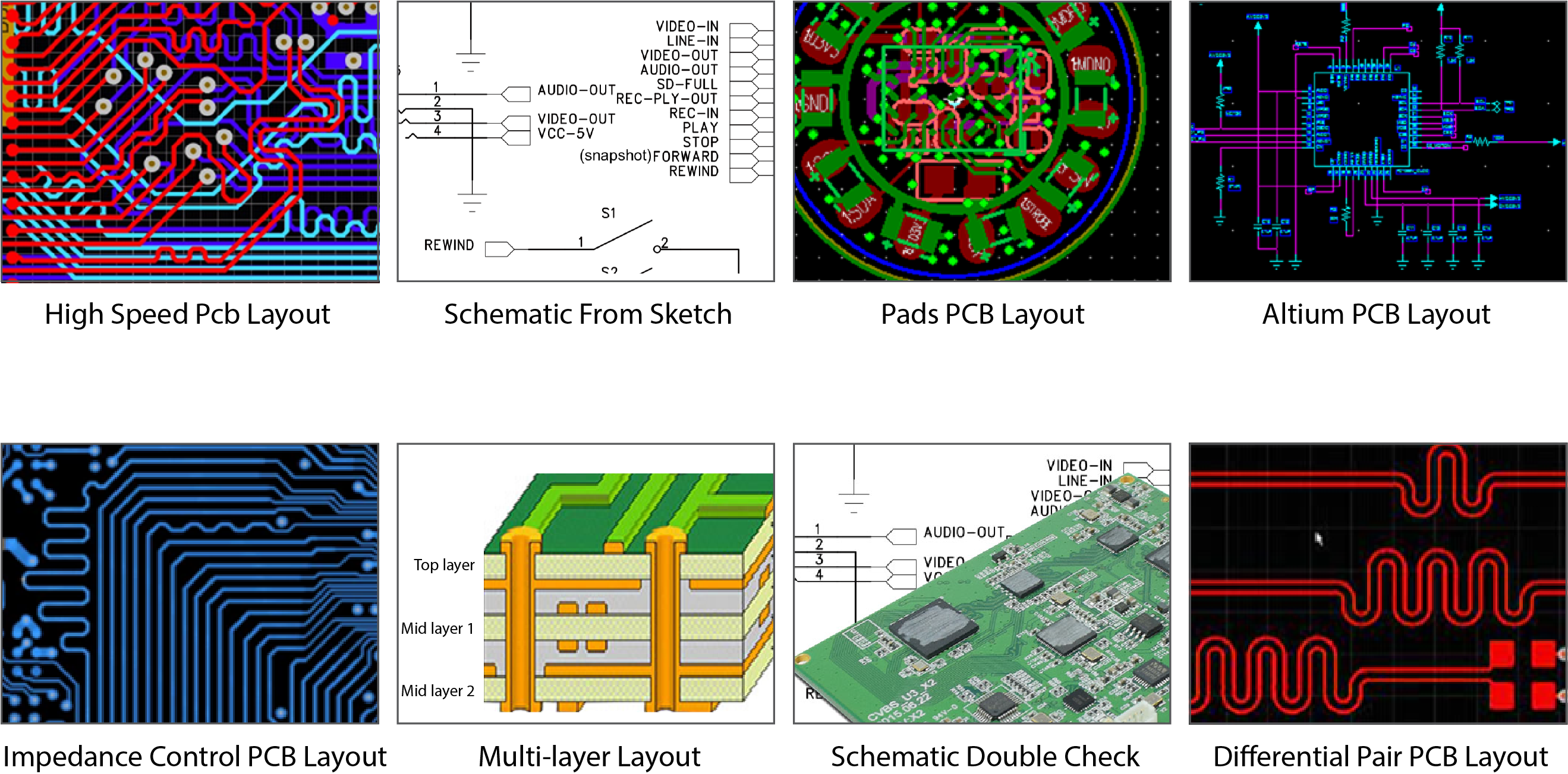

The full design flow from start to finish including:
1. Micro BGA / Blind and Buried Vias / Micro Via
2. Schematic Capture
3. Library Development
4. Rules Driven Designs

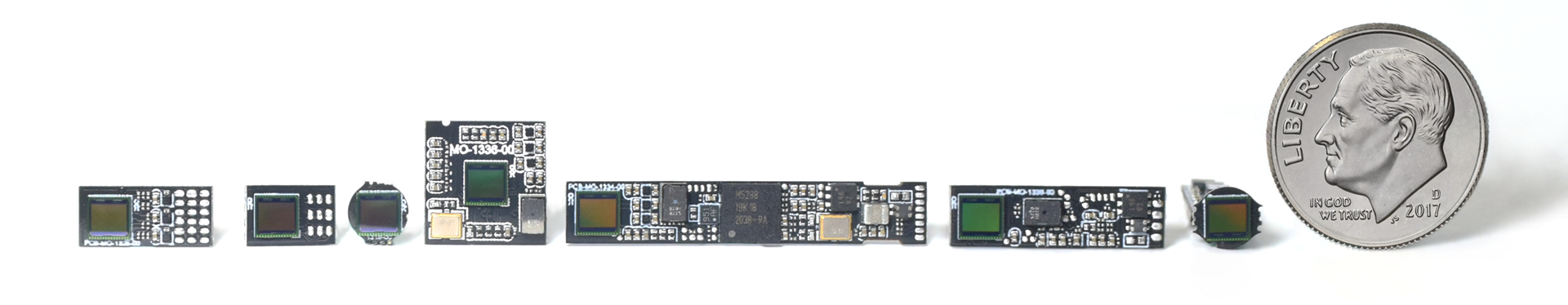

Our PCB Camera Module
