Medical
The 1/18-inch OV6946 Color CMOS Camera  MO-B1001, MD-B1001

The world's smallest camera
 Low power consumption
 1/18" Color CMOS (OV6946)
 Pixel size: 1.75um x 1.75um
 Shutter speed: 1/30 sec.
 Frame rate: 400(H) x 400(V) @30fps
 Sensitivity:1000mV/Lux-sec
 Dimensions(mm):(D)1.4mm

Coming soon.... MISUMI 1/18" CMOS (OV6946) image camera with 400x400 pixel and size is 1.6mm only, tiny dimension perfect for medical endoscopes, borescopes or other small diameter inspection devices.

1/18" Color Camera  MO-T833W , MO-T833C
 1/18" Color CMOS
 white LED x 4
 Pixel :320x240( NTSC )
 240 TV Lines
 Min. Illumination :2Lux / F1.2
 Lens: 0.96mm/F2.8
 DC 3.3 V
 Dimension : (D)3.9 x 15 (mm)
Model: MO-T833LW (wires output)
Model: MO-T833LC (cable to wires output)
The smallest cam in the world/Medical module  MD-V1003L-65, MD-T7003
 1/10" Color CCIQ II
 1/10" B/W CCIQ II
 Pixel: 400 x 400
 Lens: 1.43mm F3.2
 Lens: 1.498 mm F 3.1
 3300mV/Lux
 UVC USB 2.0 video camera for vista, window XP, windows 7, windows 8 , windows 10
 Dimension(mm): Sensor board: (D)3.8 , Main board: 85 x 20
The smallest cam in the world  MO-V1003L-65, MO-T7003, MO-T1003L-65
 1/10" color CCIQ II pico camera
 white LED light x 4
 Pixel: 400 x 400 (NTSC / PAL )
 3300mV/Lux
 Shutter Speed: 1/670 000 ~ 1/60 [sec](NTSC) ; 1/560 000 ~ 1/50 [sec].(PAL)
 Dimension(mm): Sensor board: (D)3.8 , Main board: 85 x 20

1/18" Color CMOS UVC Camera   MD-B802L-90, MD-B802L-55S, MD-B803L-55S
 Driver free(USB Video Class) for any OS
(windows XP, Vista, win7, Linux any version, MAC OS, Google+ Hangouts )Plug & Play
 with USB Video Class
 Interface: USB 2.0
 1/18" Color CMOS
 Pixel: 320x480; 640x480(upscale); 720x480(upscale)
 240 TV Lines
 Lens:
0.96mm/F2.8(55 degree)
0.68mm/F3.0(90 degree)
 2Lux / F1.2   DC 5V
1/8'' CCIQ II Hybrid sensitivity color camera  MX-B8F4-75, MX-B8F4L-75, MX-B8S4-75, MX-B8S4L-75, MX-B8F4F-52, MX-B8S4F-52
  Pixel: 648 x 488 (NTSC/PAL)
  Resolution: 400 TV Lines
  Sensitivity: 1.06 [V/Lux.sec]
  Pixel size: 2.8 um x 2.8um
  Effective image area: 1.814 mm x 1.366 mm
  Min. illumination: 1 lux
  Dynamic range: 60.3 [dB]
  Power: DC 3.3V(130mA-max)
  Dimension(mm): (D)4.8 x 20.9

MX-B8F4-75(AGC 8X), MX-B8S4-75(AGC 32X)
  Lens: 1.498mm/ F3.2
  Frame rate: 15~30fps

MX-B8F4K-75(AGC 8X), MX-B8S4K-75(AGC 32X)
  Lens: 1.498mm/ F3.2
  Frame rate: 15fps (fixed)

MX-B8F4F-75(AGC 8X), MX-B8S4F-75(AGC 32X)
  Lens: 1.85mm/ F2.8
  Frame rate: 30fps (fixed)
Hi-res. download Catalogue Catalogue
The smallest cam of the world + cable length: 150 cm!!  MO-SL1003L-65
 1/10" Color CCIQ II pico camera
 Pixel: 400 x 400 (NTSC / PAL )
 Shutter speed :
1/670 000 ~ 1/60 [sec](NTSC)
1/560 000 ~ 1/50 [sec](PAL)
 Lens: 1.498mm F7.0
 3300mV/Lux
 Dimension(mm): 3.5

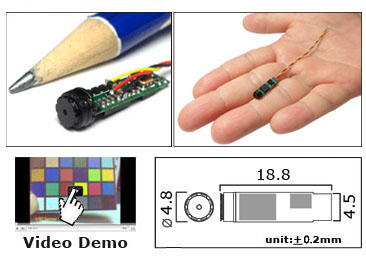

1/8'' CCIQ II color camera  MO-B0804, MO-B0804K
 1/8"Color CCIQ II
 Pixel: 656 x 496 (N/P)
 Resolution (TV Lines): 400 TV Lines
 Sensitivity 0.94 V/Lux.sec
 Pixel size: 2.8 um x 2.8um
 Electronic shutter: 1/60~1/62500s
 Effective image area: 1.837 mm x 1.389 mm
 Minimum illumination: 1 LUX
 Lens: 1.85mm/ F2.8
 View angle: FOV H= 52 degree 48'; V= 41 degree 9'; D= 63 degree 44'
 Power: DC 3.3~5V(130mA-max)
 Dimension(mm): (D) 4.8
MO-B0804: 30fps frame rate
MO-B0804K: 15fps frame rate

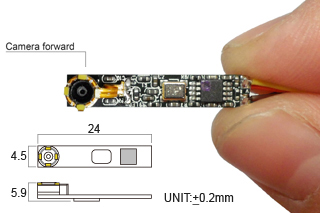

1/12" Color CMOS CAMERA Module  MO-BL1204LK-54
  1/12" Color CMOS CAMERA Module
  LED x 4
  720 x 525(NTSC), 720 x 625(PAL)
  400 TV Lines
  5Lux/ F2.8
  Electronic shutter: 1/60~1/62500s
  LENS: 1.3mm F2.8
  Lens View Angle(Fov): Fov (D):54°
  Power Supply : DC 3.6V
  Dimensions(mm) : (D)4.5 x 24 x 5.9mm

1/8'' CCIQ II color camera  MO-T0804, MO-T0804K ,MO-F0804MC ,MO-F0804MKC ,MO-L0804 ,MO-L0804C
 1/8"Color CCIQ II
 Water Proof IP 67 WITH LED x 4(standard)
 Pixel : 656 x 496 (N/P)
 Resolution (TV Lines) : 400 TV Lines
 Electronic shutter: 1/60~1/62500s
 Sensitivity 0.94 V/Lux.sec
 Pixel size: 2.8 um x 2.8um
 Effective Image Area 1.837 mm x 1.389 mm
 Minimum Illuminator :1 LUX
 Built-in Lens :1.85mm/ F2.8
 View angle :FOV H= 52 degree 48'; V= 41 degree 9'; D= 63 degree 44'

Hi-res. download Catalogue Catalogue

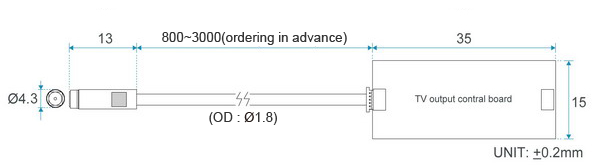

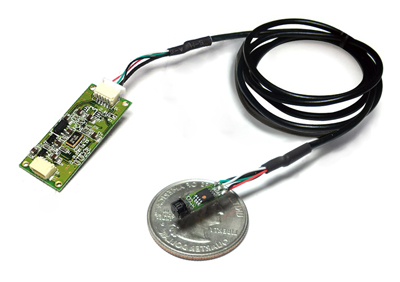

1/13' CCIQ color camera  MX-B13R3-90, MX-T13R3-90, MX-T13R3L-50
AGC & Frame rate adjustable !
 1/13" Color CCIQ Camera
 White LED x 4 (Ordering in advance)
 642 x 484 (NTSC / PAL)
 Shutter Type: Electronic Rolling Shutter (ERS)
 Sensor Scan Mode: Progressive Scan
 S/N Ratio: 34dB
 Dynamic Range: 66 [dB]
 Frame Rate: 60 Field/sec (NTSC) , 50 Field/sec (PAL)
 1.2mm F2.5 Lens (90 degree)
 1.498mm/F 5.0 (50 degree)
 Power: DC 3.3V~5V (MX-B13R3)
 Power: DC 5V~12V (MX-T13R3L)
 Dimension(mm):
Sensor Board:(D)3.8 x 10.3 + 800 + TV Output Control Board:16 x 40(MX-B13R3)
Sensor Board:(D)5 x 15 + 800+ TV Output Control Board:50 x 20(MX-T13R3L-90)
1/12" Color CMOS CAMERA Module  MX-BL8F4-75, MX-BL8S4-75
 1/8" color CMOS
 Pixel: 648 x 488 (NTSC/PAL)
 Resolution: 400 TV Lines
 Sensitivity: 1.06 [V/Lux.sec]
 Pixel size: 2.8 um x 2.8um
 Effective image area: 1.814 mm x 1.366 mm
 Min. illumination: 1 lux
 Dynamic range: 60.3 [dB]
 Lens: 1.498mm/ F3.2
 Power: DC 3.3V(130mA-max)
 Dimension(mm): (D)4.8 x 20.9

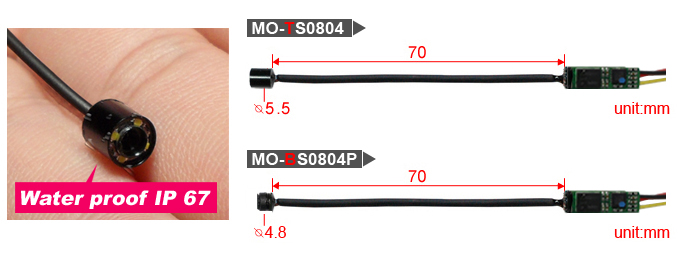

1/8'' CCIQ II color camera  MO-TS0804L, MO-TS0804LK ,MO-BS0804P, MO-BS0804PK
 1/8"Color CCIQ II
 White LED x 4
 Pixel : 656 x 496 (NTSC/PAL)
 Resolution: 400 TV Lines
 Sensitivity: 0.94 V/Lux.sec
 Pixel size: 2.8 um x 2.8um
 Electronic shutter: 1/60~1/62500s
 Effective Image Area: 1.837 mm x 1.389 mm
 Minimum Illumination: 1 LUX
 Built-in Lens :1.85mm/ F2.8
 View angle: FOV H= 52 degree 48'; V= 41 degree 9'; D= 63 degree 44'
 Power source :DC 3.3~5V(130mA-max)
 Dimension :
(D)5.5 mm(sensor board)+70+16x4.5mm(main board)(MO-TS0804)
(D)4.8 mm(sensor board)+70+16x4.5mm(main board)(MO-BS0804L)
Hi-res. download Catalogue Catalogue
1/12" Color CMOS CAMERA Module  MO-B1204L
  1/12" Color CMOS CAMERA Module
  LED x 4
  720 x 525(NTSC), 720 x 625(PAL)
  400 TV Lines
  5Lux/ F2.8
  Electronic shutter: 1/60~1/62500s
  LENS: 1.2mm F2.8
  Power Supply : DC 3.3~3.6V
  Dimensions(mm) : (D)4.5 x 24.5mm

1/5" Color Hybrid Sensitivity Camera Board  MX-B5407W-2B, MX-B5407W-2V, MX-B5407W-3E, MX-B5407W-3H, MX-B5407W-3K, MX-B5407W-3M
 Support for black sun cancellation
 IR 850nm LED x 10
 Pixel size: 4.2um(H) x 4.2um(V)
 Pixel: 640 x 480
 450 TV Lines
 0.03 Lux / 98IRE, 15 fps-LED turn off
 Frame rate: 15 & 30 fps (auto)
 Dynamic range: 71 [dB]
 S/N ratio: 38 [dB]
 Power: DC 3.3V (Module)
 Power: DC 5~12V (MX-T95408)
 Dimension(mm): (D)7 (Module)
 Dimension(mm): (D)7.8 (MX-T87408)
1/5" Color Hybrid Sensitivity Camera Board  MX-T87408KL-2B
▩ Support for black sun cancellation
▩ IR 850nm LED x 10
▩ Pixel size: 4.2um(H) x 4.2um(V)
▩ Pixel: 640 x 480
▩ 450 TV Lines
▩ 0.03 Lux / 98IRE, 15 fps-LED turn off
▩ Frame rate: 15 & 30 fps (auto)
▩ Dynamic range: 71 [dB]
▩ S/N ratio: 38 [dB]
▩ Power: DC 5~12V (MX-T95408)
▩ Dimension(mm): (D)7.8 (MX-T87408)
1/9" CMOS HD CAMERA MODULE  MD-B21105L
High sensitivity and low dark current for low-light conditions
 White LED x 6
 Max. frame rate: 1280x720@30fps
 pixel size: 1.4um x 1.4um
 Image sensor: 1/9" digital CMOS Color
 Image area: 1.840 x 1.04mm
 Sensitivity: 740mV/Lux-sec
 Dynamic range: 70.4dB@8x gain
 Lens: 1.498mm/F3.2
 UVC format: MJPEG
 Interface: USB 2.0
 Power: DC 5V (USB)/120mA
 Operating system: Windows 7, Windows 8
 Dimension(mm): 5.3(DIA)x20.2

1/18" Color Camera  MO-T933W , MO-T933C , MO-R933
PDF FILE
MO-T933W-P
 1/18" Color CMOS
 Pixel :320x240( PAL only)
 240 TV Lines
 Min. Illumination :2Lux / F1.2
 DC 6~12 V
 Dimension : (D)3.9 x 15+ (N2P): 70x16 (mm)
  0.96mm/F3.0(55°)
  3 wire out

MO-T933C
 1/18" Color CMOS
 Pixel :320x240( PAL only )
 240 TV Lines
 Min. Illumination :2Lux / F1.2
 DC 6~12 V
 Dimension : (D)3.9 x 15 + (N2P): 70x16 (mm)
  0.96mm/F3.0 (55°)
  cable out OD:2.3mm

MO-R933, MO-L933(W/LED light x2)
 1/18" Color CMOS
 LED LIGHT illumination: 5400 LUX(MO-L933)
 Pixel :320x240( PAL only )
 240 TV Lines
 Min. Illumination :2Lux / F1.2
 DC 6~12 V
 Dimension : (D)3.9 x 15+ (N2P): 70x16 (mm)
  0.96mm/F3.0(55°)
 shape memory goose neck + handlebar



Hi-res. download Catalogue Catalogue
1/13" side view LED camera!!  MX-T13R6LU-50
 white LED x 11 !!
 1/13" Color CMOS Camera
 Pixel: 642(H) x 484(V) ,
 With 1.498mm / F5.0 Lens

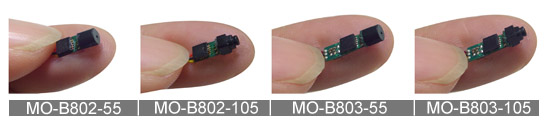

The Smallest Camera Of The World  MO-BS802 , MO-BS803


 1/18" Color CMOS Camera
 Pixel :320x240( NTSC )
 240 TV Lines
 0.77mm/F3.0(MO-BS803-105) , (MO-BS802-105), 0.96mm/F2.8(MO-BS803-55) , (MO-BS802-55)
 2Lux / F1.2
  DC 3.3 V
  dimensions :(MO-BS803) (D)3.5 mm +70 mm , (MO-BS802) (D)3.5mm + 70mm


Mini Camera Module!  MO-B3506, MO-B5506, MO-B5006, MO-B5606
MO-B3506
 1/4" Color CCIQ
 Effective Pixel: 648(H) x 488(V)(NTSC / PAL)
 Pixel Size: 5.55 um x 5.55 um
 Resolution: Horizontal 400 TV Lines
 0.1 Lux/ F1.2
 Sensitivity: 3.16 [V/Lux.sec]
 Dynamic Range: 63.5 [dB]
 S/N ratio: 45.6 [dB]
 Power Consumption: DC 3.3~4.2V
 Dimension(mm): 7.7(D)

MO-B5506
 1/3.7" Color CCIQ
 Effective Pixel: 648(H) x 488(V)(NTSC / PAL)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 480 TV Lines
 0.02Lux at F1.2 20IRE
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Power Consumption: DC 3.3~4.2V
 Dimension(mm): 8(D)

MO-B5006 new
 Motion function trigger output
 UTC function

 1/3.56" color CCIQ
 Effective Pixel:712 (H)x552(V)(NTSC / PAL)
 Pixel Size: 5.6 um x 5.6 um
 Resolution: Horizontal 480 TV Lines
 Sensitivity: 16 [V/Lux.sec]
 Dynamic Range: 75 [dB]
 S/N ratio: 44.8 [dB]
 Power Consumption: DC 3.3~4.2V
 Dimension(mm): 8.6(D)
coming soon

MO-B5606
 1/3" Color CCIQ
 Effective Pixel:728(H) x 488(V)(NTSC / PAL)
 Pixel Size: 6.35 um x 7.4 um
 Resolution: Horizontal 480 TV Lines
 0.05Lux at F1.2 20IRE
 Sensitivity: 13.8 [V/Lux.sec]
 Dynamic Range: 63.7 [dB]
 S/N ratio: 46.4 [dB]
 Power Consumption: DC 3.3~4.2V
 Dimension(mm): 8.8(D)

medical camera, tube camera
MISUMI provides many lenses for camera board. Order in advance for your specific needs!
Any inquiry, please email us, we will be pleased to make your customized products!
Color CMOS CAMERA Module  MX-V1204L-56-A, MX-V1204L-56-B, MX-V1204L-56-B
 automatic image control functions: automatic exposure control (AEC),
 automatic white balance(AWB) and automatic black level calibration (ABLC)
 Programmable controls for frame rate, AEC/AGC,mirror and flip, scaling and windowing
 Image quality controls: color saturation, hue, gamma,
 sharpness (edge enhancement), lens correction,defective pixel canceling, and noise canceling
 Night Vision Color CMOS Camera Module
 white LEDx4
(IR 940nm LED or IR850nm LED - ordering in advance), with dimmer switch
 720 x 480(NTSC/ ITU-601) / 720 x 576(PAL/ITU-601)
 450 TV Lines
 Frame Rate: 15fps (15fps or 30fps(auto)-ordering in advance)
 Sensitivity: 960 mV/(Lux • sec)
 Lens: 1.498mm/F5.0(H= 41degree 56'; V= 32degree 2'; D= 51degree 2')
 Power Supply : DC 3.3V
 Dimensions(mm) :
MX-V1204L-51-A: (D)5.5x27mm
MX-V1204L-51-B: (D)5.5x30.1mm
MX-V1204L-51-C: (D)5.5x27mm

Color CMOS Camera Side View Module  MX-BL1204K, MX-BL1204KL, MX-BL1204, MX-BL1204L
 automatic image control functions: automatic exposure control (AEC),
 automatic white balance(AWB) and automatic black level calibration (ABLC)
 Programmable controls for frame rate, AEC/AGC,mirror and flip, scaling and windowing
 Image quality controls: color saturation, hue, gamma, sharpness (edge enhancement),
 lens correction,defective pixel canceling, and noise canceling
 Night Vision Color CMOS Camera Module
 white LEDx4 (IR 940nm LED or IR850nm LED - ordering in advance), with dimmer switch
  720 x 480(NTSC/ ITU-601) / 720 x 576(PAL/ITU-601)
  450 TV Lines
  Frame Rate: 15fps (15fps or 30fps(auto)-ordering in advance)
  Sensitivity: 960 mV/(Lux • sec)
  Power Supply : DC 3.3V
  Dimensions(mm): 4.4x24

Micro Up View Camera   MO-B802U-55, MO-B802U-90
 1/18" Color CMOS Camera
 Pixel: 320x240( NTSC ONLY )
 240 TV Lines
0.96mm/F2.8(55 degree),
0.68mm/F3.0(90 degree)
 2Lux / F1.2
 Power: DC 3.3 V
 Dimensions:
(D)3.5x 8.2mm
1/6" Color CMOS Full HD 1080p Miniature UVC Camera  MD-B31105-77, MD-V31105L-77
Miniature USB 2.0 color CMOS camera with 1080p resolution
 Effective Image area(mm): 2.7288x1.5498
 Pixel Size(um): 1.4x1.4
1920x1080@ 30fps MJPG/ 3fps YUV
1280x720@ 30fps MJPG/ 12fps YUV
640x480@ 30fps MJPG/ 30fps YUV
320x240@ 30fps MJPG/ 30fps YUV

 Dynamic range: 73.3 dB @ 15.5x gain
 Sensitivity: 553 mV/(Lux-sec)
 Lens: 1.83mm/F2.0
 View agnle: H= 70°; V= 42° 7'; D= 77° 3'
 Focus distance: infinity
 Power: DC5V
 OS Support: MAC OS, Windows10, Windows8, Windows7, Windows XP, Linux, Andriod
 Dimensions(mm): 4.9(D)x18.3
 Cable length(cm): 200(OD2.8mm)
 Connector: USB 2.0 A type (MD-B31105), Micro USB OTG B type (MM-B31105)
1/7.5" B/W CMOS Global shutter UVC Camera Module  MD-BL24M7
Global shutter function to reduce or eliminate unwanted image artifacts
High sensitivity camera works better with IR LED light !
Available for Medical equipment such as Angiography

 Effective Image area(mm): 1.968 x 1.488
 Pixel Size(um): 3x3
 Resolution: 640x480@ 30fps MJPG
 Dynamic range: 69.6dB@8x gain
 Sensitivity: 7190mV/(μW.cm-2.sec) @ 850nm; 2800mV/Lux-sec @ 530nm
 Power: DC5V
 OS Support: Windows10, Windows8, Windows7, Windows XP
 Dimensions(mm): 7x22
 Cable length(cm): 200(OD2.8mm)
 Connector: USB 2.0 A type
1/9" Digital CMOS Borescope Endoscope Inspection Snake Camera Module  MD-B20904
 720p HD tiny camera module, narrow pipeline inspection
 1/9" Digital CMOS
 1280x720@ 30fps MJPG/ 10fps YUV
 Pixel size: 1.4 um x 1.4 um
 UVC format: MJPEG, YUY2
 Shutter: rolling shutter
 Operating system: Windows XP, Windows Vista, Window 7, Windows 8,windows 10
 Power: DC 5V
 Connector: USB2.0(MD-B20904), Micro USB OTG B type(MM-B20904), USB type-C(MT-B20904)
 Dimension(mm): (D)3.6 x 15



Follow Us

LATEST NEWSLETTER

Get about new and popular products in MISUMI.
More


Subscribe our newsletter to get new information.
