CMOS >> COLOR >> BOARD

1/3" Color CCIQ II Camera MX-B5609-4F, MX-B5609-3D

▪ 1/3" Color CCIQ III (MX-B5609, MX-B5609K)
▪ 728(H) x 488(V)
▪ Pixel size: 6 um x 6 um
▪ Resolution: 480 TV lines
▪ 0.03 Lux / 50IRE, 15 fps-LED turn off / 60cm)
▪ 0.03 Lux / 140IRE, 15 fps-LED turn on / 60cm)
▪ Frame rate:
30 fps(NTSC-EIA), 25 fps(PAL-CCIR) (MX-B5609)
15 fps(NTSC-EIA & PAL-CCIR) (MX-B5609K)
▪ Sensitivity: 13.8 [V/Lux.sec]
▪ Dynamic range: 63.7 [dB]
▪ S/N ratio: 46.4 [dB]
▪ Lens: 3.9mm/F2.8(3D Lens), 4.0mm/F2.0(4F Lens), 3.6mm/F2.0(3G2 Lens-Micro board Lens)
▪ Focal distance: infinity
▪ Power: DC3.3V
▪ Dimensions(mm): (D)8.8

1/3" Color CCIQ III Camera MO-B8632-3G, MO-B8532-3G

▪ 1/3" color CCIQ III 960H camera
▪ Pixel: 976 (H) x 496(V)
▪ Pixel size: 5.00um x 7.40um
▪ Effective Image Area: 4.88mm x 3.67mm ( Diagonal: 5.97mm)
▪ Resolution: 710 (NTSC/EIA), 740 (PAL/CCIR) TV line
▪ Shutter speed: 1/60~1/200,000(NTSC/EIA), 1/50~1/170,000(PAL/CCIR)
▪ Dark signal: 34.0 [mV/sec]
▪ Sensitivity: 11.4 [V/Lux.sec]
▪ SNR: 46.4 [dB]
▪ Dynamic range: 63.5 [dB]
▪ Lens: 3.6mm / F 2.0
▪ Power: DC 5~ 12V (80 mA-Max)
▪ Dimensions(mm): 32 x 32

1/3" Color CCIQ III Camera MO-B8622, MO-B8619, MO-B8626

▪ 1/3" color CCIQ III 960H camera
▪ Pixel: 976(H) x 496(V)
▪ Pixel size: 5.00 um x 7.40 um
▪ Effective Image Area: 4.88 mm x 3.67 mm (Diagonal: 6.1mm)
▪ Resolution: 710 (NTSC), 740 (PAL) TV line
▪ Shutter speed: 1/60~1/200,000(NTSC), 1/50~1/170,000(PAL)
▪ Dark signal: 34.0 [mV/sec]
▪ Sensitivity: 11.4 [V/Lux.sec]
▪ SNR: 46.4 [dB]
▪ Dynamic range: 63.5 [dB]
▪ Power: DC 5~12V (80mA-Max)
▪ Dimensions(mm): (D)22(MO-B8622) / 19 x 22(MO-B8619) / 22 x 26(MO-B8626)
960H Hi resolution camera with UTC function,MO-B8622,MO-B8619,MO-B8626

960H Hi resolution camera with UTC function,MO-B8622,MO-B8619,MO-B8626

1/3" Color CCIQ III Camera Sensor Board MO-B5610

▪ Pixel: 728(H) x 488(V) (NTSC/ PAL)
▪ Resolution: Horizontal 480 TV Lines
▪ Frame Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
▪ Min. Illumination: 0.05Lux /F 1.2 20 IRE
▪ Sensitivity: 13.8 V/Lux.sec
▪ Dynamic Range: 46.4 [dB]
▪ Power: DC 3.3~5V (100mA-max)
▪ Dimensions(mm): 10.4 x 10.4 x 2.6

1/6" Color CMOS Full HD 1080p Miniature UVC Camera TD-BL31105, TM-BL31105, TT-BL31105

• USB 2.0 (Micro USB or USB Type C- order in advance)
• Snapshot and Freeze frame function
• Dimensions(mm): 4.9x13
▪ Effective Image area(mm): 2.7288x1.5498
▪ Pixel Size(um): 1.4x1.4
▪ Resolution:1920x1080@ 15~30fps MJPG
▪ Customized resolution-order in advance ▪ Dynamic range: 73.3 dB @ 15.5x gain
▪ Sensitivity: 553 mV/(Lux-sec)
▪ Power: DC5V
▪ OS Support: MAC OS, Windows10, Windows8, Windows7, Windows XP, Linux, Andriod
▪ Cable length(cm): 200 (OD2.8mm)
▪ Connector: USB 2.0 A type (FTD-BL31105), Micro USB OTG B type (FTM-BL31105), USB Type C (FTT-BL31105)

Ultra-compact CCD Color Board Camera GP-KX121E, GP-KX121/15E, GP-KX121/45E, GP-KX121/51E

▪ 1/4" Type Color CCD (Medium Resolution)
▪ Pixel: PAL-512 x 582
▪ Min. lllumination: 0.2Lux / F1.2
▪ Resolution: 330 TV Lines
▪ Electronic shutter: 1/60~1/96.000 sec
▪ Ultra Small 22mm(H) x 26mm(W) package
▪ Power: DC 5V 125mA(max.)
▪ Integrated with single chip digital signal processing (DSP)
▪ MCM PCB design offers ultra-compact thin size, light weight, and high durability

Panasonic

GP-KX121E , GP-KX121/15E , GP-KX121/45E , GP-KX121/51E

1/4" Color CMOS Camera MO-S1255W, MO-S1555W, MO-S1555J, MO-S1555LW, MO-S1555LJ

▪ 1/4" Color CCIQ III Camera (MO-S1255 & MO-S1555 Series)
▪ White LED x 4 (MO-S1555L)
▪ Pixel Size: 5.55 um x 5.55 um
▪ Pixel: 648 x 488 (NTSC / PAL)
▪ HI resolution: 400 TV Lines
▪ Min. illumination: 0.1Lux /F 1.2 20IRE
▪ Sensitivity: 3.53 [V/Lux.sec]
▪ Max. frame rate: 60 field/sec(NTSC), 50 field/sec CVBS(PAL)
▪ Lens: 3.4mm/F3.4 (M5.0mm/P0.35)
▪ Power: DC2.8 (MO-S1255W)
▪ Power: DC 3.3V (MO-S1555 Series)

The Smallest Camera Of The World (PAL version) MO-B902-105, MO-B902-55, MO-B903-105, MO-B903-55

▪ 1/18" Color CMOS Camera
▪ Pixel: 320x240 (PAL ONLY)
▪ 240 TV Lines
Lens:
0.77mm/F3.0 (105 degree)
0.68mm/F3.0 (90 degree)
0.96mm/F2.8 (55 degree)
▪ 2Lux / F1.2
▪ DC 5~12 V
▪ Dimensions(mm):
(D)3.5mm x 8.6mm + (N2P): 70x16 (mm)(MO-B902-55-P)
(D)3.5mm x 8.6mm + (N2P): 70x16 (mm)(MO-B902-90-P)
(D)3.5mm x 9.2mm + (N2P): 70x16 (mm)(MO-B902-105-P)
(D)3.5mm x 12.3mm + (N2P): 70x16 (mm)(MO-B903-55-P)
(D)3.5mm x 12.3mm + (N2P): 70x16 (mm)(MO-B903-90-P)
(D)3.5mm x 13.4mm + (N2P): 70x16 (mm)(MO-B903-105-P)

The Smallest Camera Of The World MO-B802-55, MO-B802-90, MO-B803-55, MO-B803-90

▪ 1/18" Color CMOS Camera
▪ Pixel: 320x240 (NTSC ONLY)
▪ 240 TV Lines
0.77mm/F3.0 (105 degree)
0.96mm/F2.8 (55 degree)
0.68mm/F3.0 (90 degree)
▪ 2Lux / F1.2
▪ Power: DC 3.3 V
▪ Dimensions(mm):
(D)3.5 mm x 8.6 mm (MO-B802-55-N)
(D)3.5 mm x 8.6 mm (MO-B802-90-N)
(D)3.5 mm x 12.3 mm (MO-B803-55-N)
(D)3.5 mm x 12.3 mm (MO-B803-90-N)

1/4" CCIQ II Camera Board MO-B3526G, MO-B3526-4F

▪ Pixel: 648x488 (NTSC / PAL)
▪ 400 TV Lines
▪ Lens: 3.7mm/F2.0 (MO-B3526G)
▪ Lens: 4.3mm/F2.0 (MO-B3526-4F)
▪ Min. Illumination: 0.1Lux / F1.2
▪ Power: DC 5~12V

1/3" CCIQ Color Camera Board MO-B2626-4F

▪ 1/3" Color CCIQ Camera Board
▪ Pixel: 510 x 492 (NTSC), 628 x 582 (PAL)
▪ 380 TV Lines
▪ Lens: 4.3mm/F2.0
▪ Min. Illumination: 0.1Lux / F1.2
▪ Power: DC 5-12 V

1/3" Color CCIQ Camera MO-B2628GA

▪ HI-Resolution　
▪ 250K (NTSC), 360K (PAL)
▪ 0.2Lux/F1.2
▪ 380TV Lines over
▪ Audio
▪ Power: DC 3.3~12V
▪ Dimensions(mm): 28 x 28 x 23

1/4" CCIQ II Mini Camera MO-B2519

▪ 1/4" Color CCIQ II Camera
▪ Pixel: 648(H) x 488(V) (NTSC / PAL)
▪ HI Resolution: Horizontal 400 TV Lines
▪ Image Transfer Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
▪ Min. Illumination: 0.06Lux /F 1.2 20IRE
▪ Power: DC 3.3~5V
▪ Dimensions(mm): 22 x 19

1/2.7" Color CMOS Camera MD-B2020U-6B, MD-T2013

• Full HD 1080p, H.264 ▪ Effective Image area(mm): 5.856 x 3.276 ▪ Pixel Size(um): 3 x 3 ▪ Image sensor: 1/2.7" Color ▪ Image Transfer Rate: 1920x1080/30fps H.264, MJPEG; 5fps YUV 1280x720/30fps H.264, MJPEG; 10fps YUV 640x480/30fps, 640x360/30fps, 320x240/30fps, 320x180/30fps H.264, MJPEG, YUV ▪ Dynamic range: 69 dB @ 8x gain ▪ Sensitivity: 3300 mV/(Lux-sec) ▪ Lens: 6.0mm/F2.0(M12/top7xP0.5) ▪ Power: DC5V, 350mA(Max) ▪ Dimensions(mm): 20x48(MD-B2020), 13(D)(MD-T2013) ▪ Cable length(cm): 200 ▪ Connector: USB 2.0 Atype

(MD-B2020U)	(MD-T2013)

1/4" CCIQ II Color Mini Camera MO-B2511-3D, MO-B2511-2S

1/4"Color CCIQ II
Pixel: 648 x 488(NTSC & PAL)
Resolution (TV Lines): 400 TV Lines
Image Transfer Rate: 60 field/sec (NTSC) , 50 field/sec (PAL)
Minimum Illuminator: 0.6 Lux/F1.2
Power: DC 3.3~5V
Dimensions(mm): 10.7 x 10.7

1/3" Color CMOS Camera MO-B2632GA

▪ HI resolution
▪ 250K(NTSC), 360K(PAL)
▪ 0.2Lux/F1.2
▪ 380TV Lines over
▪ Audio
▪ Power: DC 3.3~12V
▪ Dimensions(mm): 32 x 32 x 23

Mini Camera Module! MO-B3506, MO-B5506, MO-B5006, MO-B5606

MO-B3506
▪ 1/4" Color CCIQ
▪ Effective Pixel: 648(H) x 488(V) (NTSC/PAL)
▪ Pixel Size: 5.55 um x 5.55 um
▪ Resolution: Horizontal 400 TV Lines
▪ 0.1 Lux/ F1.2
▪ Sensitivity: 3.16 [V/Lux.sec]
▪ Dynamic Range: 63.5 [dB]
▪ S/N ratio: 45.6 [dB]
▪ Power: DC 3.3~4.2V
▪ Dimensions(mm): 7.7(D)

MO-B5506
▪ 1/3.7" Color CCIQ
▪ Effective Pixel: 648(H) x 488(V) (NTSC/PAL)
▪ Pixel Size: 6 um x 6 um
▪ Resolution: Horizontal 480 TV Lines
▪ 0.02Lux at F1.2 20IRE
▪ Sensitivity: 8.2 [V/Lux.sec]
▪ Dynamic Range: 63.3 [dB]
▪ S/N ratio: 47 [dB]
▪ Power: DC 3.3~4.2V
▪ Dimensions(mm): 8(D)

MO-B5006
• UTC function
▪ 1/4" color CCIQ
▪ Effective pixel array: 712x552 (640x480 output pixel array)
▪ Pixel Size: 5.6 um x 5.6 um
▪ Resolution: Horizontal 480 TV Lines
▪ Sensitivity: 16 [V/Lux.sec]
▪ Dynamic Range: 75 [dB]
▪ S/N ratio: 44.8 [dB]
▪ Power: DC 3.3~4.2V
▪ Dimensions(mm): 8.6(D)

MO-B5606
▪ 1/3" Color CCIQ
▪ Effective Pixel: 728(H) x 488(V) (NTSC/PAL)
▪ Pixel Size: 6.35 um x 7.4 um
▪ Resolution: Horizontal 480 TV Lines
▪ 0.05Lux at F1.2 20IRE
▪ Sensitivity: 13.8 [V/Lux.sec]
▪ Dynamic Range: 63.7 [dB]
▪ S/N ratio: 46.4 [dB]
▪ Power: DC 3.3~4.2V
▪ Dimensions(mm): 8.8(D)

medical camera, tube camera

MISUMI provides many lenses for camera board. Order in advance for your specific needs!
Any inquiry, please email us, we will be pleased to make your customized products.

1/2.9" Color CMOS 1080p Camera DH-B63217HD, DH-B63217FD, DH-B63220FD, DH-B63220HD,DH-T63217HD, DH-T63217FD

▪ Mini HDMI 1080p ; 720p camera!
▪ Max. Frame rate:
1920x1080 /30fps(1080P)
1280x720 /30fps(720P)
▪ Pixel size 4.2umx4.2um
▪ Image area: 5.51mmx3.10mm
▪ Scan mode: Progressive
▪ Sensitivity: 7.0 V/lux.sec
▪ Dynamic Range: 55.1 Db
▪ SNR Range: 39.8 dB
▪ Connect Interface: HDMI D type
▪ Power:
5V/430mA,12V/180mA(1080P)
5V/350mA,12V/150mA(720P)
▪ Dimensions(mm):
18.5 x 60.8 (DH-T63217), 17.4 x 40 (DH-B63217), 50.5x20 (DH-B63220)


DH-T63217FD DH-T63217HD	DH-B63217FD DH-B63217HD	DH-B63220FD DH-B63220HD

1/7" Color CCIQ II Camera MX-B6107W

▪ 1/7" Hybrid Sensitivity Color Camera
▪ 720 x 480
▪ Pixel size: 1.75um x 1.75um
▪ Resolution: 450 TV lines
▪ 0.03 Lux / 50IRE, 15 fps-LED turn off / 60cm)
▪ 0.03 Lux / 140IRE, 15 fps-LED turn on / 60cm)
▪ Frame rate: 15~30 fps
▪ Sensitivity: 7 ke/Lux-sec
▪ Dynamic range: 66 dB @ 8x gain
▪ S/N ratio: 36 dB
▪ Power: DC 3.3V
▪ Dimensions(mm): (D)6.8x15.9
MISUMI provides customized image area, please specify when ordering.

High Sensitivity 1/3" Color CMOS Camera Board MO-B2639GTA, MO-B2620P

▪ CCIQ High Sensitivity NEW CMOS Sensor
▪ NTSC-250K, PAL-360K
▪ 0.2Lux/ F1.2
▪ 380TV Lines over
▪ Sensitivity boost (+42 dB)
▪ With Micro controller storage
▪ Firmware enhance sharpness and image edge,
▪ Automatic exposure/gain with 16 zone control
▪ Shutter Speed: 1/50-1/12,5000 Sec.
▪ Power Source: DC 9V(standard)


MO-B2639GTA ▪ With IR LED x 6 & CDS ▪ W/microphone ▪ Dimensions(mm): 39 x 28 x 30	MO-B2639GTA ▪ Dimensions(mm): ∮20 mm

Ultra slim camera chip-scale-module!! MO-B5555, MO-B5755

▪ 1/3.7" CCIQIII color CSM camera (MO-B5555)
▪ 1/3.7" CCIQIII B/W CSM camera (MO-B5755)
▪ Effective image area: 3.8(H) x 2.9(V) x 4.86(D)
▪ Pixel: 648 x 488 (NTSC & PAL )
▪ Horizontal 480 TV lines (MO-B5555)
▪ Horizontal 550 TV lines (MO-B5755)
▪ Image transfer rate: 60 field/sec(NTSC), 50 field/sec(PAL)
▪ 0.02 Lux/ F1.2 (MO-B5555)
▪ 0.006 Lux/ F1.2 (MO-B5755)
▪ Sensitivity: 8.2 [V/Lux.sec]
▪ Dynamic range: 63.3 [dB]
▪ S/N ratio: 47.0 [dB]
▪ Power: DC 3.3~4.2V, 80mA

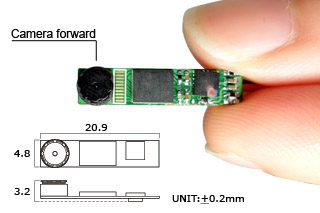

1/8" Color CMOS Camera MO-BL0804P, MO-BL0804PK

▪ 1/8"Color CCIQ II
▪ Pixel: 656 x 496 (N/P)
▪ Resolution (TV Lines): 400 TV Lines
▪ Sensitivity: 0.94 V/Lux.sec
▪ Effective image area: 1.837 mm x 1.389 mm
▪ Minimum illumination: 1 LUX
▪ Electronic shutter: 1/60~1/62500s
▪ Lens: 1.85mm/ F2.8
▪ View angle: FOV H= 52 degree 48'; V= 41 degree 9'; D= 63 degree 44'
▪ Power: DC 3.3~5V (130mA-max)
▪ Dimensions(mm): 20.9 x 4.8 x 3.6

360 Degree HD Video Conferance Camera Module MD-VC100M

▪ Resolution: 1280x720 MJPEG
▪ Frame Rate: 30fps
▪ Video format: MJPG
▪ Lens: 180 degree (fisheye lens)
▪ Focal distance: infinity
▪ Power: 1.063A@5V, 200mA(Max)
▪ Power Consumption: 5315mW
▪ Dimensions(mm): 40(W)x45(L)
▪ Connector: USB 2.0 (A type/Full Speed)

Ultra Slim camera! MO-B3517-3X, MO-B3717-3X, MO-B3517L

▪ white LED x 10 (MO-B3517L)
▪ 1/4" Color CCIQ II Camera (MO-B3517, MO-B3517L)
▪ 1/4" B/W CCIQ II Camera (MO-B3717)
▪ Pixel: 648 x 488 (NTSC-EIA / PAL-CCIR)
▪ Resolution: Horizontal 400 TV Lines
▪ Min. Illumination: 0.1 Lux/ F1.2 (color)
▪ Min. Illumination: 0.06 Lux/ F1.2 (B/W)
▪ Lens: 3.4mm/F2.8
▪ Power: DC 5~12V, 50mA(Max)
▪ Dimensions(mm): (D)17 x 6.2

1/11"(1/6") Color CCIQ III Camera MX-B5109-4F

▪ Perfect Record Monitor Screen.
▪ MISUMI provides customized image area, please specify when ordering.
▪ 1/11"(1/6") Color CCIQ Camera
▪ Image Area: 2.90mm(D), 1.75um (Magnification can be customize)
▪ Output display format: 720(H) x 480(V) for CVBS
▪ Frame Rate: 15 fps
▪ Sensitivity: 0.5[V/Lux.sec]
▪ Sensor Scan Mode: Progressive Scan
▪ Lens: 4.0mm/F2.0
▪ Power: DC 3.3V
▪ Dimensions(mm): 8.8(D)

New CCIQ Camera Board MO-B8020

New CCIQ Camera Board
▪ 1/4" Color CCIQ Camera
▪ Pixel: 640 x 480 (NTSC/PAL)
▪ 380 TV Lines
▪ Lens: 3.9mm / F2.8
▪ 0.3Lux / F1.2
▪ Power: DC 5V
▪ Dimensions(mm): (D)20
▪ Automatic image control functions including:
Exposure Control (AEC)
Gain Control (AGC)
White Balance (AWB)

New CCIQ Mini Camera MO-B8019-3D, MO-B8019-3T

▪ 1/4" Color CCIQ Camera
▪ 640x480 300K (PAL)
▪ 380 TV Lines
▪ 0.3 Lux/ F1.2
▪ 60 field/sec(NTSC) , 50 field/sec(PAL)
▪ 3.9mm/F2.8 (3D)pin hole Lens
▪ 3.1mm/F3.4 (3T)pin hole Lens
▪ Power Supply: DC 3.3V
▪ Dimensions(mm): 19 x 22 x 8.3


MO-B8019-3D	MO-B8019-3T

1/4" Color CCIQ III Camera MO-B5526G

▪ Effective Image Area: 3.8(H) x 2.9(V) x 4.86(D)
▪ Image circle: 4.86mm
▪ Effective Pixel: 648(H) x 488(V)
▪ Pixel Size: 6 um x 6 um
▪ Resolution: Horizontal 480 TV Lines
▪ 0.006 Lux/ F1.2
▪ Sensitivity: 8.2 [V/Lux.sec]
▪ Dynamic Range: 63.3 [dB]
▪ S/N ratio: 47 [dB]
▪ 3.7 mm/F2.0 micro board lens
▪ Focal distance: infinity
▪ Power: DC 5 -12V
▪ Dimensions(mm): 22 x 26

1/12'' CCIQ II color camera MX-TS1204L, MX-TS1204LK ,MX-BS1204P, MX-BS1204PK

▪ 720 x 480(NTSC/ ITU-601), 720 x 576(PAL/ITU-601)
▪ 450 TV Lines
▪ Frame Rate: 15fps (15fps or 30fps(auto)-order in advance)
▪ Sensitivity: 960mV/(Lux-sec)
▪ Power: DC 3.3V
▪ Dimension:
(D)5.5 mm(sensor board)+70+20x4.5mm(main board)(MX-TS1204)
(D)4.8 mm(sensor board)+70+20x4.5mm(main board)(MX-BS1204L)

Ultra Slim New CCIQ II Camera MO-B2507, MO-S2507, MO-B2505L, MO-B2505R, MO-B2707, MO-S2707

MO-B2507-3D With MIC. 1/4" color CCIQ II camera Pixel: 316K (NTSC-EIA / PAL-CCIR) 400 TV Lines 0.6Lux/ F1.2 Power: DC 2.8V Dimensions(mm): 8 x 18.8 x 5.9
MO-S2507-3D With MIC. 1/4" color CCIQ II camera Pixel: 316K (NTSC-EIA / PAL-CCIR) 400 TV Lines 0.6Lux/ F1.2 Power: DC 5~12V Dimensions(mm): 9.1 x 23 x 6.4
MO-B2505-3T 1/4" color CCIQ II camera Pixel: 316K (NTSC-EIA / PAL-CCIR) 400 TV Lines 0.6Lux/ F1.2 Power: DC 2.8V Dimensions(mm): 5 x 24

1/4" Color CCIQ II Camera MO-B3520

▪ 1/4" Color CCIQ II Camera
▪ 648 x 488 (NTSC/PAL)
▪ 0.1 Lux/ F1.2
▪ 400TV Lines over
▪ Frame Rate: 60 field/sec (NTSC)
▪ Power: DC 5~12V
▪ Dimensions(mm): 17.5 x 17.5

1/4" CCIQ II Mini Camera MO-B2519

▪ 1/4" Color CCIQ II Camera
▪ 648(H) x 488(V)(NTSC / PAL)
▪ HI Resolution: Horizontal 400 TV Lines
▪ Image Transfer Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
▪ Min. Illumination: 0.06Lux /F 1.2 20 IRE
▪ Power input: DC 3.3~5V
▪ Dimensions(mm): 22 x 19

High Sensitivity 1/3" Color CMOS Camera MO-B1639GDA

NEW CCIQ II Camera Board
▪ High Sensitivity 1/3" Color CMOS Camera
▪ Pixel: 510 x 492( NTSC )/ 628 X 582(PAL)
▪ 380 TV Lines over
▪ Min. Illumination: 1Lux/ F1.2
▪ Lens: 4.3mm/ F2.0 (Micro Board Types)
▪ With Microphone
▪ With 6 x white LED & CDS
▪ Power: DC 9V

1/4" AF (auto focus) VCM CCIQIII Camera MF-200, MO-T200LW, MF-L200

▪ 1/4" AF (auto focus) VCM CCIQIII Camera
▪ Effective pixels: 640 x 480 (N/P)
▪ Frame rate: 60 field(NTSC), 50 field(PAL)
▪ AGC auto,AES auto
▪ Video output CVBS
▪ Lens view angle: (Fov) 65 degree
▪ Len: F/NO 3.0 +- 5%
▪ Focal Distance: 7 ~ 35cm
▪ Power: DC 5V, 250mA
▪ Dimensions(mm):
(D)12.5 x 28.6 (board only)
(D)13.5 x 41.6 (tube & snake camera)

1/3" Camera + UTC Function ! MO-B8522, MO-B8519, MO-B8526, MO-B8522, MO-B8519, MO-B8526

▪ 1/3" color CCIQ III 960H camera (MO-B85XX)
▪ Pixel: 976 (H) x 496(V)
▪ Pixel size: 5.00 um x 7.40 um
▪ Effective Image Area: 4.88 mm x 3.67 mm (Diagonal: 6.1mm)
▪ Resolution: 710 (NTSC), 740 (PAL) TV line
▪ Shutter speed: 1/60~1/200,000(NTSC), 1/50~1/170,000(PAL)
▪ Dark signal: 34.0 [mV/sec ]
▪ Sensitivity: 11.4 [V/Lux.sec]
▪ SNR: 46.4 [dB]
▪ Dynamic range: 63.5 [dB]
▪ Power: DC 5~12V (80mA-Max)
▪ Dimensions(mm) :
(D)22(MO-B8522) / 19 x 22(MO-B8519) / 22 x 26(MO-B8526)
MO-B8522 compatibility replace MTV-54C6, MO-B8726 compatibility replaceMTV-54C2 , MTV- 54C0, panasonic - GP-KX121P, GP-KX121/15P, GP-KX121/45P , GP-KX121/51P

MO-B8522 compatibility replace MTV-54C6, MO-B8726 compatibility replaceMTV-54C2 , MTV- 54C0, panasonic - GP-KX121P, GP-KX121/15P, GP-KX121/45P , GP-KX121/51P

Ultra slim camera MO-B5507DA-3D, MO-B5507UA-3D, MO-S5507DA-3D, MO-S5507UA-3D

▪ With Microphone
▪ Effectivei image area: 3.8(H) x 2.9(V) x 4.86(D)
▪ pixel: 648 x 488 (NTSC-EIA / PAL-CCIR)
▪ Pixel size: 6 um x 6 um
▪ Resolution: Horizontal 480 TV Lines
▪ 0.02 Lux/ F1.2
▪ Sensitivity: 8.2 [V/Lux.sec]
▪ Dynamic range: 63.3 [dB]
▪ S/N ratio: 47 [dB]
▪ Lens: 3.9mm/F2.8
▪ Focal distance: infinity
▪ Power: 5~12V
▪ Dimensions(mm): 8 x 18.8 x 5.9 (MO-B5507)
▪ Dimensions(mm): 9.1 x 23 x 6.4 (MO-S5507)


MO-B5507DA-3D	MO-B5507UA-3D	MO-S5507DA-3D	MO-S5507UA-3D

5.0 mega pixel UVC QSXGA Camera Module MD-B5014-3.0, MD-B5014V-3828, MD-B5014LV-3828, MD-B5014-1028

• Snapshot function and Freezing function(order in advance)
▪ Max. frame rate: Full 5.0M 2592 x 1944 /15 fps,
▪ Pixel size: 1.4um x 1.4um
▪ Image sensor: 1/4" CCIQIII digital QSXGA cmos camera module
▪ Image area: 3.651 x 2.744mm
▪ Scan mode: progressive
▪ Sensitivity: 5100 e-/lux.sec
▪ Dynamic range: 63 dB
▪ UVC format: MJPEG, YUY
▪ Built-in Microphone
▪ Interface: USB 2.0 (compliant with USB video class 1.1 standard)
▪ Power: DC 5V (USB)/ 170mA(working)(MD-B5014-3.0)
▪ Power: DC 5V (USB)/ 250mA(working)(MD-B5014V-3828)
▪ Operating system: Windows 7, Windows 8, MAC OS, Linux,Windows10 (windows 7 operating system in use, you need to install MJPG decoders.)
▪ Dimensions(mm): (D) 14(MD-B5014);(D) 18(MD-B5018)
5mp 2592 × 1944     ,HD内視鏡indoscope CCTV  usb ,

5mp 2592 × 1944     ,HD内視鏡indoscope CCTV  usb ,

NEW CCIQ III CAMERA BOARD MO-B4639GTA-P

▪ 1/3" Color CCIQ III Camera
▪ LED x 6
▪ Pixel: 728(H) x 488(V)
▪ Resolution: Horizontal 480 TV Lines
▪ Frame Rate: 60 field/sec 50 field/sec CVBS
▪ Minimum illumination: 0.05Lux F# 1.2 20IRE
▪ Sensitivity:13.8 V/Lux.sec
▪ Dynamic Range : 63.7 [dB]
▪ SNR : 46.4 [dB]
▪ LENS: f3.8mm/F#2.0 M12 type Lens
▪ Power :5~12(190~90mA)
▪ Dimension(mm) : 28mm x 39 mm x 30mm(H)
▪ Net Weight : 20g

1/3" color CCIQ II camera MO-B5609-4F, MO-B5609-3D

▪ 1/3" Color CMOS
▪ 728(H) x 488(V)
▪ Pixel size: 6 um x 6 um
▪ Resolution: 480 TV lines
▪ 0.05 Lux/ F1.2
▪ Frame rate: 30 fps(NTSC), 25 fps(PAL)
▪ Sensitivity: 13.8 [V/Lux.sec]
▪ Dynamic range: 63.7 [dB]
▪ S/N ratio: 46.4 [dB]
▪ Lens: 3.9mm/F2.8(3D Lens), 4.0mm/F2.0(4F Lens), 3.6mm/F2.0(3G Lens-Micro board Lens)

▪ Focal distance: infinity
▪ Power: DC3.3~4.2V
▪ Dimension(mm): (D)8.8

1/2" Color MCCD Digital Hybrid Sensitivity Camera Board MX-B8823

▪ Hybrid sensitivity Super low light camera !!/ ECO Friendly
▪ Pixel size: 8.60um(H) x 8.30um(V)
▪ Pixel: 768H x 582V
▪ 0.01 lux / F1.2 83 IRE
▪ Frame rate: 5~30 fps
▪ Shutter Type: Electronic Rolling
▪ Dynamic range: 69 [dB]
▪ S/N ratio: 48 [dB]
▪ Power: DC 5 ~12V (5V/360mA ; 12V/150mA)
▪ Dimension(mm): (D)23 x 38.5

1/2" Color MCCD Digital Hybrid Sensitivity Camera Board MX-B8832

Hybrid sensitivity Super low light camera !!/ ECO Friendly
▪ 1/2" Hybrid sensitivity color & B/W camera
▪ Pixel size: 8.60um(H) x 8.30um(V)
▪ Pixel: 768H x 582V
▪ 0.01 lux / F1.2 83 IRE
▪ Frame rate: 5~30 fps
▪ Shutter Type: Electronic Rolling
▪ Dynamic range: 69 [dB]
▪ S/N ratio: 48 [dB]
▪ Lens: 7.8mm/F1.8
▪ Power: DC 5 ~12V (5V/360mA ; 12V/150mA)

MX-B8832
▪ Dimension(mm): 32x32

MX-B8823
▪ Dimension(mm): 23(D)x38.5

1/3.7" COLOR CCIQ III Genlock Camera MO-B6588

▪ 1/3.7" CCIQIII color Genlock Camera
▪ Effective image area:3.8(H) x 2.9(V)X4.86(D)
▪ Effective pixel: 648(H) x 488(V)(EIA / CCIR)
▪ Pixel size: 6 um x 6 um
▪ Resolution: horizontal 480 TV Lines
▪ 0.02 Lux/ F1.2
▪ Sensitivity: 8.2 [V/Lux.sec]
▪ Dynamic range: 63.3 [dB]
▪ S/N ratio: 47 [dB]
▪ Power: 3.3V(100mA)
▪ Dimension(mm): 8x8

Color CMOS Camera Side View Module MX-BL1204K, MX-BL1204KL, MX-BL1204, MX-BL1204L

▪ automatic image control functions: automatic exposure control (AEC), automatic white balance(AWB) and automatic black level calibration (ABLC)
▪ Programmable controls for frame rate, AEC/AGC,mirror and flip, scaling and windowing
▪ Image quality controls: color saturation, hue, gamma, sharpness (edge enhancement), lens correction,defective pixel canceling, and noise canceling
▪ Night Vision Color CMOS Camera Module
▪ white LEDx4 (IR 940nm LED or IR850nm LED - ordering in advance), with dimmer switch
▪ 720 x 480(NTSC/ ITU-601) / 720 x 576(PAL/ITU-601)
▪ 450 TV Lines
▪ Frame Rate: 15fps (15fps or 30fps(auto)-ordering in advance)
▪ Sensitivity: 960 mV/(Lux • sec)
▪ Power Supply : DC 3.3V
▪ Dimensions(mm): 4.5 x 24

1/10" Hybrid Sensitivity CMOS color MX-B1004

▪ Auto Exposure ; ▪ Auto White Balance ▪ Noise Reduction
▪ Black Level Calibration ▪ On-Chip Dead Pixel Correction ;
▪ Edge Enhancement ▪ Brightness
▪ Gamma Correction; ▪ Color Correction; ▪ Lens Shading Correction
▪ white LED x 6; IR940nm x 6; IR850nm x 6(order in advance)
▪ Pixel Size: 2.125um X 2.125um
▪ Effective pixels: 640 x 480
▪ 450 TV Lines
▪ Frame Rate: 15~30fps(15 fps fixed for order in advance)
▪ Power: DC 3.3V
▪ Dimension(mm): (D)4mm

1/4" Color CMOS Camera MO-B35519

▪ 1/4" color CCIQ II camera
▪ Pixel Size: 5.6 x 5.6um
▪ Effective Image Area: 3.6288 x 2.7328mm
▪ Pixel: 648 x 488 (NTSC/PAL)
▪ Sensitivity: 12.5 [V/Lux.sec]
▪ Image Transfer Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
▪ Lens: 3.6mm/F2.0
▪ Dimension(mm): (D)22x19

1/4" Color CMOS Mini Camera MO-B35506

▪ 1/4" color CCIQ II camera
▪ LED: white LED, IR 940nm LED, IR 850nm LED -order in advance
▪ Pixel Size: 5.6 x 5.6um
▪ Effective Image Area: 3.6288 x 2.7328mm
▪ Pixel: 648 x 488 (NTSC/PAL)
▪ Sensitivity: 12.5 [V/Lux.sec]
▪ Image Transfer Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
▪ Dimension(mm): (D)7.7(board type); (D)8(tube type)

The 1/18-inch OV6946 Color CMOS Camera MO-B1001, MD-B1001

• The world's smallest camera
• Low power consumption
▪ 1/18" Color CMOS (OV6946)
▪ Pixel size: 1.75um x 1.75um
▪ Shutter speed: 1/30 sec.
▪ Frame rate: 400(H) x 400(V) @30fps
▪ Sensitivity:1000mV/Lux-sec
▪ Dimensions(mm):(D)1.48mm(120 degree)
MISUMI 1/18" CMOS (OV6946) image camera with 400x400 pixel and size is 1.6mm only, tiny dimension perfect for medical endoscopes, borescopes or other small diameter inspection devices.

5.0 Mega Dual Camera Module/ Micro USB MD-TCAM-20, MM-TCAM-20

▪ Max. f rame rate
Full 5.0M 2592 x 1944 /15 fps ,
FHD 1920 x 1080 /30 fps ,
SXGA 1280 x 960 /30 fps , HD 1280 x 720 /30 fps ,
VGA 640 x 480 /30 fps
▪ pixel size: 1.4um x 1.4um
▪ Image sensor: 1/4" digital QSXGA CMOS Color & B/W Camera Module
▪ Image area: 3.651 x 2.744mm
▪ Scan mode: progressive
▪ Sensitivity: 5100 e-/lux.sec(color); 600mV/Lux-sec(B/W)
▪ Dynamic range: 63 dB(color); 67 dB @ 8x gain(B/W)
▪ UVC format: MJPEG
▪ Lens: f 3.87mm/F2.8-auto focus
▪ Interface: USB 2.0 (compliant with USB video class 1.1 standard)
▪ input: DC 5V (USB)/ 170mA(working)
▪ input: DC 5V (USB)/ 250mA(working)
▪ Operating system: Windows 7, Windows 8, MAC OS, Linux
(windows7 operating system in use, you need to install MJPG decoders.)
▪ Dimension(mm): 29.9 x 49.8 x 7.6

1/3.7" Color CCIQ Camera MO-B5511-3D, MO-B5511-2ES

▪ Pixel: 648(H) x 488(V) (NTSC/PAL)
▪ Pixel size: 6 um x 6 um
▪ Effective image area: 3.8 mm x 2.9 mm x 4.86 mm
▪ Resolution: 480 TV Line(NTSC / PAL)
▪ Sensitivity: 8.2 [V/Lux.sec]
▪ SNR: 47 [dB]
▪ Dynamic range: 63.3 [dB]
▪ Lens:
MO-B5511-3D: 3.9mm / F2.8(63 degree)
MO-B5511-2ES: 2.3mm/F2.6 (120 degree)
▪ Power: DC 5~12 V
▪ Dimension(mm):10.7x10.7

1/4" Color CCIQ Super Slim Camera MO-B35577

• 6.9x6.9mm super slim surveillance camera!
▪ 1/4" Color CCIQ Camera Module
▪ Pixel: 648(H) x 488(V) (NTSC / PAL)
▪ Pixel Size: 5.6 x 5.6um
▪ Effective Image Area: 3.6288 x 2.7328mm
▪ Resolution: 400 TV Line(NTSC / PAL)
▪ Sensitivity: 12.5 [V/Lux.sec]
▪ SNR: 46 [dB]
▪ Dynamic range: 62 [dB]
▪ Power: DC 3.3~5V
▪ Dimension(mm): 6.9x6.9

HD Super Slim Camera MD-B4109U

▪ 1/4" WXGA HD 720P camera
▪ Scan mode: progressive
▪ Pixel:
1280 x 720 /YUV 10fps/ MJPEG 30fps/H.264 24fps
640 x 480 /30 fps; 640 x 360 /30 fps
320 x 240 /30 fps; 320 x 180 /30 fps
▪ Pixel size: 3um x 3um
▪ Image area: 3888um x 2430um
▪ S/N ratio: 39dB
▪ Sensitivity: 3300mV/(Lux)
▪ Dark current: 20mV/Sec
▪ Power: DC5V, 100mA(standby); 180mA(MJPEG); 210mA(H.264)
▪ Dimensions(mm): 36.5x9
▪ Other information: Type C connector/Micro USB OTG B type

LATEST NEWSLETTER

Get about new and popular products in MISUMI.
More

Subscribe our newsletter to get new information.

Follow Us
