Industrial inspection camera module   MO-S5555-6F
Ultra tiny camera module come telescope !
 1/3.7" CCIQIII color CSM camera
 Effective image area: 3.8(H) x 2.9(V) x 4.86(D)
 Pixel: 648 x 488 (NTSC & PAL )
 Resolution: horizontal 480 TV Lines
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47.0 [dB]
 Lens:6.34mm/F4.4
 Power: DC 5~12V

Perfect for
1. Disaster Rescue: earthquake, tornado, hurricane, snow avalanche, fire, flood
2. Law Enforcement: police, detective. Record criminal evidence.

Ultra mini camera + IR 940nm LED light !! & Low power consumption   MO-B9702L-105
PDF FILE
 IR 940nm LED light !! & Low power consumption (50mA)
 1/18" (NTSC) Color CMOS Camera
 Pixel: 320 x 240 QVGA
 Lens: 0.77 mm /F 3.0
Application perfect for Endoscope module and inspection.

1/3.7" COLOR CCIQ III Camera   MO-D5510-2V
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Effective Pixel: 648(H) x 488(V)(EIA / CCIR)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 480 TV Lines
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Lens: 2.8mm/F3.9
 Focal distance: infinity
 Power Consumption: 5~12V
 Dimension: 10.5 x 10.5mm

Perfect for
Car rearview, image mark

The Smallest DVR Module Of The World   MP-202
PDF FILE
The Smallest DVR Module Of The World
 Video Input: NTSC ONLY
 Video Input: 1 Channel
 Audio Input: 1 Channel
 Video Output: NTSC/PAL 1 Channel
 Audio Output: 1 Channel
 Video Processing: Chipset DSP Processor
 Compression: MPEG4 format
 Snapshot: JPG IMAGE 640x480
 Control: on board key, IR remote control
 Built-in memory 4G, 8G, 16G, 32G(optional)
 Display Frames: 30 FPS 640x480
 Recording Frame: 30 FPS 640x480
 Recording Mode: Normal, Loop, IR remote control
 Power Input: DC 5V 300mA
 Power Output: DC 5V 110mA(DC 12V Optional)
 Dimensions: 14.5 x 70 x 7.9(mm)
The Smallest DVR Module Of The World:MP-202 The Smallest DVR Module Of The World:MP-202 The Smallest DVR Module Of The World:MP-202
The Smallest DVR Module Of The World:MP-202

MINI Mobile Digital Video Recorder   MPM-3501
PDF FILE
 1/4" Color CCIQ II Helmet Camera
 316K (NTSC/PAL)
 Horizontal 400 TV Lines
 Lens: 3.9mm/F2.8
 0.1 Lux/ F1.2
 With Microphone
Mini DVR + Wireless Transmitter   KDM-AB2-P
PDF FILE
Mini DVR + 2.4GHz/200mW Wireless Transmitter
 SD/MMC. card slot (support up to 32GB)
 Video out/in: TV out /AV in (NTSC PAL)
 AV recorder resolution: 640 x 480(VGA) / max 30 fps.

Perfect for
Law enforcement, Spy tool
Idea! Industrial Inspection Wireless Camera Module   MS-6476-3T-C01
PDF FILE
Concept: Comparison, identification, distance measurement
 1/4" B/W CCD Camera
 white Light LED X 4
 290k (CCIR) / 250k (EIA)
 420 TV Lines over
 3.1mm/F3.4 Cone Lens
 Power Supply :DC 5V
 Dimension(mm) :85 x 70 x 10(mm)
 Battery Working time about 2 hr
 2.4GHz Wireless 10 mW
 With 2.4GHz Wireless RECEIVER MSR-A2430D
1/4" Color CMOS Camera (LED)   MO-N1505L
PDF FILE
 Horizontal 400 TV Lines
 Pixel: 648x488
 Lens: 3.9 mm/F 3.9
 LED x 4
1/4" Color CMOS Camera (LED)  MO-T1505L
PDF FILE
 Horizontal 400 TV Lines
 Pixel: 648x488 , With 3.4 mm/F 3.4 lens,
 Sizes:(D)8.2 x 13 mm

Customize Camera. Tube camera.   MO-T1050L-62
PDF FILE
The smallest Handle Camera
 Built-in Lens:1.43mm F3.2,
 Frame rate: 30 @ 400 x 400,
 Camera head: 5 mm (O.D.)

wireless ultra mini camera   MO-B3506PWB01-P1
PDF FILE
 Frequency: 1.2GHz 1080MHz
 Power Output 10 mW, Pixel: 648x488 ,
 With 3.1 mm/F 3.4 lens
MO-L805 Customize Camera  Snake camera MO-L805
PDF FILE
Snake camera DEMO
 Cable length be ordering in advance by customer request
Customize Camera. Motion detect DVR. SDHC 32GB  MP-CZ01
PDF FILE
Mobile Digital Video Recorder Camera
 Motion detect mode + MO-T3506L + Microphone + 4200 mAh battery DEMO
 Motion detection to trigger Record 30 seconds, loop overwrite Mode

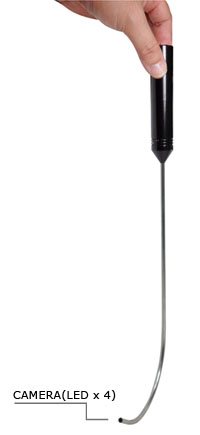

Customize Camera. Tube camera. With LED Light x 4  MO-B4506LC
PDF FILE
Tube camera
 AWB:5000K ,Lens not fixed, is adjustable, LED Light x 4

Customize Camera. Board camera. With LED Light x 4  Board camera
PDF FILE
Board camera
 camera will be locking "up" or "down"
 Lens focus 5cm~60cm(Ordering in advance), LED Light x 4

Customize Camera. Tube camera.   MO-T3506W-4F
PDF FILE
Tube camera
 CCIQ II ,Built-in Lens:4.0mm/F2.0
Customize Camera. CCIQ II camera.   MO-S3588-N04
PDF FILE
CCIQ II for endoscope camera module application only
 CCIQ II Module ,With M10x P 0.5 Lens holder

Customize Camera. Tube camera.   MO-L3509-25
PDF FILE
Tube camera
 Industrial inspection microscope camera
 Built-in Lens:25mm, Large depth of field, Large F-Stop
wireless ultra mini camera   MO-S3510W-3A-P01
PDF FILE
wireless ultra mini camera
 Frequency: 2.4GHz 2414MHz
 Power Output 10 mW, Pixel: 648x488 , With 3.3 mm/F 2.0 lens

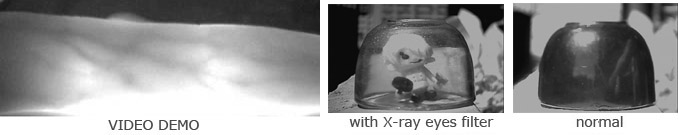

1/4" B/W CMOS Camera +IR 850nm LED & X-ray eyes  MO-T8766ZLSW-P02
PDF FILE
 1/4" B/W CMOS Camera
 Pixels: 648 x 488 (N/P)
 Frame Rate:60 field for NTSC; 50 field for PAL
 Video Output CVBS
 Horizontal 400 TV Lines
 2.1 mm/F 2.5 lens
 Focal distance 5 cm (approximately)
 Power Supply :5~12V
 Dimension(mm): (D) 8.2 mm x 19 mm
1/3" Color CCIQ III Camera  MO-B5610
PDF FILE
 1/3" Color CCIQ III Camera
 Memory up to 16 K
 Horizontal 480 TV Lines
 Pixel: 728x488 , With 3.7mm/F 2.0 , Sizes:10.4 x 10.4 x 22.3 mm

Hi-res. download Catalogue Catalogue
ultra mini camera + IR 850nm LED light !! & mini DVR  MPS-SL88L-2S-P01
PDF FILE
  MO-SL88-2S+MP-202M-4G (board only)+ re-chargeable Battery (NP-120)
 IR 850nm LED x 6 !! & Ultra mini DVR (Built-in memory Micro SD card 4G)
 1/4" (PAL) Color CMOS Camera  Pixel: 648(H) x 488(V) ,
 With 2.1 mm /F 2.5 Lens

Hi-res. download Catalogue Catalogue
Snake camera + IR 850nm LED light !!  MQ-T85716L-3W-C01
PDF FILE
 IR 850nm LED x 3 !!
 1/4" Color CMOS Camera
 Pixel: 648(H) x 488(V)
 With 2.84mm / F6.0 Lens
See through 720p camera + IR LED x 10!!  MD-N97010LXR
PDF FILE
 With special clip, camera stays tight even when running and jumping.
A very convenient gadget for police on duty.

 IR 940nm LED x 10; IR 850nm LED x 10 (ordering in advance)!!
 1/4" B/W WXGA HD 720P camera
 Pixel: 1280 x 720 /YUV 10fps/ MJPEG 1~30fps/ H.264 1~24fps ; 640 x 400 1~30 fps; 320 x 200 1~30 fps
 With 4.3mm / F2.0 Lens

image demo

1/13" Color CMOS LED camera!!  MO-T13R3L-50-P05
PDF FILE
white LED x 1 !!
 1/13" Color CMOS Camera
 Pixel: 642(H) x 484(V) ,
 With 1.498mm / F5.0 Lens ,
 Dimension(mm): 6.2 x 11.5 x 7.8
1/3" Color CMOS Hidden UVC camera!  MM-HS18588
PDF FILE
Easy Hidden!!
 1/3" Color CMOS 960H
 Pixel: 976(H) x 496(V)
 With 3.9mm / F3.9 Lens

LED Strip  CZ-300L
PDF FILE
 LED Strip
 DC 5V power input (USB 2.0)
 LED strip length can be customized.
 Perfect for: Traffic police, Road construction,any sport at night..etc.

1/10" Color CMOS Camera  MO-B1003-30-N01
PDF FILE
 1/10" Color CMOS Camera
 30 degree Lens
 Dimension(mm): (D)4.4

1/13" side view LED USB camera!!  MD-S13R3-90-01
PDF FILE
Waterproof IP65
 1/13" Color CMOS Camera
 Pixel: 720(H) x 576(V) ,
 With 1.2mm/F2.5 Lens
 Driver free (USB Video Class)(windows XP, Vista, win7, Linux any version, MAC OS, Google+ Hangouts)Plug & Play
 Interface: USB 2.0

1/2.7" Color CMOS Camera with vari-focal lens  MD-T2013-286020
PDF FILE
2 Megapixel, with vari-focal lens, zoon in or zoom out Tool
 1/2.7" Color CMOS Camera
 1920x1080/30fps H.264, MJPEG; 5fps YUV
 1280x720/30fps H.264, MJPEG; 10fps YUV
 Lens: 2.8~6.0mm (M12xP0.5)MTF:MP (Mini manual vari-focal lens)
 Driver free (USB Video Class)(windows XP, Vista, win7, Linux any version, MAC OS, Google+ Hangouts)Plug & Play
 Interface: USB 2.0

Ultra Mini Slim FPC Camera Module NEW CCIQ II / with LED x 8   MO-T100L-3S
PDF FILE
 1/4" color CCIQ II FPC camera board
 LED x 8 (LED optional by customer request)
 IR LED light: 940nm or 850nm
 Pixel: 648 x 488 (NTSC/PAL)
 0.1Lux / F1.2
 Image Transfer Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
 Lesn: 3.4mm/F3.4 (3S)
 Dimensions(mm): (D)8 x 9.5 x 95(board)
