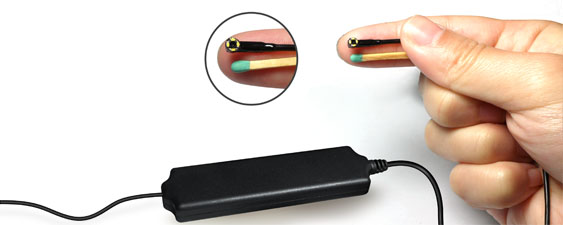

The smallest cam of the world MO-SL1003-62

Zoom In
Ultra smallest camera +Cable length:150 cm!!
 1/10" Color CCIQ II Pico camera (MO-SL1003-62)
 Pixel: 400 x 400 (NTSC / PAL )
Shutter Speed :
1/670 000 ~ 1/60 [sec](NTSC)
1/560 000 ~ 1/50 [sec].(PAL)

 LENS: 1.43mm F3.2
 3300mV/Lux
 Size:3.5(mm)only
Hi-res. download Catalogue

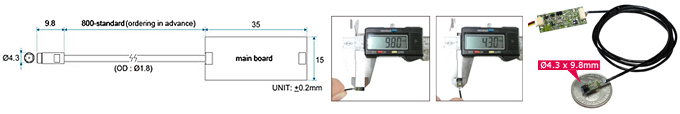

The smallest cam of the world MO-T1003L, MO-B1003, MO-T1003-120, MO-B1003-62

Zoom In
NEW INNOVATION !!
MODEL Built-in Lens Diameter LED Light
MO-B1003-62 1.43mm/F3.2 3.4 mm ONLY NO
MO-T1003-120 1.11 mm/ F 2.8 3.6 mm ONLY NO
MO-B1003 NO 2.5 mm ONLY NO
MO-B3003: AGC OFF

cable length(sensor board to main board):
80CM-Standard (Ordering in advance)
1/10" Color CCIQ II Pico camera
white LED light x 4
Pixel: 400 x 400 (NTSC / PAL )
3300mV/Lux
Shutter Speed :
1/670 000 ~ 1/60 [sec](NTSC)
1/560 000 ~ 1/50 [sec].(PAL)
Sensor board:
(D)3.8 x 11.2 (mm)
Main board:
85 x 20(mm)
Video Demo MO-B1003
Hi-res. download Catalogue

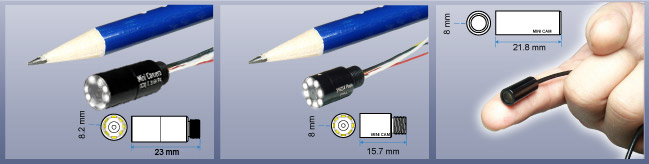

1/4" CCIQIII ultra mini invisible IR light camera MO-S9700U-3D

Zoom In
ultra mini invisible camera (invisibility IR LED x 16)
 1/4" CCIQIII B/W Camera(MO-S9700)
 1/4" CCIQIII color Camera(MO-S9500)
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Pixel : 648 x 488 ( EIA/NTSC & CCIR/NTSC )
 Horizontal 550 TV Lines(MO-S9700)
 Horizontal 480 TV Lines(MO-S9500)
 Image Transfer Rate: 60 field/sec (EIA/NTSC) , 50 field/sec (CCIR/PAL)
 0.006 Lux/ F1.2(MO-S9700)
 0.02 Lux/ F1.2 (MO-S9500)
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47.0 [dB]
 3.9mm F2.8
 Power Consumption:DC 5~12V
 Dimension(mm) :9.6 mm x 18 mm
Hi-res. download Catalogue
1/4" Color & B/W CMOS Camera MO-S1255W,MO-S1355W, MO-S1555W, MO-S1555J, MO-S1555LW-3S, MO-S1555LJ, MO-S1755W

Zoom In
Ultra slim camera + mini white LED light!!
Chip-Scale-Module!!
 1/4" Color CCIQ III Camera(MO-S1255 & MO-S1555 Series)
 1/4" B/W CCIQ III Camera(MO-S1355 & MO-S1755 Series)
  White LED x 4 (MO-S1555L)
  Pixel Size:5.55 um x 5.55 um
 648 x 488 ( NTSC-EIA / PAL-CCIR )
 HI Resolution: 400 TV Lines
 Min. Illumination: 0.1Lux /F 1.2 20IRE
 Sensitivity:3.53 [V/Lux.sec]
 Max. Frame Rate:
60 field/sec(NTSC-EIA) , 50 field/sec CVBS(PAL-CCIR)
 Built-in Lens: 3.4mm/F3.4(M5.0mm/P0.35)
 power input: DC2.8 only (MO-S1255W & MO-S1355W)
 power input: DC 2.8~5V(MO-S1555 & MO-S1755 SERIES)
MO-S1255W-3S
MO-S1355W-3S		 MO-S1555W-3S
MO-S1755W-3S		 MO-S1555J-3S
MO-S1755J-3S		 MO-S1555LW-3S
MO-S1755LW-3S		 MO-S1555LJ-3S
MO-S1755LJ-3S
Hi-res. download Catalogue
1/3" CCIQ III 960H MINI CAMERA MO-S8610-3C, MO-S8610-4C, MO-S8610-3F

Zoom In
  650TV Lines CCIQ III Camera !
up to 960 horizontal lines of vertical resolution !
 1/3" Color CCIQ III 960H HI Res Camera
 976 (H) x 496(V)(NTSC / PAL)
 HI Resolution: Horizontal 650 TV Lines
 Pixel Size: 5.00 um x 7.40 um
 Effective Image Area: 4.88 mm x 3.67 mm
 Max. Frame Rate: 60 field/sec(NTSC-EIA), 50 field/sec(PAL-CCIR) CVBS
 Power Supply: DC 5~12 V
 Dimension(mm): 11 mm x 11 mm

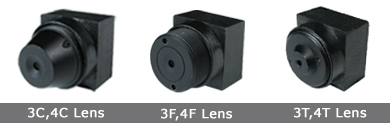

Lens:
(3C) 3.7mm / F2.0
(4C) 4.3mm / F2.0		 Lens:
(3F) 3.7mm / F2.0
(4F) 4.3mm / F2.0
Hi-res. download Catalogue

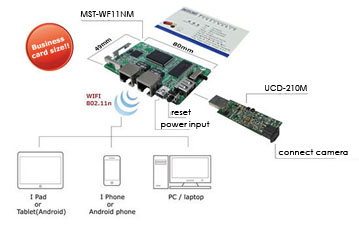

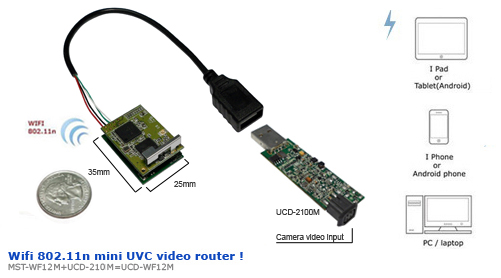

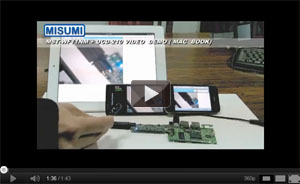

WIFI 802.11n MINI UVC VIDEO ROUTER MST-WF12M, MST-WF12ME, UCD-WF12M

Zoom In
WIFI 802.11n UVC VIDEO MINI ROUTER
Almost coin size!!

Use with UCD-210, Application of video wireless WIFI transfer to "iPAD , iPhone, Android Tablet, Android Phone, PC "
 1T1R Mode WAN WPS
 Wireless LAN 1T1R MODE
 Date rate 802.11n: up to 300Mbps
 802.11b: 11Mbps
 802.11g: 54 Mbps
 TCP Video MJPEG stream
640x480 up to 25fps
320x240 up to 30fps
160x120 up to 30fps
 Support windows XP, WIN 7, IPAD, OSX android
(Samba Server support need samba client APP)Audio support(RTSP)
 PCB Size Dimension(mm): 25(w)x35(L)X13(H)
 Power input 1: DC5V, 1.2A connector: micro USB
 Power input 2: DC 3.1~4.2V (Li-Ion BATTERY)
KIT:

Hi-res. download Catalogue

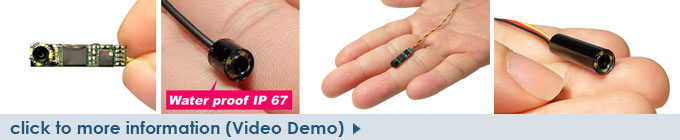

1/3" CCIQIII ultra mini invisible lens camera MO-R5910C-4F , MO-R5610C-4F

Zoom In
NEW innovation -
SPY mini invisible lens camera !! Waterproof IP 68!
 1/3" B/W CCIQ III invisible lens Camera(MO-R5910C)
 1/3" Color CCIQ III invisible lens Camera(MO-R5610C)
 MEMORY SIZE UP TO 16 K
 728(H) x 488(V) (NTSC-EIA / PAL-CCIR)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 550 TV Lines (MO-R5910C)
 Resolution: Horizontal 480 TV Lines (MO-R5610C)
 0.05 Lux/ F1.2
 Frame Rate:
60 field/sec (NTSC-EIA ) , 50 field/sec CVBS ( PAL-CCIR)
 Sensitivity: 13.8 [V/Lux.sec]
 Dynamic Range: 63.7 [dB]
 S/N ratio: 46.4 [dB]
 Built-in lens:
4.0mm/F2.0
 Power : DC 5 ~12V
 Power Consumption: 80mA ( MAX )
 Dimension: (D)10 x 28 mm
Hi-res. download Catalogue
1/3" & 1/4'' CCIQ III MINI SPY CAMERA MO-S6620E, MO-S6621E, MO-S6622E, MO-S6623E, MO-S6624E, MO-S6625E, MO-S6631E

Zoom In
Covert Spy Camera! With 5D OSD Key !!
spy camera
Model MO-S86XX MO-S66XXE MO-S46XX MO-S55XX MO-S35XX
Sensor 1/3" Color CCIQ III
960H Camera		 1/3" Color CCIQ III
D1 HI Res Camera		 1/3" Color CCIQ III Camera 1/4" Color CCIQ III Camera 1/4" Color CCIQ II Camera
Pixcel 976 (H) x 496(V)
(NTSC / PAL) 		756(H) x 504(V) D1 (NTSC / PAL) 728(H) x 488(V)
(NTSC / PAL)		 648(H) x 488(V) (NTSC / PAL)
Pixcel size 5.00 um x 7.40 um 6.35 um x 7.4 um 6.35 um x 7.4 um 6 um x 6 um 5.55 um x 5.55
HI Resolution 650 TV Lines 520 TV Lines 480 TV Lines
Sensitivity 11.9 [V/Lux.sec] 13.8 [V/Lux.sec] 8.2 [V/Lux.sec] 3.16 [V/Lux.sec]
Min. Illumination 0.05Lux /F 1.2 20IRE 0.05Lux /F 1.2 20IRE 0.02Lux /F 1.2 20IRE
Max. Frame Rate 30 fps CVBS
(NTSC & PAL)		 60 field/sec(NTSC-EIA),
50 field/sec(PAL-CCIR) CVBS
Built-in Lens 4.0 mm/F2.0
Power Supply DC 5~12 V
Dimension(mm) 11 x 11 mm 12.8 x 12.8 mm 11 x 11 mm

Hi-res. download Catalogue
MINI Mobile Digital Video Recorder MP-400E

Zoom In
 MINI Mobile Digital Video Recorder
 IR remote control
 SD/SDHC card slot (support 128 GB SDHC class 4 over )
 H.264 REC D1 720x480 VIDEO & Snapshot JPG IMAGE
 date and time stamping
 loop overwrite recording or continuous recording
 Special Power Saving button (monitor sleep mode)
 Extend Interface port:
 INPUT:2.5mm PHONE JACK Direct supply DC Power 5V output for Camera and Vdieo composite input.
 OUTPUT:3.5mm PHONE JACK VIDEO AUDIO composite output
 POWER IN, PC CONNECT: MINI USB 2.0
 RTC Stamp embedded in Video stream
 AV recorder resolution : 720x480(D1) / max 30 fps.
 Display :2.5" TFT
 AV Line in/out with 2.5mm Phone Jack
 detachable, rechargeable Li-ion battery NP-60 (1030mAh)
 5V DC adapter (USB port) / USB cable
 Dimension:95.5mm x 63.5 mm x 21 mm
Hi-res. download Catalogue

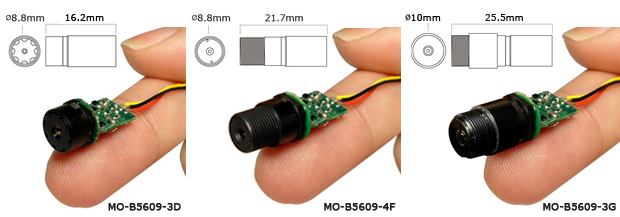

1/3" Color & B/W CCIQ II Camera MO-B5609-4F, MO-B5909-4F , MO-B5609-3D, MO-B5909-3D

Zoom In
1/3" Color CCIQ III Camera SENSOR BOARD !!
 1/3" Color CCIQ III Camera SENSOR BOARD(MO-B5609)
 1/3" B/W CCIQ III Camera SENSOR BOARD(MO-B5909)
 MEMORY SIZE UP TO 16 K
 728(H) x 488(V) (NTSC-EIA / PAL-CCIR)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 480 TV Lines (MO-B5609)
 Resolution: Horizontal 550 TV Lines (MO-B5909)
 0.05 Lux/ F1.2
 Frame Rate:
60 field/sec (NTSC-EIA ) , 50 field/sec CVBS ( PAL-CCIR)
 Sensitivity: 13.8 [V/Lux.sec]
 Dynamic Range: 63.7 [dB]
 S/N ratio: 46.4 [dB]
 Built-in lens:
4.0mm/F2.0(4F Lens)
3.9mm/F2.8(3D Lens)
 Focal distance: infinity
 Power Consumption: 3.3~5V
 Dimension: (D)8.8mm
Hi-res. download Catalogue

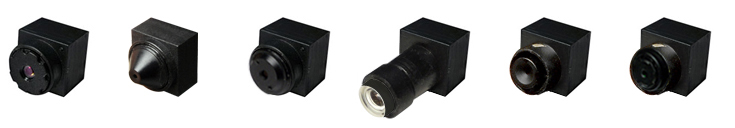

1/3" CCIQ III MINI CAMERA MO-S6600E-3C , MO-S6600E-4D ,MO-S6600E-5F ,MO-S6600E-3T

Zoom In
1/3" Color WDR OSD CCIQ III Camera
with WDR image sensor
 1/3" Color CCIQ III D1 HI Res Camera

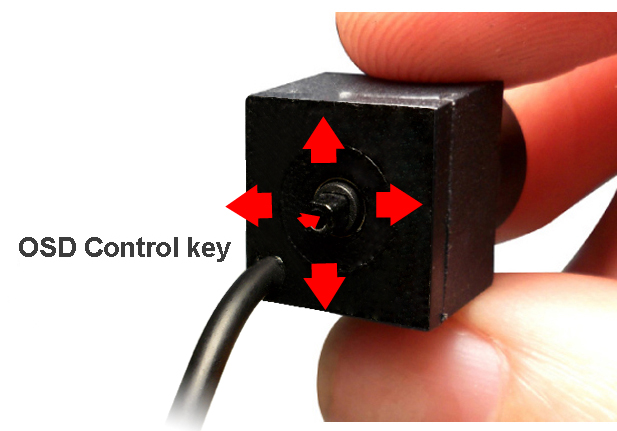

 With 5D OSD Key
(EXPOSURE, WDR, AGC, WB brightness contrast sharpness color gain NR mirror)
 756(H) x 504(V) D1 (NTSC / PAL)
 HI Resolution: Horizontal 520 TV Lines
 Pixel Size: 6.35 um x 7.4 um
 Effective Image Area: 4.80 mm x 3.73 mm
 Sensitivity: 11.9 [V/Lux.sec]
 Min. Illumination: 0.05Lux /F 1.2 20IRE
 Max. Frame Rate: 30 fps CVBS (NTSC & PAL)
 Built-in Lens:
4.8mm/F4.5(4D Lens)
5.0mm/F3.5(5F Lens)
3.1mm/F3.4(3T Lens)
3.9mm/F2.8(3D Lens)
3.7mm/F2.0(3C Lens)
 Power Supply: DC 5~12 V
 Dimension(mm): 12.8 x 12.8 mm

WDR technology can potentially create a much better photograph of the scene/WDR light environment (tunnel) :
Hi-res. download Catalogue

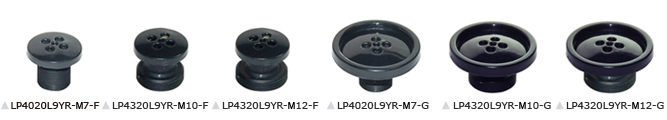

PIN HOLE LENS KIT LP4020L9YR-7-G, LP4320L9YR-10-G, LP4320L9YR-12-G, LP4020L9YR-7-F, LP4320L9YR-10-F

Zoom In

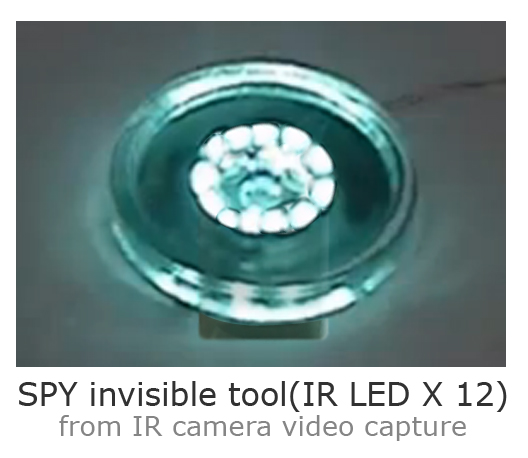

Spy invisible tool ! (with IR 940nm LED)


 LENS OF COLOR CAMERA (with IR 940nm LED x 12)
  LP4020L9YR-7-G
f 4.0mm F2.0 Lens ,M7 x P0.5, DC 3.3V for LED, With HIDDEN LENS Cover ( LC-181L )
  LP4320L9YR-10-G
f 4.3mm F2.0 Lens ,M10 x P0.5, DC 3.3V for LED, With HIDDEN LENS Cover ( LC-181L )
  LP4320L9YR-12-G
f 4.3mm F2.0 Lens ,M12 x P0.5, DC 3.3V for LED, With HIDDEN LENS Cover ( LC-181L )
  LP4020L9YR-7-F
f 4.0mm F2.0 Lens ,M7 x P0.5, DC 3.3V for LED, With HIDDEN LENS Cover ( LC-131L )
  LP4320L9YR-10-F
f 4.3mm F2.0 Lens ,M10 x P0.5, DC 3.3V for LED, With HIDDEN LENS Cover ( LC-131L )
  LP4320L9YR-12-F
f 4.3mm F2.0 Lens ,M12 x P0.5, DC 3.3V for LED, With HIDDEN LENS Cover ( LC-131L )
Video Demo

MO-S9531U
MO-S9581U
 1/4" CCIQIII color Camera
 IR 940 nm LED x 12
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Pixel : 648 x 488 ( NTSC & PAL )
 Horizontal 480 TV Lines
 Image Transfer Rate:
60 field/sec (NTSC) , 50 field/sec (PAL)
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47.0 [dB]
 4.0mm F2.0
 Power Consumption:DC 5~12V
Dimension(mm):8.6 x 8.6 mm		 MO-S9731U
MO-S9781U
 1/4" CCIQIII B/W Camera
 IR 940 nm LED x 12
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Pixel : 648 x 488 ( EIA & CCIR )
 Horizontal 550 TV Lines
 Image Transfer Rate:
60 field/sec (EIA) , 50 field/sec (CCIR)
 0.006 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47.0 [dB]
 4.0mm F2.0
 Power Consumption:DC 5~12V Dimension(mm):8.6 x 8.6 mm
Hi-res. download Catalogue

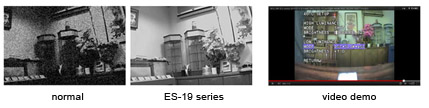

1/4" Color Exview HAD CCD II (OSD) Camera ES-1971E

Zoom In
1/4" Color EFFIO-S + EXview HAD CCD II (OSD) Camera
SONY Super HI-Resolution WDR Camera
 Low-light Function :AGC Slow-shutter DNR(Noise Reduction)SENS-UP increase minimum illumination
 Slow Shutter
 Camera to OSD board up to :25CM!!
 Pixel: 976x582(PAL), 976x494 (NTSC)
 Resolution: Horizontal 650 TV Lines
 Sensitivity: 2450 mV
 Minimum Illumination: 0.001Lux/F2.0
 OSD 5D Key(OSD, WDR, 2D Noise Reduction, Privacy Mask, Motion Detection, Slow Shutter )
 Wide dynamic range (WDR)
 Advance 2D &3D noise reduction (DNR)
 Auto tone reproduction function (ATR)
 Auto white balance
 Auto back light compensation
 Auto gain control
 Built in multi-language OSD
 Automatic Compensation by Digital Noise Reducer
1/3" Exview HAD CCD II Snake Camera(ME-1771E)
Hi-res. download Catalogue

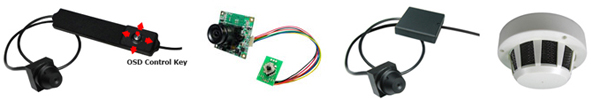

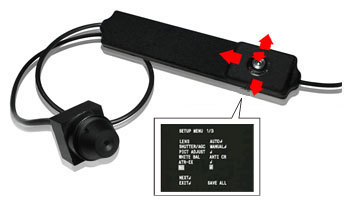

1/3" Color Exview HAD CCD II (OSD) Camera ME-1771E, ME-1745E

Zoom In
1/3" Color Exview HAD CCD II (OSD) Camera
SONY Super HI-Resolution WDR Camera
 Pixel: 976x582(PAL), 976x494 (NTSC)
 Resolution: Horizontal 650 TV Lines
 Sensitivity: 2450 mV
 Minimum Illumination: 0.001Lux/F2.0
 OSD 5D Key(OSD, WDR, 2D Noise Reduction, Privacy Mask, Motion Detection, Mechanical Iris Automatic adjust. Slow Shutter )for ME-1732E, ME-1771E
 Automatic Compensation by Digital Noise Reducer
1/4" Exview>HAD CCD II Snake Camera(ME-1971E) coming soon.....
Hi-res. download Catalogue

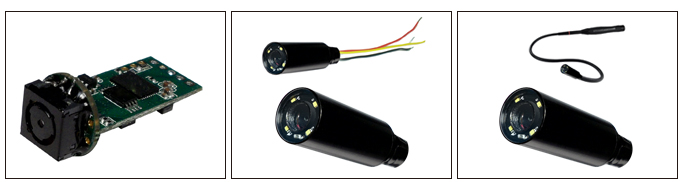

1/4" AF (Auto Focus) VCM CCIQIII CAMERA MF-200, MF-T200L, MF-L200

Zoom In
1/4" AF (Auto Focus) VCM CCIQIII CAMERA !!
 1/4" AF (Auto Focus) VCM CCIQIII CAMERA
 Effective pixels: 640 x 480 (N/P)
 Frame Rate:60 field for NTSC; 50 field for PAL
 AGC Auto,AES Auto
 Video Output CVBS
 Lens View Angle(Fov) 65 degree
 Lens F/NO 3.0 +- 5%
 Focal Length 7 ~ 35cm
 Power Supply 5V
 Power Consumption 250mA, 5V(1.25w)
 Dimension(mm): (D)12.5 mm x 28.6 mm(board only)
 Dimension(mm): (D)13.5 mm x 41.6 mm(Tube & Snake camera)
MF-200(Board only) MF-T200L(Tube camera) MF-L200(Snake camera)
Hi-res. download Catalogue
1/4" B/W CCIQ III Camera MO-S5788-3D, MO-S5788-2V, MO-S5788-3T, MO-S5788-4T, MO-S5788-2S, MO-S5788-3K

Zoom In
High Resolution 550 TV Lines and
0.02 Lux/F1.2 Illumination, mini camera!!
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Effective Pixel: 648(H) x 488(V)(EIA / CCIR)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 550 TV Lines
 0.006 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Focal distance: infinity
 Power Consumption: 5~12V
 Dimension: 8.6 x 8.6 mm
MO-S6788 with genlock(optional)
3D LENS
(3.9mm/F2.8)		 2V LENS
(2.8mm/F3.9)		 3T LENS (3.1mm/F3.4)
4T LENS (3.9mm/F3.9)		 2S LENS
(2.1mm/F2.5)		 3K LENS
(2.8mm/F3.9)
Hi-res. download Catalogue
1/4" Color CCIQ III Camera MO-S5588-3D, MO-S5588-2V, MO-S5588-3T, MO-S5588-4T, MO-S5588-2S, MO-S5588-3K

Zoom In
High Resolution 480 TV Lines and
0.02 Lux/F1.2 Illumination, mini camera!!
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Effective Pixel: 648(H) x 488(V)(EIA / CCIR)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 480 TV Lines
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Focal distance: infinity
 Power Consumption: 5~12V
 Dimension: 8.6 x 8.6 mm
MO-S6788 with genlock(optional)
3D LENS
(3.9mm/F2.8)		 2V LENS
(2.8mm/F3.9)		 3T LENS (3.1mm/F3.4)
4T LENS (3.9mm/F3.9)		 2S LENS
(2.1mm/F2.5)		 3K LENS
(2.8mm/F3.9)
Hi-res. download Catalogue
MINI MICROPHONE MS-6200, MS-6200PC, MS-6200ALC

Zoom In
MINI-MICROPHONE!!
 MS-6200
 MS-6200PC ( PC MICROPHONE)
 MS-6200ALC ( ALC function /automatic level control )
 Frequency: 20 -16000Hz
 S/N ratio : more than 58dB
 Signal: audio output RCA male(for MS-6200 , MS-6200ALC)
 Power: 12V DC in +2.1-5.5 mm(for MS-6200)
 with 3M double-sided tape easy installation
 25x 8 mm
Hi-res. download Catalogue
1/4" Color & B/W CCIQ II Camera MO-S5510-3T, MO-S5510-4T ,MO-S5510-3C, MO-S5710, MO-S5710-3T

Zoom In
High Resolution 480 TV Lines and
0.02 Lux/F1.2 Illumination, mini camera!!
 MO-S5510(COLOR)
 MO-S5710(B/W)
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Effective Pixel: 648(H) x 488(V)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal
480 TV Lines (MO-S5510)
550 TV Lines (MO-S5710)
 0.02 Lux/ F1.2(MO-S5510)
 0.006 Lux/ F1.2(MO-S5710)
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Focal distance: infinity
 Power Consumption: 5~12V
 Dimension: 11 x 11 mm
Lens:
(3C) 3.7mm / F2.0
(4C) 4.3mm / F2.0		 Lens:
(3F) 3.7mm / F2.0
(4F) 4.3mm / F2.0		 Lens:
(3T) 3.1mm/F3.4
(4T) 3.9mm/F3.9
Hi-res. download Catalogue
1/3" CCIQ III MINI CAMERA MO-S4610-3C, MO-S4610-4C, MO-S4610-3F, MO-S4910-4F, MO-S4910

Zoom In
1/3" Color & B/W CCIQ III D1 HI Res Camera
 1/3" Color CCIQ III D1 HI Res Camera(MO-S4610 Series)
 1/3" B/W CCIQ III D1 HI Res Camera(MO-S4910 Series)
 728(H) x 488(V)(NTSC--EIA / PAL-CCIR)
 HI Resolution: Horizontal 480 TV Lines (MO-S4610 Series)
 HI Resolution: Horizontal 550 TV Lines (MO-S4910 Series)
 Pixel Size: 6.35 um x 7.4 um
 Effective Image Area: 4622.8 um x 3611.2 um
 Sensitivity: 13.8 V/Lux.sec
 Dynamic Range: 46.4 [dB]
 Min. Illumination: 0.05Lux /F 1.2 20IRE
 Max. Frame Rate: 60 field/sec(NTSC-EIA), 50 field/sec(PAL-CCIR) CVBS
 Power Supply: DC 5~12 V
 Dimension(mm): 11 mm x 11 mm
Lens:
(3C) 3.7mm / F2.0
(4C) 4.3mm / F2.0		 Lens:
(3F) 3.7mm / F2.0
(4F) 4.3mm / F2.0
Hi-res. download Catalogue

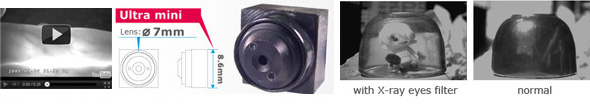

Hi- resolution X-ray eyes 1/4" CCIQ II Camera MO-S5788Z -3T, MO-S5788Z -8F , MO-S3788Z -3T, MO-S3788Z -8F

Zoom In
1/4" B/W CCIQ II X-ray eyes Camera
MO-S3788Z
 HI-resolution
1/4" B/W X-ray eyes CCIQ II Camera
 image Transfer Rate:
60 field/sec CVBS(EIA),
50 field/sec (CCIR)
 Pixel: 648x488 (EIA/CCIR)
 400 TV Lines
 0.06Lux/20 IRE
 Built-in Lens:
3.1mm/F3.4(3T Lens)
8.3mm/F2.4(8F Lens)
 Power Supply: DC 5~12 V
 Dimension: 8.6 x 8.6(mm)		 MO-S5788Z
 HI-resolution
1/4" B/W X-ray eyes CCIQ II Camera
 image Transfer Rate:
60 field/sec CVBS(EIA),
50 field/sec (CCIR)
 Pixel: 648x488 (EIA/CCIR)
 550 TV Lines
Sensitivity: 8.2 [V/Lux.sec]
Dynamic Range: 63.3 [dB]
 0.006Lux/20 IRE
 Built-in Lens:
3.1mm/F3.4(3T Lens)
8.3mm/F2.4(8F Lens)
 Power Supply: DC 5~12 V
 Dimension: 8.6 x 8.6(mm)
Hi-res. download Catalogue
1/4" Color Super Slim Camera MO-SL88-3D

Zoom In
Ultra-slim Mini Camera!!
 Effective Image Area: 3.596x 2.708mm (NTSC)
 Effective Pixel: 648(H) x 488(V)
 Pixel Size: 5.55um x 5.55 um
 Resolution: Horizontal 400 TV Lines
 0.6 Lux/ F1.2
 Dynamic Range: 63.5 [dB]
 S/N ratio: 45.6 [dB]
 Focal distance: infinity
 Lens: 3.9mm F 2.8
 Power Consumption: 2.8~5V
 Dimension: 8.5 x 8.5 x 6.2 mm
Hi-res. download Catalogue
1/13' CCIQ color camera MO-B13R4P, MO-T13R4L

Zoom In
1/13" Color CCIQ Ultra Tiny Camera
 1/13" Color CCIQ Camera
 White LED x 4 (MO-T13R4L)
 642 x 484(NTSC / PAL)
 Shutter Type: Electronic Rolling Shutter (ERS)
 Sensor Scan Mode: Progressive Scan
 S/N Ratio: 34dB
 Dynamic Range: 66 [dB]
 Frame Rate: 60 Field/sec(NTSC) , 50 Field/sec(PAL)
 Built-in Lens: 1.19mm / F 2.8
 Power Supply: Camera input: DC 3.3V~5V ,
 Dimension(mm): Sensor Board:(D)4.3 x9.8( mm)
+800(mm)+TV Output Control Board:15x35(mm) for MO-B13R4
 Dimension(mm): Sensor Board:(D)5 x17( mm)
+800(mm)+TV Output Control Board:15x35(mm) for MO-T13R4L
Hi-res. download Catalogue
WIFI 802.11n MINI UVC VIDEO ROUTER MST-WF11NM, UCD-WF11NM

Zoom In
WIFI 802.11n UVC VIDEO MINI ROUTER
Business card size!!
Use with UCD-210, Application of video wireless WIFI transfer to "iPAD , iPhone, Android Tablet, Android Phone, PC "
 RJ45 port x2 (1LAN, 1WAN), USB x1
 1LAN/1 WAN WPS
 Antenna Internal PIFA 2dBi antenna design
 Wireless LAN 2T2R MODE
 Date rate 802.11n: up to 300Mbps
 802.11b: 11Mbps
 802.11g: 54 Mbps
 TCP Video MJPEG stream
640x480 up to 25fps
320x240 up to 30fps
160x120 up to 30fps
 Support windows XP, WIN 7, IPAD, OSX android
(Samba Server support need samba client APP)Audio support(RTSP)
 PCB Size Dimension(mm): 80(w)x49(L)X13(H)
 Power connector DC5V, 1.2A connector: min USB
VIDEO DEMO
KIT:
Hi-res. download Catalogue
1/3" CCIQ III MINI CAMERA MO-S5610-4D ,MO-S5610-5F ,MO-S5610-3T, MO-S5910

Zoom In
 1/3" Color CCIQ III Camera SENSOR BOARD(MO-S5610)
 1/3" B/W CCIQ III Camera SENSOR BOARD(MO-S5910)
 Pixel: 728(H) x 488(V)(NTSC-EIA/ PAL-CCIR)
 Resolution: Horizontal 480 TV Lines(MO-S5610)
 Resolution: Horizontal 550 TV Lines(MO-S5910)
 Frame Rate: 60 field/sec(NTSC-EIA), 50 field/sec (PAL-CCIR)CVBS
 Min. Illumination: 0.05Lux /F 1.2 20IRE
 Sensitivity: 13.8 V/Lux.sec
 Dynamic Range: 46.4 [dB]
4.8mm/F4.5(4D Lens)
5.0mm/F3.5(5F Lens)
3.1mm/F3.4(3T Lens)
3.9mm/F2.8(3D Lens)
 Power Supply : DC 5~12 V
 Dimension(mm) : 10.5 mm x 10.5 mm (+-0.2mm)
Hi-res. download Catalogue

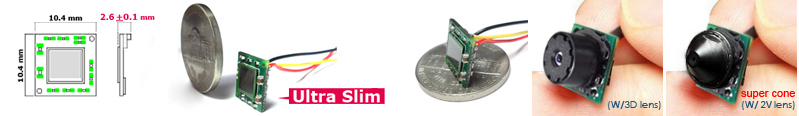

1/3" Color & B/W CCIQ III Camera SENSOR BOARD MO-B5610, MO-B5910

Zoom In
 1/3" Color CCIQ III Camera SENSOR BOARD(MO-B5610)
 1/3" B/W CCIQ III Camera SENSOR BOARD(MO-B5910)
 Pixel: 728(H) x 488(V)(NTSC-EIA/ PAL-CCIR)
 Resolution: Horizontal 480 TV Lines(MO-B5610)
 Resolution: Horizontal 550 TV Lines(MO-B5910)
 Frame Rate: 60 field/sec(NTSC-EIA), 50 field/sec (PAL-CCIR)CVBS
 Min. Illumination: 0.05Lux /F 1.2 20IRE
 Sensitivity: 13.8 V/Lux.sec
 Dynamic Range: 46.4 [dB]
 Power input: DC 3.3~5V(100mA-max)
 Dimension(mm): 10.4 x 10.4 x 2.6mm
Hi-res. download Catalogue
1/8'' CCIQ II color camera MO-TS0804L, MO-TS0804LK ,MO-T0804 ,MO-BL0804L ,MO-BL0804L

Zoom In
Water Proof IP 67 & With LED x 4 !!
 1/8"Color CCIQ II
 Water Proof IP 67 With LED x 4
 Pixel: 656 x 496 (N/P)
 Resolution (TV Lines): 400 TV Lines
 Sensitivity: 0.94 V/Lux.sec
 Pixel size: 2.8 um x 2.8um
 Effective Image Area: 1.837 mm x 1.389 mm
 Minimum Illumination: 1 LUX
 Built-in Lens: 1.85mm/ F2.8
 View angle: FOV H= 52 degree 48'; V= 41 degree 9'; D= 63 degree 44'
 Power source: DC 3.3~5V(130mA-max)
Hi-res. download Catalogue
Wireless Camera Video Audio Scanner WCS-990X

Zoom In Intercept and View any Wireless Camera Video & Audio Signal

 Dispaly: 3.5" Color TFT Monitor
 ISM Band: 0.9~2.7GHz
 Audio sub Carrier 5.5MHz , 6.5MHz auto detect
 Switcher: Auto / Manual
 Intelligent shuffle button
 detachable, rechargeable Li-ion battery
 Power: DC 5 V , 800mA
Hi-res. download Catalogue

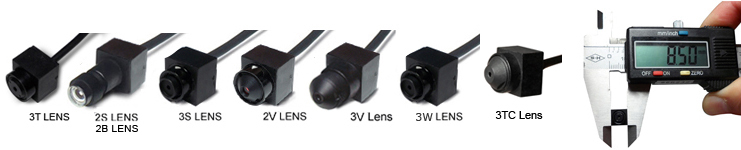

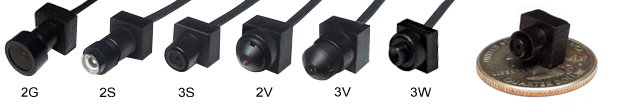

CCIQ MINI CAMERA MO-S58-2S, MO-S58-3S, MO-S58-2V, MO-S58-3V, MO-S58-3W

Zoom In
 1/4" Color CCIQ II Camera
 Pixel: 648 x 488 ( NTSC & PAL )
 Horizontal 400 TV Lines
 Image Transfer Rate: 60 field/sec (NTSC) , 50 field/sec (PAL)
 0.6Lux/ F1.2
 3.1mm/F3.4 (MO-S58-3T)
 2.1mm /F2.5 - Super wide angle (MO-S58-2S)
 3.4mm /F3.4(MO-S58-3S)
 2.95mm /F3.2(MO-S58-2V)
 3.3mm /F2.0(MO-S58-3V)
 2.8mm/F3.9(MO-S58-3W)
 5.0mm/F3.5(MO-S58-5H)
 Power Supply: DC 5~12V
 Power Supply: 30mA (DC 12V)
 Dimension(mm): 8.5 mm x 8.5 mm
Hi-res. download Catalogue
USB Video Capture Devices UCD-210

Zoom In
USB Video Capture Devices
 USB video device class
 driver free(USB Video Class) for any OS (windows XP, Vista, win7, Linux any version, MAC OS )
 A/V CVBS NTSC / PAL input
 Play & Plug with USB Video Class
 Effective Image Area: 4622.8 um x 3611.2 um
 Built-in 3D comb filter and 3D de-interlace
 Compact size perfect for travel and portable use.
 Recording ,RCA X 2
Frame rate: NTSC for 30fps / PAL for 25fps
Resolution: NTSC/PAL: 640 x 480
 Interface: USB 2.0
 Power Supply: DC 5 V
 Dimension(mm): 75.3 mm x 64.3 mm x 23mm
Hi-res. download Catalogue
The Smallest DVR Module Of The World MP-202

Zoom In
The Smallest DVR Module Of The World
 Video Input: NTSC PAL
 Video Input: 1 Channel
 Audio Input: 1 Channel
 Video Output: NTSC/PAL 1 Channel
 Audio Output: 1 Channel
 Video Processing: Chipset DSP Processor
 Compression: MPEG4 format
 Snapshot: JPG IMAGE 640x480
 Control: on board key, IR remote control
 Built-in memory 4G, 8G, 16G, 32G(optional)
 Display Frames: 30 FPS 640x480
 Recording Frame: 30 FPS 640x480
 Recording Mode: Normal, Loop, IR remote control
 Power Input: DC 5V 300mA
 Power Output: DC 5V 110mA(DC 12V Optional)
 Dimension: 14.5 x 70 x 7.9(mm)
The Smallest DVR Module Of The World:MP-202 The Smallest DVR Module Of The World:MP-202 The Smallest DVR Module Of The World:MP-202
The Smallest DVR Module Of The World:MP-202
Hi-res. download Catalogue
1/12" Color CMOS CAMERA Module MO-BL1204LK

Zoom In
  1/12" Color CMOS CAMERA Module
  LED x 4
  640x480
  400 TV Lines
  5Lux/ F2.8
  Electronic shutter: 1/60~1/62500s
  LENS: 1.2mm F2.8
  Power Supply: DC DC 3~5 V
  Dimensions(mm): (D)4.5 x 24 x 5.9mm
Hi-res. download Catalogue
NEW CCIQ II / IR LED Light x 6 MO-T9566L , MO-T8566LMC , MO-T9766L , MO-T8766LMC

Zoom In
1/4" Color CCIQ II Camera
LED x 6
(LED optional by customer request):
IR LED light : 940nm or 850nm
white light
648 x 488 (NTSC & PAL)
0.1Lux / F1.2
Image Transfer Rate:
60 field/sec (NTSC)
50 field/sec (PAL)
Diameter:(D)8mm
MODEL Output
MO-T9506LW-XX 3 wires
MO-T9506LC-XX Cable length to 3 wire out
MO-L9506MC-XX mini 4 pin male out
MO-F9506C-XX Cable 2m(standard) RCA OUT, DC IN

Cable length: ordering in advance
IR LED light :
IR 940nm for MO-T9506
IR 850nm for MO-T8506
MO-T9506: 1/4" color CCIQ II
MO-T9706: 1/4" B/W CCIQ II
MO-T9506-XX
XX(LENS):2G-Super wide angle(2.1mm/F2.5), 3T(3.4mm/F3.4)
MO-L9566MC-3T & MO-L8566MC-3T MO-T9566LC-3T & MO-T8566LC-3T MO-T9566LW-2G & MO-T8566LW-2G
Hi-res. download Catalogue
Ultra Mini Slim Camera Module NEW CCIQ II / with LED Light x 4 MO-T3506L , MO-T3506LMC

Zoom In
Ultra Slim Camera Module
1/4" Color CCIQ II Camera
LED x 4
(LED optional by customer request):
IR LED light : 940nm or 850nm
white light
648 x 488 (NTSC & PAL)
0.1Lux / F1.2
Image Transfer Rate:
60 field/sec (NTSC)
50 field/sec (PAL)
3.4mm/F3.4 (3T)
Diameter:(D)8mm
MO-T3506SC
MO-B3506-2G MO-L3506MC MO-T3506C Video Demo


2G Lens (2.1mm/ F2.5) 3T Lens (3.1mm/ F3.4) 4F Lens (4.0mm/ F2.0)
Super Wide-angle 158.5¢X 4T Lens (3.9mm/ F3.9) 8F Lens (8.3mm/ F2.4)
Hi-res. download Catalogue
The Smallest Camera Of The World ( PAL version ) MO-B902-105 , MO-B902-55 , MO-B903-105 , MO-B903-55

Zoom In
MO-B902-P
 1/18" Color CMOS Camera
 Pixel: 320x240( PAL ONLY )
 240 TV Lines
 0.77mm/F3.0(MO-B902-105-P),
0.96mm/F2.8(MO-B902-55-P)
 2Lux / F1.2
 DC 6~12 V
 dimensions:
(MO-B902-55-P) (D)3.5 mm x 8.6 mm + (N2P): 70x16 (mm)
(MO-B902-105-P) (D)3.5 mm x 9.2 mm+ (N2P): 70x16 (mm)
 MO-B903-P
 1/18" Color CMOS Camera
 Pixel: 320x240( PAL ONLY )
 240 TV Lines
 0.77mm/F3.0(MO-B903-105-P),
0.96mm/F2.8(MO-B903-55-P)
 2Lux / F1.2
 DC 6~12 V
 dimensions:
(MO-B903-55-P) (D) 3.5mm x 12.3mm+ (N2P): 70x16 (mm)
(MO-B903-105-P) (D)3.5mmX13.4mm+ (N2P): 70x16 (mm)
Hi-res. download Catalogue
The Smallest Camera Of The World( NTSC version ) MO-B802-105, MO-B802-55,MO-B803-105, MO-B803-55

Zoom In
MO-B802-N
 1/18" Color CMOS Camera
 Pixel :320x240( NTSC ONLY )
 240 TV Lines
 0.77mm/F3.0(MO-B802-105-N),
0.96mm/F2.8(MO-B802-55-N)
 2Lux / F1.2
 DC 3.3 V
 dimensions :
(MO-B802-55-N) (D)3.5 mm x 8.6 mm
(MO-B802-105-N) (D)3.5 mm x 9.2 mm

MO-B803-N
 1/18" Color CMOS Camera
 Pixel :320x240( NTSC ONLY )
 240 TV Lines
 0.77mm/F3.0(MO-B803-105-N),
0.96mm/F2.8(MO-B803-55-N)
 2Lux / F1.2
 DC 3.3 V
 dimensions :
(MO-B803-55) (D) 3.5mm x 12.3mm
(MO-B803-105) (D)3.5mmX13.4mm
Hi-res. download Catalogue
CCIQ MINI CAMERA MO-S2588-2S, MO-S2588-3S, MO-S2588-2V, MO-S2588-3V, MO-S2588-3W

Zoom In
 1/4" Color CCIQ II Camera
 Pixel : 648 x 488 ( NTSC & PAL )
 Horizontal 400 TV Lines
 Image Transfer Rate: 60 field/sec (NTSC) , 50 field/sec (PAL)
 0.6Lux/ F1.2
 2.1mm /F2.5 - Super wide angle (MO-S2588-2G)
 2.1mm /F2.5 - Super wide angle (MO-S2588-2S)
 3.4mm /F3.4 (MO-S2588-3S)
 2.8mm/F3.9 (MO-S2588-2V)
 3.3mm /F2.0 (MO-S2588-3V)
 2.8mm /F3.9 (MO-S2588-3W)
 5.0mm/F3.5 (MO-S2588-5H)
 Power Supply : DC 5~12V
 Dimension(mm) :8.6 mm x 8.6 mm
Hi-res. download Catalogue
Water- Resistant 3.5" TOUCH SCREEN DVR MP-600

Zoom In

Water- Resistant MP-600SD
 MINI Mobile Digital Video Recorder
 UI:3.5" TOUCH Screen TFT & IR remote control
 SD/SDHC. card slot (support 32 GB SDHC CALSS 4)
 MPEG 4 ,REC Video AVI & Snapshot(JPG)
 date and time stamping
 loop overwrite recording or continuous recording
 Motion Detect
 Special Power Saving button (monitor sleep mode)
 AV recorder resolution :
720x480 (D1) / max 15 fps
640x480(VGA) / max 30 fps.
320x240 QVGA/ max 30 fps.
 RTC Stamp embedded in Video stream
 Support Schedule recording ( 4 programs setting )
 Audio input select by user ( from audio line in or built-in microphone)
 AV Line in/out with 2.5mm Phone Jack
 USB Jack 10pin ( USB & Charging )
 rechargeable Li-ion battery NP120 (2000mAh)
 Dimension:75 x 98 x 30(mm)

Water- Resistant MP-600SD
Hi-res. download Catalogue

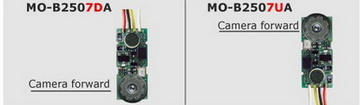

ULTRA SLIM NEW CCIQ II CAMERA MO-B2507 , MO-S2507 , MO-B2505L , MO-B2505R, MO-B2707 , MO-S2707

Zoom In
MO-B2507-3D
MO-B2707-3D
With MIC.
1/4" COLOR CCIQ II Camera(MO-B2507)
1/4" B/W CCIQ II Camera(MO-B2707)
316K(NTSC-EIA / PAL-CCIR)
400 TV Lines
0.1Lux/ F1.2
Power Supply : DC 2.8V
Dimensions :
BOARD:8 x 18.8 x 5.9(mm)
MO-S2507-3D
MO-S2707-3D
With MIC.
1/4" COLOR CCIQ II Camera(MO-B2507) 1/4" B/W CCIQ II Camera(MO-B2707)
316K(NTSC-EIA / PAL-CCIR)
400 TV Lines
0.1Lux/ F1.2
Power Supply : DC 5~12V
Dimensions :
MOUDLE:9.1 x 23 x 6.4(mm)

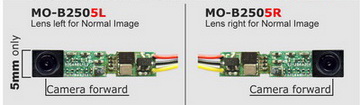

MO-B2505-3T
1/4" COLOR CCIQ II Camera
316K(NTSC-EIA / PAL-CCIR)
400 TV Lines
0.1Lux/ F1.2
Power Supply : DC 2.8V
Dimensions :
BOARD:5 x 24 (mm)
Hi-res. download Catalogue
The Smallest Camera Of The World ( PAL version ) MO-BS902 , MO-BS903

Zoom In
 1/18" Color CMOS Camera
 Pixel: 320x240( PAL ONLY )
 Resolution 240 TV Lines
 0.77mm/F3.0(MO-BS903-105) , (MO-BS902-105), 0.96mm/F2.8(MO-BS903-55) , (MO-BS902-55)
 2Lux / F1.2
 DC 6~12 V
 dimensions:

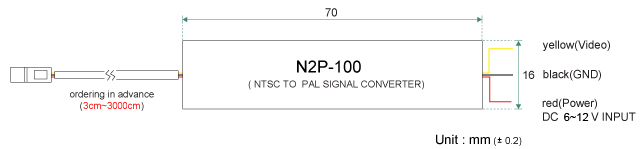

(MO-BS903) (D)3.5 mm +70 mm+ (N2P): 70x16 (mm)
(MO-BS902) (D)3.5mm + 70mm+ (N2P): 70x16 (mm)
Hi-res. download Catalogue
The Smallest Camera Of The World ( NTSC version ) MO-BS802 , MO-BS803

Zoom In
 1/18" Color CMOS Camera
 Pixel: 320x240( NTSC )
 Resolution 240 TV Lines
 0.77mm/F3.0(MO-BS803-105) , (MO-BS802-105), 0.96mm/F2.8(MO-BS803-55) , (MO-BS802-55)
 2Lux / F1.2
 DC 3.3 V
 dimensions: (MO-BS803) (D)3.5 mm +70 mm , (MO-BS802) (D)3.5mm + 70mm
Hi-res. download Catalogue

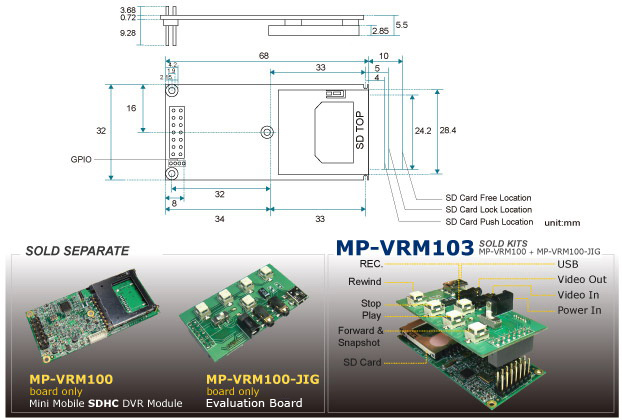

MINI Mobile SD DVR Module MP-VRM100 , MP-VRM103

Zoom In MINI Mobile SD DVR Module

 SDHC/MMC. card slot (support up to 32GB)
 Recording Mode: Normal,loop overwrite , motion detect , snapshot
 RTC date and time stamping
 Audio Input signal: S/N ratio 45dB~58dB @1KHz 2Vp-p
 Video out/in: TV out /AV in (NTSC/PAL)
 AV recorder resolution: 640x480(VGA) / max 30 fps. MPEG 4 ASF file
 Interface: USB 1.1
 Power input: DC 5V/380mA
 Size: 32x 68 mm


Hi-res. download Catalogue
Earphone camera ( CCIQ II ) MJ-P460(Black) , MJ-P466(White)

Zoom In


Everyone will just assume you are listening to your MP3 player,
one of the earphones is a hidden camera
one of the earphones is a hidden microphone ,
Ideal for security or covert applications
Can easily integrate with a camcorder or mini portable DVR

 1/4" Color CCIQ II Camera
 Pixel : 316K ( NTSC / PAL )
 Resolution : Horizontal 400 TV Lines
 Min. Illumination :0.1 Lux/ F1.2
 W/ 3.9mm/F3.9 Lens
 Power Supply : DC 5 -12 V
 Power consum. : 50 mA(Max)
Hi-res. download Catalogue

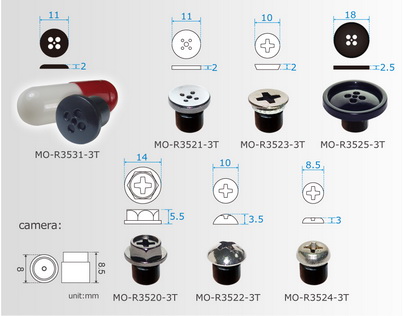

Ultra Mini Wearable Camera MO-R3520 , MO-R3521 , MO-R3522 , MO-R3523 , MO-R3524 , MO-R3525 , MO-R3531

Zoom In
Ultra Mini Wearable Camera ( Button , Screw )
 1/4" Color CCIQ II Camera
 Video out: TV out playback
 Pixel: 648 x 488 ( N / P )
 LENS: 3.1mm / 3.4(3T)
 Image Transfer Rate:
60 field/sec (NTSC)
50 field/sec (PAL)
 Dimension: (D)7.7 x 8.5 (mm)

Screw:
MO-R3520-3T , MO-R3522-3T
MO-R3523-3T , MO-R3524-3T
 Button:
MO-R3521-3T , MO-R3525-3T
MO-R3531-3T
Hi-res. download Catalogue
Mini Camera Module "F" Type MO-F3506MC , MO-F0506MC , MO-F3509LBC , MO-F3575LC

Zoom In

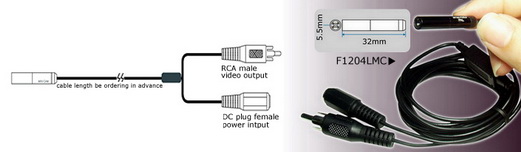

MO-F1204LC
1/12" Color Camera
648 x 488 ( N / P )
LENS: 1.2mm / F2.8
400 TV Lines
With LED Light x 2
 MO-F0506MC
1/5" Color Camera
656 x 488 ( N / P )
LENS: 2.6mm / F2.4
400 TV Lines 		MO-F3506LMC
1/4" Color CCIQ II Camera
648 x 488 ( N / P )
LENS: 3.1mm / F3.4
LED x 4
400 TV Lines
MO-F806C
1/5"-P,1/6"-N
109K(P),73K(N)
LENS: 2.8mm / F2.0
240 TV Lines
MO-F3509LBC
1/4" Color CCIQ II Camera
648 x 488 ( N / P )
LENS: 4.0mm / F2.0(4F)
LENS: 8.3mm / F2.4(8F)
LED x 4
400 TV Lines 		MO-F3575LC
1/4" Color CCIQ II Camera
648 x 488 ( N / P )
LENS: 3.4mm / F3.4
LED x 4
400 TV Lines

Hi-res. download Catalogue
Board Lens L2126IR-5.5, L2125IR-M5.5-50, LP5035-5.5, L2125IR-M7, L2125IR-M7-11, L3434IR-5.5, L3170IR-5.5

Zoom In
Model Dimension (mm) Lens
L2170LIR-M5.5-52 CAP 4.9mm M5.5 X P0.35 2.1mm / F7.0 ( white light LED x6)
L2110LIR-M5.5-52 2.1mm / F10 (white light LED x6)
L2125L9AR-M5.5-52 2.1mm / F2.5 (940nm LED x6)
L2125L8AR-M5.5-52 2.1mm / F2.5 (850nm LED x6)

Model Dimension (mm) Lens
LP3434IR-5.5 M5.5 X P0.35 3.4mm / F3.4
LP3434AR-5.5 3.4mm / F3.4
LP3470IR-5.5 3.4mm / F7.0
LP3470AR-5.5 3.4mm / F7.0

Model L2126IR-5.5 L2125IR-M5.5-50 LP5035-5.5 L2125IR-M7
Dimension(mm) M5.5 X P0.35 CAP 4.9mm
M5.5 X P0.35		 M5.5 X P0.5 CAP 9mm
M7 X P0.5
Lens 2.1mm / F2.6
W/IR filter		 2.1mm / F2.5
W/IR filter		 5.0mm / F3.5 2.1mm / F2.5
W/IR filter
Hi-res. download Catalogue
MINI-MICROPHONE MS-2300

Zoom In
Super tiny microphone!!

 Frequency: 20-10000Hz
 S/N Ratio: Maximun 63dB SPL (at 1,000HZ)
 Impedance : 150 ohms ¡Ó20%(at 1000 HZ)
 Min. Illumination :2 Lux/ F1.2
 Power input :DC 5V
 Dimension: (D)3mm
Hi-res. download Catalogue

© 2011 Misumi electronic corp.  All rights reserved
