PRODUCT
CMOS >>CVBS Signal >> Endoscope(< Φ8mm) >> Tube
1/18" Color Camera MO-T833W , MO-T833C
 1/18" Color CMOS
 white LED x 4
 Pixel :320x240( NTSC )
 240 TV Lines
 Min. Illumination :2Lux / F1.2
 Lens: 0.96mm/F2.8
 DC 3.3 V
 Dimension : (D)3.9 x 15 (mm)
Model: MO-T833LW (wires output)
Model: MO-T833LC (cable to wires output)
Hi-res. download Catalogue Catalogue Catalogue
1/18" Color CMOS Camera MO-R803BC
PDF FILE
The smallest camera of the world
 1/18" Color CMOS Camera
 Pixel :320x240 (NTSC)
 240 TV Lines
 Lens: 0.77mm/F3.0
 2Lux / F1.2
 Power: DC 5~12V
Hi-res. download Catalogue Catalogue Catalogue
NEW CCIQ II / IR LED Light x 6 MO-T9566L , MO-T8566LMC , MO-T9766L , MO-T8766LMC
 1/4" Color CCIQ II Camera
 white LED x 6 (IR LED light : 940nm or 850nm)
 648 x 488 (NTSC/PAL)
 0.1Lux / F1.2
 Image Transfer Rate: 60 field/sec (NTSC); 50 field/sec (PAL)
 Dimensions(mm): (D)8

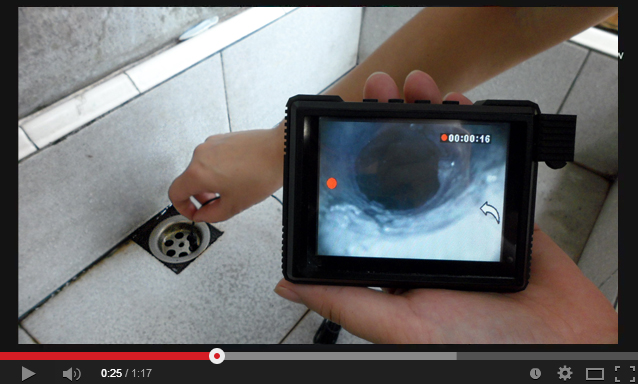

inspection camera
Hi-res. download Catalogue Catalogue Catalogue
The 1/18-inch OV6946 Color CMOS Camera MO-T1002-120
PDF FILE
 Low power consumption
 1/18" Color CMOS (OV6946)
 Pixel size: 1.75um x 1.75um
 Shutter speed: 1/30 sec.
 no LED
 Frame rate: 400(H) x 400(V) @30fps
 Sensitivity:1000mV/Lux-sec
 Lens: 0.418mm/F5.0
 FOV: 120 degree(D)
 Dimensions(mm):(D)2.5mm
Hi-res. download Catalogue Catalogue Catalogue
Ultra Mini Slim Camera Module NEW CCIQ II / with LED x 8 MO-T3506L, MO-T3506LMC, MO-T3506-2V
 1/4" color CCIQ II camera
 LED x 8 (LED optional by customer request)
 IR LED light: 940nm or 850nm
 Pixel: 648 x 488 (NTSC/PAL)
 0.1Lux / F1.2
 Image Transfer Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
 Lesn: 3.4mm/F3.4 (3T)
 Dimension(mm): (D)8
Hi-res. download Catalogue Catalogue Catalogue
1/8'' CCIQ II color camera MO-T0804, MO-T0804K ,MO-F0804MC ,MO-F0804MKC ,MO-L0804 ,MO-L0804C
 1/8"Color CCIQ II
 Water Proof IP 67 WITH LED x 4(standard)
 Pixel : 656 x 496 (N/P)
 Resolution (TV Lines) : 400 TV Lines
 Electronic shutter: 1/60~1/62500s
 Sensitivity 0.94 V/Lux.sec
 Pixel size: 2.8 um x 2.8um
 Effective Image Area 1.837 mm x 1.389 mm
 Minimum Illuminator :1 LUX
 Built-in Lens :1.85mm/ F2.8
 View angle :FOV H= 52 degree 48'; V= 41 degree 9'; D= 63 degree 44'
Hi-res. download Catalogue Catalogue Catalogue
Customize Camera. Tube camera. MO-T3506W-4F
PDF FILE
Tube camera
 CCIQ II ,Built-in Lens:4.0mm/F2.0
Hi-res. download Catalogue Catalogue Catalogue
1/5" Color CMOS Camera Module & 1/12" Color CMOS Camera Module + LED Light MO-T0506LW
MO-T0506W
 1/5" Color CMOS Camera Module
 656 x 488 (NTSC/PAL)
 1/60~1/62500 SEC.
 Lens: 2.6mm/F2.4
 Power: DC 3.6 ~ 5V
 Dimensions(mm):
(D)7.4 x 27 (MO-T0506LW -- TUBE TYPE)
(D)6.9 x 17 (MO-B0506 -- PCB BOARD TYPE)
MO-T0506W: 3 Wire out
MO-F0506C: cable length 2m(standard) RCA OUT, DC IN
Hi-res. download Catalogue Catalogue Catalogue
Mini Camera Module "F" Type MO-F3506MC, MO-F0506MC, MO-F3509LBC, MO-F3575LC
PDF FILE
 Camera connector: RCA male and DC female
MO-F1204LC
 1/12" Color Camera
 720 x 525(NTSC), 720 x 625(PAL)
 Lens: 1.2mm / F2.8
 400 TV Lines
 With LED Light x 2


MO-F0506MC
 1/5" Color Camera
 656 x 488 (NTSC/PAL)
 Lens: 2.6mm / F2.4
 400 TV Lines


MO-F3506LMC
 1/4" Color CCIQ II Camera
 648 x 488 (NTSC/PAL)
 Lens: 3.4mm / F3.4
 white LED x 4
 400 TV Lines


MO-F806C
 1/5"(PAL), 1/6"(NTSC)
 109K(PAL), 73K(NTSC)
 Lens: 2.8mm / F2.0
 240 TV Lines


MO-F3509LBC
 1/4" Color CCIQ II Camera
 648 x 488 (NTSC/PAL)
 Lens: 4.0mm / F2.0 (4F)
 Lens: 8.3mm / F2.4 (8F)
 white LED x 4
 400 TV Lines


MO-F3575LC
 1/4" Color CCIQ II Camera
 648 x 488 (NTSC/PAL)
 Lens: 3.4mm / F3.4
 white LED x 4
 400 TV Lines


Hi-res. download Catalogue Catalogue Catalogue

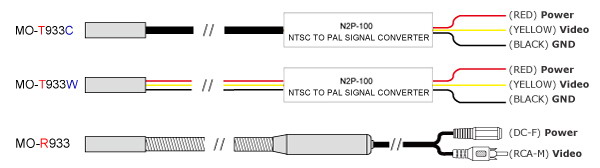

1/18" Color Camera MO-T933W, MO-T933C, MO-R933
PDF FILE
MO-T933W
 1/18" Color CMOS
 Pixel: 320 x 240 (PAL)
 240 TV Lines
 Min. Illumination: 2Lux / F1.2
 Power: DC 5~12V
 Dimensions(mm): (D)3.9 x 15 + (N2P): 70x16 (mm)
 Lens: 0.96mm/F3.0(55°)
 3 wire out

MO-T933W
 1/18" Color CMOS
 Pixel: 320 x 240 (PAL)
 240 TV Lines
 Min. Illumination: 2Lux / F1.2
 Power: DC 5~12V
 Dimensions(mm): (D)3.9 x 15 + (N2P): 70x16 (mm)
 Lens: 0.96mm/F3.0 (55°)
 cable out (OD2.3mm)

MO-R933, MO-L933(with LED light x2)
 1/18" Color CMOS
 LED LIGHT illumination: 5400 LUX(MO-L933)
 Pixel: 320 x 240 (PAL)
 240 TV Lines
 Min. Illumination: 2Lux / F1.2
 Power: DC 5~12V
 Dimensions(mm): (D)3.9 x 15+ (N2P): 70x16 (mm)
 Lens: 0.96mm/F3.0(55°)
 shape memory goose neck + handlebar

Hi-res. download Catalogue Catalogue Catalogue
Ultra Mini Slim Camera Module NEW CCIQ II / with LED Light x 8 MO-T2706L-3T, MO-T2706LMC-3T, MO-T2706-2V
 1/4" B/W CCIQ II camera
 LED x 8 (LED optional by customer request)
 IR LED light: 940nm or 850nm
 Pixel: 648 x 488 (NTSC-EIA & PAL-CCIR)
 0.1Lux / F1.2
 Image Transfer Rate: 60 field/sec (NTSC-EIA), 50 field/sec (PAL-CCIR)
 Lesn: 3.4mm/F3.4 (3T)
 Diameter(mm): (D)8
Hi-res. download Catalogue Catalogue Catalogue
Color CMOS Camera Module MX-V1204KL-51-A, MX-V1204KL-51-B, MX-V1204KL-51-B
 Automatic image control functions: automatic exposure control (AEC),
 Automatic white balance(AWB) and automatic black level calibration (ABLC)
 Programmable controls for frame rate, AEC/AGC,mirror and flip, scaling and windowing
 Image quality controls: color saturation, hue, gamma,
 Sharpness (edge enhancement), lens correction,defective pixel canceling, and noise canceling
 Night Vision Color CMOS Camera Module
 white LED x 4
(IR 940nm LED or IR850nm LED - order in advance) with dimmer switch
 720 x 480 (NTSC/ITU-601) / 720 x 576 (PAL/ITU-601)
 450 TV Lines
 Frame Rate: 15fps (15fps or 30fps(auto)-ordering in advance)
 Sensitivity: 960 mV/(Lux-sec)
 Lens: 1.498mm/F5.0 (H= 41degree 56'; V= 32degree 2'; D= 51degree 2')
 Power: DC 5~12V
 Dimensions(mm) :
MX-V1204L-51-A: (D)5.5x27mm
MX-V1204L-51-B: (D)5.5x30.1mm
MX-V1204L-51-C: (D)5.5x27mm
Hi-res. download Catalogue Catalogue Catalogue
