PRODUCT
Accessory>>Connector

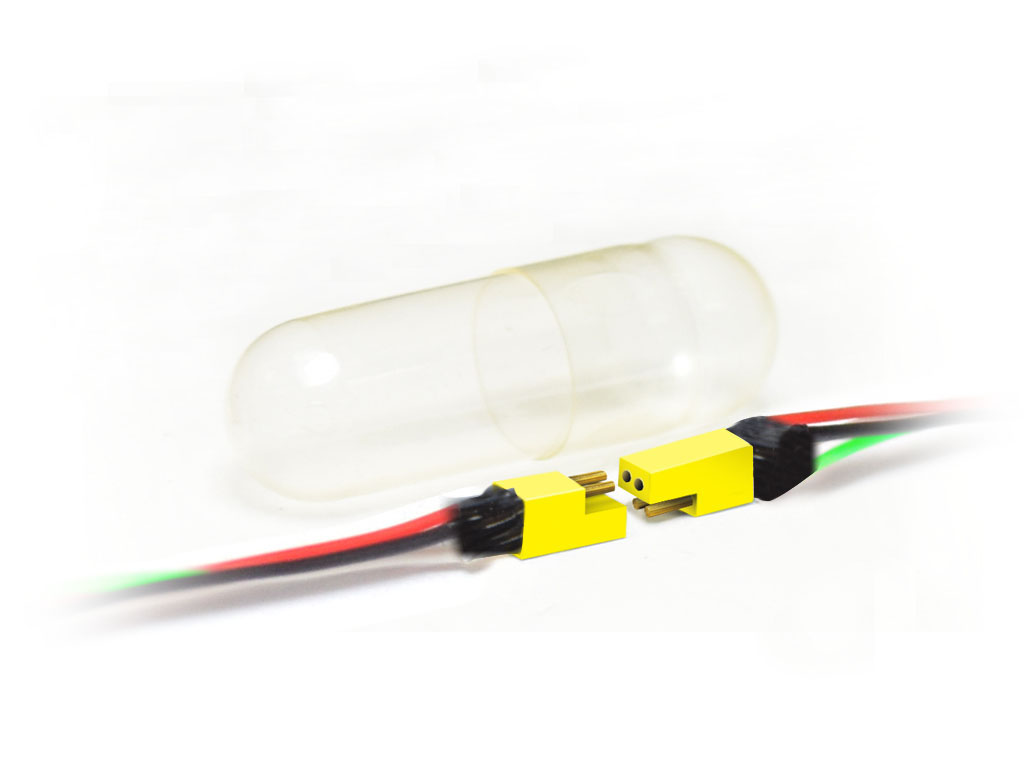

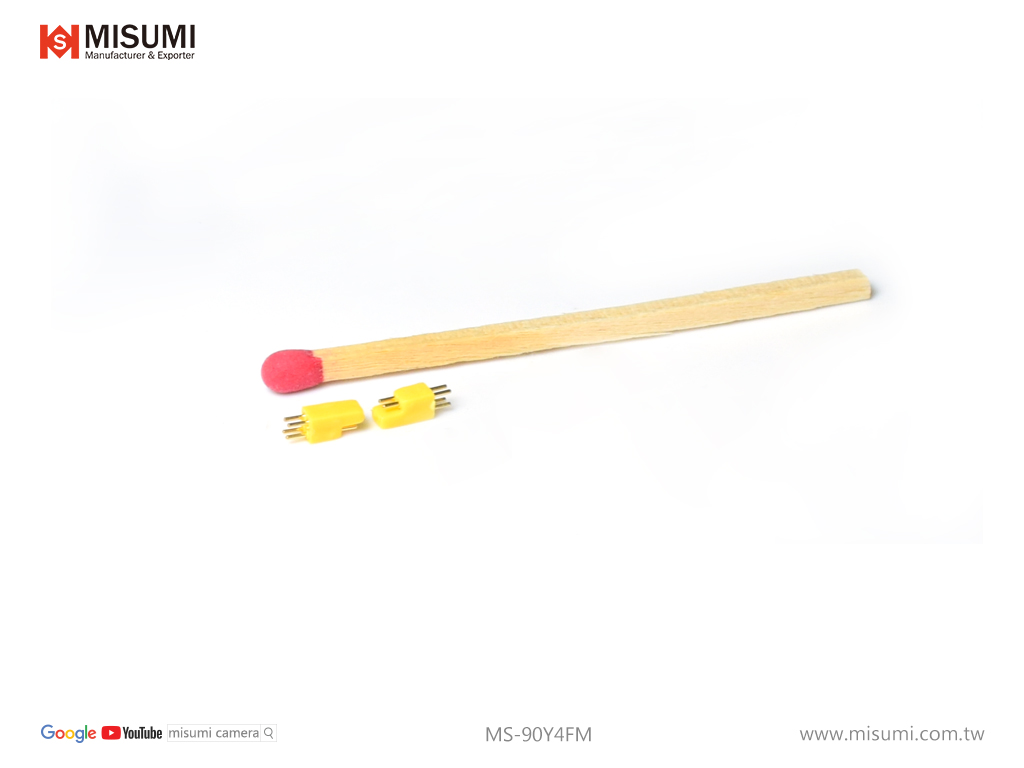

CONNECTOR MS-90Y4FM, MS-90Y4FM-WIRE
Model: MS-90Y4FM
 Nano connector x 2
 4 pin (male and female)
 Dimension: 2.09*1.09*4.32
 color: yellow

Model: MS-90Y4FM-WIRE
 Nano connector x 2
 with PTFE wires (15cm)
 4 pin (male and female)
 Dimension: 2.09*1.09*4.32
 color: yellow
Hi-res. download Catalogue Catalogue Catalogue
CONNECTOR MS-9013FM
 13 pin nano connector
 MS-9013FM (male & female)
 MS-9013M (male) / MS-9013F (female)
 Color: white and black - specify when ordering
 Dimension: (D)3.9 x 9.5 (male), (D)3.9 x 9 (female)
Hi-res. download Catalogue Catalogue Catalogue
5 PIN connector MS-9075M, MS-9075M, MS-9175F
MS-9075M(5 pin)
 IP68 Waterproof
 (5 pin) male connector

MS-9075F(5 pin)
 IP68 Waterproof
 (5 pin) male connector

MS-9175F(5 pin)
 IP68 Waterproof
 (5 pin) male connector
Hi-res. download Catalogue Catalogue Catalogue
connector MS-9084FM, MS-9085FM, MS-9184FM, MS-9185FM
MS-9085FM(M8/5 pin)
 IP68 Waterproof
 (M8/8 pin) male and female connector

MS-9084FM(M8/4 pin)
 IP68 Waterproof
 (M8/4 pin) male and female connector

MS-9185FM(M8/5 pin)
 IP68 Waterproof
 with cable (M8/5 pin) male and female connector
 Cable length-advance order

MS-9184FM(M8/4 pin)
 IP68 Waterproof
 with cable (M8/4 pin) male and female connector
 Cable length-advance order


Hi-res. download Catalogue Catalogue Catalogue
CONNECTOR MS-9142FM
PDF FILE
 4 PIN CONNECTOR STRAIGHT TYPE
Hi-res. download Catalogue Catalogue Catalogue
CONNECTOR MS-9040FM
PDF FILE
 4 PIN CONNECTOR
Hi-res. download Catalogue Catalogue Catalogue
CONNECTOR MS-9041F
 4 PIN CONNECTOR (FEMALE)
Hi-res. download Catalogue Catalogue Catalogue
CONNECTOR MS-9041M
 4 PIN CONNECTOR (MALE)
Hi-res. download Catalogue Catalogue Catalogue
CONNECTOR MS-90B15FM
 15 Pin Nano Connector
 MS-90B15FM (Male & Female)
 MS-90B15M (Male) / MS-90B15F (Female)
 Dimensions (mm): (D) 4.8 x 5.3 (Male), (D) 4.8 x 5.4 (Female)
Hi-res. download Catalogue Catalogue Catalogue
CONNECTOR MS-9005FM, MS-90B5FM
 5 Pin nano connector
 MS-9005FM (Male & Female)
 Color: White and Black - Specify when ordering
 Dimension: (D) 2.70 x 6.0
Hi-res. download Catalogue Catalogue Catalogue
