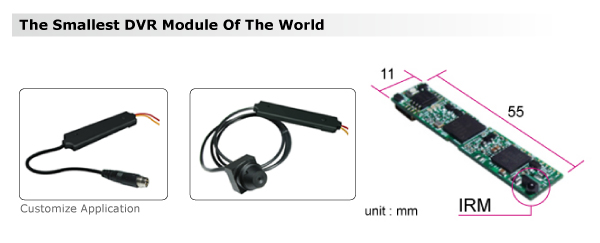

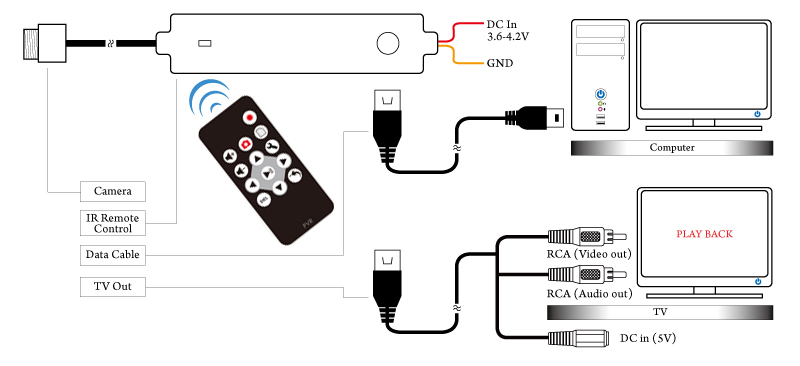

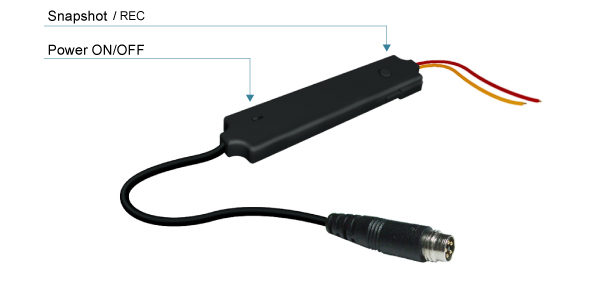

DVR >> CVBS signal
 |
▪ Video input: NTSC only
▪ Video input: 1 Channel
▪ Audio input: 1 Channel
▪ Video output: NTSC/PAL 1 Channel
▪ Audio output: 1 Channel
▪ Video processing: chipset DSP processor
▪ Compression: MPEG4 format
▪ Snapshot: (.jpg) 640 x 480
▪ Control: on board key, IR remote control
▪ Built-in memory 4G
▪ Display frames: 30 fps@ 640 x 480
▪ Recording frame: 30 fps@ 640x480
▪ Recording mode: normal, loop, IR remote control
▪ Power input: DC 5V 300mA
▪ Power output: DC 5V 110mA(DC 12V optional)
▪ Dimensions: 14.5 x 70 x 7.9 (mm)
▪ Video input: 1 Channel
▪ Audio input: 1 Channel
▪ Video output: NTSC/PAL 1 Channel
▪ Audio output: 1 Channel
▪ Video processing: chipset DSP processor
▪ Compression: MPEG4 format
▪ Snapshot: (.jpg) 640 x 480
▪ Control: on board key, IR remote control
▪ Built-in memory 4G
▪ Display frames: 30 fps@ 640 x 480
▪ Recording frame: 30 fps@ 640x480
▪ Recording mode: normal, loop, IR remote control
▪ Power input: DC 5V 300mA
▪ Power output: DC 5V 110mA(DC 12V optional)
▪ Dimensions: 14.5 x 70 x 7.9 (mm)
 |
 |
 |
 |
 |

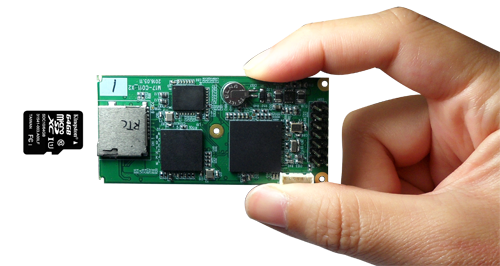

• CVBS upgrade to 720p
▪ 1280 x 720 (HD 720p) / max 30 fps. (MP-VRM200HD)
▪ 640 x 480 (VGA) / max 30 fps. (MP-VRM200)
▪ Function:
Self-timer mode, preview OSD displaying icons ,
SD card update, setup REC. mode, normal REC. mode,
Loop overwrite REC. mode, motion detect, REC mode,
RTC date and time stamping, snapshot: (.jpg) image ,
Zoom in/out function(MP-VRM200HD)
▪ External memory: micro SD Card memory slot (support up to SDHC 128GB)
▪ Compression: H.264 (.mov) file
▪ Video: synchronized audio & video recording/ playback
▪ Video input: analog signal input (NTSC/PAL)
▪ Audio input: support
▪ PC interface: USB2.0
▪ Dimensions(mm): 32 x 68
▪ 1280 x 720 (HD 720p) / max 30 fps. (MP-VRM200HD)
▪ 640 x 480 (VGA) / max 30 fps. (MP-VRM200)
▪ Function:
Self-timer mode, preview OSD displaying icons ,
SD card update, setup REC. mode, normal REC. mode,
Loop overwrite REC. mode, motion detect, REC mode,
RTC date and time stamping, snapshot: (.jpg) image ,
Zoom in/out function(MP-VRM200HD)
▪ External memory: micro SD Card memory slot (support up to SDHC 128GB)
▪ Compression: H.264 (.mov) file
▪ Video: synchronized audio & video recording/ playback
▪ Video input: analog signal input (NTSC/PAL)
▪ Audio input: support
▪ PC interface: USB2.0
▪ Dimensions(mm): 32 x 68
 |
▪ With sunshade (MP-908)
▪ No sunshade (MP-906)
▪ Loading & unloading of sunshade cover (Model: MP-908)
▪ Full view 170° (1024 x 600 pix) HD screen.
▪ Built-in 7000mAh high capacity Li-battery.
▪ 4x zoom monitoring
▪ HD TVI,CVI,AHD,CVBS 4 in 1 video.
▪ 800 meters HD TVI 1080p 75-5 signal reliable transmission.
▪ Compressed video and audio are synchronous.
▪ Support H.264 encoding.
▪ Up to 5MP resolution recording.
▪ Support loop recording and no-loop recording.
▪ Support for composite video output.
▪ Support earphone monitoring.
▪ Working voltage: 5~12V.
▪ Supports up to 128 GB TF card.
▪ Supports multi-language.
▪ Power-saving mode: automatic off-screen.
▪ System upgrade: supports system upgrade.
▪ Support 12 voltage power output for camera.
▪ No sunshade (MP-906)
▪ Loading & unloading of sunshade cover (Model: MP-908)
▪ Full view 170° (1024 x 600 pix) HD screen.
▪ Built-in 7000mAh high capacity Li-battery.
▪ 4x zoom monitoring
▪ HD TVI,CVI,AHD,CVBS 4 in 1 video.
▪ 800 meters HD TVI 1080p 75-5 signal reliable transmission.
▪ Compressed video and audio are synchronous.
▪ Support H.264 encoding.
▪ Up to 5MP resolution recording.
▪ Support loop recording and no-loop recording.
▪ Support for composite video output.
▪ Support earphone monitoring.
▪ Working voltage: 5~12V.
▪ Supports up to 128 GB TF card.
▪ Supports multi-language.
▪ Power-saving mode: automatic off-screen.
▪ System upgrade: supports system upgrade.
▪ Support 12 voltage power output for camera.
 |
▪ 1/4" Color CCIQ II Helmet Camera
▪ 316K (NTSC/PAL)
▪ Horizontal 400 TV Lines
▪ Lens: 3.9mm/F2.8
▪ 0.1 Lux/ F1.2
▪ With Microphone
▪ 316K (NTSC/PAL)
▪ Horizontal 400 TV Lines
▪ Lens: 3.9mm/F2.8
▪ 0.1 Lux/ F1.2
▪ With Microphone
 |
▪ Mini Mobile Digital Video Recorder
▪ SD/SDHC card slot (support 32 GB SDHC class 4 over )
▪ H.264 REC, D1 720x480 Video & Snapshot JPG Iimage
▪ Date and time stamping, IR remote control
▪ loop overwrite recording or continuous recording
▪ Special Power Saving button (monitor sleep mode)
▪ Extend Interface port:
▪ DVR supply DC 5V output (2.5mm phone jack) for camera and vdieo composite input.
▪ 3.5mm (phone jack) video audio composite output
▪ Power input, PC connect: mini USB 2.0
▪ RTC stamp embedded in video stream
▪ AV recorder resolution : 720x480(D1) / max 30 fps.
▪ Display :2.5" TFT
▪ detachable, rechargeable Li-ion battery NP-60 (900mAh)
▪ 5V DC adapter (USB port) / USB cable
▪ Dimension(mm): 95.5 x 63.5 x 21
▪ SD/SDHC card slot (support 32 GB SDHC class 4 over )
▪ H.264 REC, D1 720x480 Video & Snapshot JPG Iimage
▪ Date and time stamping, IR remote control
▪ loop overwrite recording or continuous recording
▪ Special Power Saving button (monitor sleep mode)
▪ Extend Interface port:
▪ DVR supply DC 5V output (2.5mm phone jack) for camera and vdieo composite input.
▪ 3.5mm (phone jack) video audio composite output
▪ Power input, PC connect: mini USB 2.0
▪ RTC stamp embedded in video stream
▪ AV recorder resolution : 720x480(D1) / max 30 fps.
▪ Display :2.5" TFT
▪ detachable, rechargeable Li-ion battery NP-60 (900mAh)
▪ 5V DC adapter (USB port) / USB cable
▪ Dimension(mm): 95.5 x 63.5 x 21
 |
• Water- resistant
▪ Mini mobile digital video recorder
▪ UI:3.5" touch screen TFT & IR remote control
▪ SD/SDHC. Card slot (support 32 GB SDHC class 4)
▪ MPEG 4, REC. video avi & snapshot (jpg)
▪ Date and time stamping
▪ Loop overwrite recording or continuous recording
▪ Motion detect
▪ Special power saving button (monitor sleep mode)
▪ AV recorder resolution: 720 x 480 (D1) / max 15 fps 640 x 480(VGA) / max 30 fps. 320 x 240 QVGA / max 30 fps.
▪ RTC stamp embedded in video stream
▪ Support schedule recording (4 programs setting)
▪ Audio input select by user (from audio line in or built-in microphone)
▪ AV line in/out with 2.5mm phone jack
▪ USB jack 10 pin (USB & charging)
▪ Rechargeable li-ion battery np120 (2000mAh)
▪ Dimension (mm): 75 x 98 x 30
▪ Mini mobile digital video recorder
▪ UI:3.5" touch screen TFT & IR remote control
▪ SD/SDHC. Card slot (support 32 GB SDHC class 4)
▪ MPEG 4, REC. video avi & snapshot (jpg)
▪ Date and time stamping
▪ Loop overwrite recording or continuous recording
▪ Motion detect
▪ Special power saving button (monitor sleep mode)
▪ AV recorder resolution: 720 x 480 (D1) / max 15 fps 640 x 480(VGA) / max 30 fps. 320 x 240 QVGA / max 30 fps.
▪ RTC stamp embedded in video stream
▪ Support schedule recording (4 programs setting)
▪ Audio input select by user (from audio line in or built-in microphone)
▪ AV line in/out with 2.5mm phone jack
▪ USB jack 10 pin (USB & charging)
▪ Rechargeable li-ion battery np120 (2000mAh)
▪ Dimension (mm): 75 x 98 x 30
 |
▪ Normal REC, AV in mode, snapshot
▪ Record: 640 x 480 (VGA/MP4) / max 30 fps.
▪ Snapshot: image 640 x 480 (jpg)
▪ RTC date and time stamping
▪ SDHC card slot (support up to 32GB)
▪ Power charge: DC 5V (450mA)
▪ PC interface: USB1.1
▪ Interface: 2.5 mm phone jack
▪ Dimension (mm): 32 x 68
▪ Record: 640 x 480 (VGA/MP4) / max 30 fps.
▪ Snapshot: image 640 x 480 (jpg)
▪ RTC date and time stamping
▪ SDHC card slot (support up to 32GB)
▪ Power charge: DC 5V (450mA)
▪ PC interface: USB1.1
▪ Interface: 2.5 mm phone jack
▪ Dimension (mm): 32 x 68
 |
▪ SDHC/MMC. card slot (support up to 32GB)
▪ Recording mode: normal, loop overwrite, motion detect, snapshot
▪ RTC date and time stamping
▪ Audio input signal: S/N ratio 45dB~58dB @1KHz 2Vp-p
▪ Video out/in: TV out /AV in (NTSC/PAL)
▪ AV recorder resolution: 640 x 480 (VGA) / max 30 fps. MPEG 4 ASF file
▪ Interface: USB 1.1
▪ Power input: DC 5V/380mA
▪ Dimension (mm): 32 x 68
▪ Recording mode: normal, loop overwrite, motion detect, snapshot
▪ RTC date and time stamping
▪ Audio input signal: S/N ratio 45dB~58dB @1KHz 2Vp-p
▪ Video out/in: TV out /AV in (NTSC/PAL)
▪ AV recorder resolution: 640 x 480 (VGA) / max 30 fps. MPEG 4 ASF file
▪ Interface: USB 1.1
▪ Power input: DC 5V/380mA
▪ Dimension (mm): 32 x 68
 |
• Mini mobile digital video recorder
▪ SD/MMC. card slot (support up to 2GB)
▪ Built-in flash memory 128 MB
▪ Special power save button (monitor sleep mode)
▪ Interface: USB 2.0 (USB 2.0/power in)
▪ Extend interface: extend DC power 9V out for camera and AV in
▪ Display: 2.5" LTPS TFT LCD 960 x 240,230K
▪ Video out/in: TV out /AV in (NTSC/PAL)
▪ AV recorder resolution: 640 x 480(VGA) / max 30 fps.
▪ Battery: rechargeable Li-Ion battery ( NP-60 )
▪ Adapter: 5V DC adapter (USB port) / USB cable
▪ Weight(g): 95g (with battery)
▪ Dimension (mm): 18 x 68 x 81 (L x W x H)
▪ SD/MMC. card slot (support up to 2GB)
▪ Built-in flash memory 128 MB
▪ Special power save button (monitor sleep mode)
▪ Interface: USB 2.0 (USB 2.0/power in)
▪ Extend interface: extend DC power 9V out for camera and AV in
▪ Display: 2.5" LTPS TFT LCD 960 x 240,230K
▪ Video out/in: TV out /AV in (NTSC/PAL)
▪ AV recorder resolution: 640 x 480(VGA) / max 30 fps.
▪ Battery: rechargeable Li-Ion battery ( NP-60 )
▪ Adapter: 5V DC adapter (USB port) / USB cable
▪ Weight(g): 95g (with battery)
▪ Dimension (mm): 18 x 68 x 81 (L x W x H)
|
|
New Evolution ! Support SD/SDHC Card up to 32 GB,
Snapshot function (640x480-jpg)
RTC date and time stamping
▪ SD, SDHC card support (MAX 32 GB)
▪ Built-in flash memory 128 MB
▪ Timebar
▪ Special Power save button (monitor sleep mode)
▪ Interface: USB 2.0 (USB 2.0/power in)
▪ Extend Interface: Extend DC Power 9V out for Camera and AV in
▪ Display: 2.5" LTPS TFT LCD 960x240,230K
▪ Video out/in: TV out /AV in (NTSC/PAL)
▪ AV recorder resolution: 640x480(VGA) / max 30 fps.
▪ Battery: Rechargeable Li-Ion battery ( NP-60 )
▪ Adapter: 5V DC adapter (USB port) / USB cable
▪ Weight(g): 95g (with battery)
▪ Size : 18x68x81 (LxWxH)mm
Snapshot function (640x480-jpg)
RTC date and time stamping
▪ SD, SDHC card support (MAX 32 GB)
▪ Built-in flash memory 128 MB
▪ Timebar
▪ Special Power save button (monitor sleep mode)
▪ Interface: USB 2.0 (USB 2.0/power in)
▪ Extend Interface: Extend DC Power 9V out for Camera and AV in
▪ Display: 2.5" LTPS TFT LCD 960x240,230K
▪ Video out/in: TV out /AV in (NTSC/PAL)
▪ AV recorder resolution: 640x480(VGA) / max 30 fps.
▪ Battery: Rechargeable Li-Ion battery ( NP-60 )
▪ Adapter: 5V DC adapter (USB port) / USB cable
▪ Weight(g): 95g (with battery)
▪ Size : 18x68x81 (LxWxH)mm
 |
Mobile LVDS 1080p DVR + 5MP camera
▪ UI:3.5" TFT & IR remote control
▪ 8 mega pixel / 3200 x 2400 (interpolated by software),
▪ 5 mega pixel / 2592 x 1944 (recommended)
▪ SD/SDHC. card slot (micro SD support 32GB x 2= 64G )
▪ Mpeg 4, recording video(avi.) & snapshot (jpg)
▪ Motion Detect, loop overwrite recording or continuous recording, RTC stamp embedded in video stream
▪ Special power saving button (monitor sleep mode)
▪ AV recorder resolution
CVBS camera:
720 x 480-NTSC, 720 x 576-PAL / max 30 fps (D1)
5MP camera:
1280 x 720 (HD 720p) / max 30 fps.
1920 x 1080 (Full HD 1080p) / max 30 fps.
▪ Digi 5MP LVDS in & AV line input with 2.5mm phone jack ,
▪ Micro H.DMI out
▪ Audio input select by user (from audio line in or built-in microphone)
▪ USB jack 10pin ( USB & charging ), rechargeable Li-ion battery NP120(2000mAh)
▪ Dimension(mm): 82.5 x 98.5 x 22
These specs shows above which only supports digital camera.
The analog camera only supports video recording function.
▪ UI:3.5" TFT & IR remote control
▪ 8 mega pixel / 3200 x 2400 (interpolated by software),
▪ 5 mega pixel / 2592 x 1944 (recommended)
▪ SD/SDHC. card slot (micro SD support 32GB x 2= 64G )
▪ Mpeg 4, recording video(avi.) & snapshot (jpg)
▪ Motion Detect, loop overwrite recording or continuous recording, RTC stamp embedded in video stream
▪ Special power saving button (monitor sleep mode)
▪ AV recorder resolution
CVBS camera:
720 x 480-NTSC, 720 x 576-PAL / max 30 fps (D1)
5MP camera:
1280 x 720 (HD 720p) / max 30 fps.
1920 x 1080 (Full HD 1080p) / max 30 fps.
▪ Digi 5MP LVDS in & AV line input with 2.5mm phone jack ,
▪ Micro H.DMI out
▪ Audio input select by user (from audio line in or built-in microphone)
▪ USB jack 10pin ( USB & charging ), rechargeable Li-ion battery NP120(2000mAh)
▪ Dimension(mm): 82.5 x 98.5 x 22
These specs shows above which only supports digital camera.
The analog camera only supports video recording function.
 |
▪ MINI Mobile Digital Video Recorder
▪ IR remote control
▪ SD/SDHC card slot (support 128 GB SDHC class 4 over)
▪ H.264 REC. D1 720 x 480 video & snapshot JPG image
▪ date and time stamping
▪ loop overwrite recording or continuous recording
▪ Special power saving button (monitor sleep mode)
▪ Extend Interface port:
▪ Input:2.5mm phone jack direct supply DC 5V power output for camera and vdieo composite input.
▪ Output: 3.5mm phone jack video/audio composite output
▪ Power input, PC connect: mini USB 2.0
▪ RTC Stamp embedded in video stream
▪ AV recorder resolution: 720 x 480(D1) / max 30 fps.
▪ Display: 2.5" TFT
▪ AV Line in/out with 2.5mm Phone Jack
▪ detachable, rechargeable Li-ion battery NP-60 (900mAh)
▪ 5V DC adapter (USB port) / USB cable
▪ Dimension(mm): 95.5 x 63.5 x 21
▪ IR remote control
▪ SD/SDHC card slot (support 128 GB SDHC class 4 over)
▪ H.264 REC. D1 720 x 480 video & snapshot JPG image
▪ date and time stamping
▪ loop overwrite recording or continuous recording
▪ Special power saving button (monitor sleep mode)
▪ Extend Interface port:
▪ Input:2.5mm phone jack direct supply DC 5V power output for camera and vdieo composite input.
▪ Output: 3.5mm phone jack video/audio composite output
▪ Power input, PC connect: mini USB 2.0
▪ RTC Stamp embedded in video stream
▪ AV recorder resolution: 720 x 480(D1) / max 30 fps.
▪ Display: 2.5" TFT
▪ AV Line in/out with 2.5mm Phone Jack
▪ detachable, rechargeable Li-ion battery NP-60 (900mAh)
▪ 5V DC adapter (USB port) / USB cable
▪ Dimension(mm): 95.5 x 63.5 x 21
 |
▪ Video input: 4 channel CVBS videos
▪ Video output: CVBS or HDMI output while LCD display is off
▪ Video output format: H.264
▪ LCD display: 2.5" 320 x 240 TFT LCD.
▪ Resolution: 1280 x 720
▪ G-sensor: 3-axis vibration/rotating detect and monitor.
▪ Recording mode: loop recording, event recording, manual recording
▪ Memory: micro SD card (SDHC up to 32GB)
▪ Date and time stamp: support
▪ Power interface: DC 5V (2.5mm phone jack)
▪ Dimension(mm): 60 x 80
▪ Other function: playback mode
▪ GPS external (optional)
coming soon...
▪ Video output: CVBS or HDMI output while LCD display is off
▪ Video output format: H.264
▪ LCD display: 2.5" 320 x 240 TFT LCD.
▪ Resolution: 1280 x 720
▪ G-sensor: 3-axis vibration/rotating detect and monitor.
▪ Recording mode: loop recording, event recording, manual recording
▪ Memory: micro SD card (SDHC up to 32GB)
▪ Date and time stamp: support
▪ Power interface: DC 5V (2.5mm phone jack)
▪ Dimension(mm): 60 x 80
▪ Other function: playback mode
▪ GPS external (optional)
coming soon...
 |
▪ Operates in 2.4GHz frequency bands compliance of IEEE 802.11b/g/n.
▪ WEP,TKIP and AES,WPA,WPA2 hardware encryption schemes.
▪ Analog Camera Input.
▪ Slim WI-FI DVR.
▪ APP operation both on iOS / Android system.
▪ Can be powered by portable battery bank.
▪ Black/White color choice.
▪ Resolution: Max D1/30fps
▪ Compression Algorithm: H.264 / Audio：PCM
▪ Video File Format: AVI
▪ Power Input: DC 5V Max. 1.3W
▪ APP: iOS / Android
▪ Weight: 13g
▪ Dimension: 54.5x28x10 mm
▪ WEP,TKIP and AES,WPA,WPA2 hardware encryption schemes.
▪ Analog Camera Input.
▪ Slim WI-FI DVR.
▪ APP operation both on iOS / Android system.
▪ Can be powered by portable battery bank.
▪ Black/White color choice.
▪ Resolution: Max D1/30fps
▪ Compression Algorithm: H.264 / Audio：PCM
▪ Video File Format: AVI
▪ Power Input: DC 5V Max. 1.3W
▪ APP: iOS / Android
▪ Weight: 13g
▪ Dimension: 54.5x28x10 mm
 |
▪ Operates in 2.4GHz frequency bands compliance of IEEE 802.11b/g/n.
▪ WEP,TKIP and AES,WPA,WPA2 hardware encryption schemes.
▪ Analog Camera Input.
▪ Slim WI-FI DVR.
▪ APP operation both on iOS / Android system.
▪ Can be powered by portable battery bank.
▪ Black/White color choice.
▪ Resolution: Max D1/30fps
▪ Compression Algorithm: H.264 / Audio：PCM
▪ Video File Format: AVI
▪ Power Input: DC 5V Max. 1.3W
▪ APP: iOS / Android
▪ Weight: 55g
▪ Dimension: 72.1x36.8x15.7 mm
▪ with battery
▪ WEP,TKIP and AES,WPA,WPA2 hardware encryption schemes.
▪ Analog Camera Input.
▪ Slim WI-FI DVR.
▪ APP operation both on iOS / Android system.
▪ Can be powered by portable battery bank.
▪ Black/White color choice.
▪ Resolution: Max D1/30fps
▪ Compression Algorithm: H.264 / Audio：PCM
▪ Video File Format: AVI
▪ Power Input: DC 5V Max. 1.3W
▪ APP: iOS / Android
▪ Weight: 55g
▪ Dimension: 72.1x36.8x15.7 mm
▪ with battery
 |
▪ 迴路：經由空置總機局線迴路啟動。
▪ 控制功能：AC110V 輸出座 1 組，NC.C.NO 接點 2 組，
1000W OUT AC 110V NO.C 接點 1 組。
▪ 其它功能：
可前/後奏選擇
標準機櫃尺寸可直接按裝或放置於桌上
後板調整方式防止錯誤調整
▪ 電源：AC110V 50Hz/60Hz
▪ 輸出：30mv / 10KΩ
▪ 音調：440Hz, 554Hz, 659Hz, 880Hz /880Hz, 659Hz, 554Hz, 440Hz
▪ 重量：2.2kg
▪ 尺寸(mm)：430(W) x 210(D) x 44(H)
▪ 控制功能：AC110V 輸出座 1 組，NC.C.NO 接點 2 組，
1000W OUT AC 110V NO.C 接點 1 組。
▪ 其它功能：
可前/後奏選擇
標準機櫃尺寸可直接按裝或放置於桌上
後板調整方式防止錯誤調整
▪ 電源：AC110V 50Hz/60Hz
▪ 輸出：30mv / 10KΩ
▪ 音調：440Hz, 554Hz, 659Hz, 880Hz /880Hz, 659Hz, 554Hz, 440Hz
▪ 重量：2.2kg
▪ 尺寸(mm)：430(W) x 210(D) x 44(H)
Follow Us
LATEST NEWSLETTER
Get new and best-selling products info. from MISUMI.
More
Subscribe our newsletter to get new information.
 |
 |
 |
 |
 |
