CMOS >> COLOR >> BODY
Special Price   MO-S412
Low Power Current, Save Power Miniature Camera
 Pixel: 80K(EIA), 100K(CCIR)
 Min. Illumination: 0.5Lux/F1.4
 Resolution: 240TV Lines over
 Lens: 3.4mm/F2.8
 Power: DC 12V(standard), 20mA(Max)
 Dimensions(mm): 13 x 13
 Weight: 15g


Special Price, Saving power consumption, with LED x 10   MO-S4L-3X6
 Saving power consumption, with LED x 10
 LED x 10: white LED, IR 940nm LED, IR 850nm LED for optional
 1/4" B/W CMOS camera
 Pixel: 80K(EIA), 100K(CCIR)
 0.5Lux/F1.4
 Resolution: 240TV Lines over
 Spectrum: 400nm~1000nm
 Lens: 3.4mm/F6.0(close-up lens)
 Focus distance: 2~10cm
 Dimensions(mm): 13 x 13 only
 Power Source: DC 12V(standard)
 Power current: 20mA-max(sensor)
 Weight: 15g




1/4" CCIQIII ultra mini invisible IR light camera   MO-S9500U-3D
 1/4" CCIQIII color camera
 Effective image area: 3.8(H) x 2.9(V) x 4.86(D)
 Pixel: 648 x 488
 480 TV Lines
 Image transfer rate: 60 field/sec (NTSC), 50 field/sec (PAL)
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47.0 [dB]
 Lens: 3.9mm F2.8
 Power: DC 5~12V
 Dimensions(mm): 9.6 x 18

1/5" (PAL) or 1/6" (NTSC) Ultra mini Color CMOS Camera   MO-R806
 1/5" (PAL) or 1/6" (NTSC) Color CMOS Camera
 Pixel: 109K(PAL), 73K(NTSC)
 240 TV Lines
 Shutter Speed: 1/50-1/57000 Sec.
 Min. Illumination: 2Lux
 Power: DC 9 -12V
 Dimensions(mm): OD 8.5mm




Color Microscope Camera   MO-L16Z

  1/3" Color Microscope Camera (CCIQ)
  with LED light source
  Pixel: 360K(PAL), 250K(NTSC)
  Resolution: Horizontal 380 TV Lines
  ZOOM 200X
  Lens: 25 mm/F2.0
1/3.7" CCIQIII Hybrid sensitivity camera   MX-R5512-4K , MX-R5512K-4K
PDF FILE
Hybrid sensitivity low light intensive camera !! waterproof IP 67!
 1/3.7" Hybrid sensitivity color camera
 Pixel: 648(H) x 488(V)
 Resolution: 480 TV Lines
 0.03 Lux / 50IRE, 15 fps-LED turn off / 60cm)
 0.03 Lux / 140IRE, 15 fps-LED turn on / 60cm)
 Frame rate: 30 fps(NTSC), 25 fps(PAL); 15 fps(NTSC & PAL)
 Sensitivity: 8.2[V/Lux.sec]
 Dynamic range: 63.3 [dB]
 Lens: 4.25mm/F1.1
 Power: DC 5 ~12V, 80mA (max)

If you have customized camera designs(15 fps~1fps), Misumi can help you realize them. Feel free to send us your ideas, and we can help custom build your special camera application.
1/3.7" Color CCIQ II Camera   MO-S5510-3T, MO-S5510-4T, MO-S5510-3C
 Effective image area: 3.8(H) x 2.9(V) x 4.86(D)
 Effective pixel: 648(H) x 488(V)
 Pixel size: 6um x 6um
 Resolution: 480
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Focal distance: infinity
 Power: DC 5~12V
 Dimensions(mm): 11 x 11
1/4" Color Super Slim Camera   MO-SL88-3D
PDF FILE
 Effective Image Area: 3.596x 2.708mm (NTSC)
 Effective Pixel: 648(H) x 488(V)
 Pixel Size: 5.55um x 5.55um
 Resolution: Horizontal 400 TV Lines
 0.6 Lux/ F1.2
 Dynamic Range: 63.5 [dB]
 S/N ratio: 45.6 [dB]
 Focal distance: infinity
 Lens: 3.9mm/F 2.8
 Power: DC 5~12V

1/3" CCIQ III mini camera   MO-S5610-4D, MO-S5610-5F, MO-S5610-3T
 1/3" Color CCIQ III Camera Sensor Board
 Pixel: 728(H) x 488(V) (NTSC-EIA/ PAL-CCIR)
 Resolution: 480 (MO-S5610)
 Frame rate: 60 field/sec(NTSC-EIA), 50 field/sec (PAL-CCIR)CVBS
 Min. illumination: 0.05Lux /F1.2 20IRE
 Sensitivity: 13.8 V/Lux.sec
 Dynamic range: 46.4 [dB]
 Lens: 4.8mm/F4.5 (4D Lens), 5.0mm/F3.5(5F Lens), 3.1mm/F3.4(3T Lens)
3.9mm/F2.8](3D Lens), 3.6mm/F2.0(3G Lens), 2.8mm/F3.9(2V Lens)
 Power: DC 5~12V
 Dimensions(mm): 10.5 x 10.5 (+0.2)
(2V) (3C)
(4C)
(4D) (5F) (3T) (3D) (3G2)

Hi-res. download Catalogue Catalogue
1/3" Color CCIQ III D1 HI Resolution Camera   MO-S4610-3C, MO-S4610-4C, MO-S4610-3F, MO-S4610-3G, MO-S4610-4F
 728(H) x 488(V) (NTSC/PAL)
 HI Resolution: Horizontal 480 TV Lines
 Pixel Size: 6.35um x 7.4um
 Effective Image Area: 4622.8um x 3611.2um
 Sensitivity: 13.8 V/Lux.sec
 Dynamic Range: 46.4 [dB]
 Min. Illumination: 0.05Lux /F 1.2 20IRE
 Max. Frame Rate: 60 field/sec(NTSC), 50 field/sec(PAL) CVBS
 Power Supply: DC 5~12V
 Dimensions(mm): 11mm x 11mm
Hi-res. download Catalogue Catalogue
1/4" Mini Color CCD Camera   MS-C450GAS
 1/4" Mini Color CCD Camera
 With Microphone
 510X492 (NTSC) / 500X582 (PAL)
 350 TV Lines
 1/50-1/100,000 sec.
 Lens: 3.6mm/F2.0(G-type), 3.7mm/F3.5(P-type)



Ultra mini camera with Motion detect trigger   MO-M3588, MO-M3588-4F, MO-S3588-2G
 1/4" COLOR CCIQ II Camera
 60 field/sec (NTSC) , 50 field/sec (PAL)
 Pixel: 648x488 (NTSC/PAL)
 400 TV Lines
 0.1Lux / F1.2
 Lens: 4.0mm / F2.0(4F)
 Dimensions(mm): 8.6 x 8.6
 Optional Accessory: TG12512 Alarm I/O RELAY BOX, (MO-M3588-4F)

Hi-res. download Catalogue Catalogue
1/4" Color CMOS Camera   MO-S1524G, MO-S1524P
PDF FILE
 Hi-resolution
 320K 656x492 (NTSC ONLY)
 1Lux/ F1.2
 380TV Lines over
 Dimensions(mm): 14x14(MO-S1524G)
 Dimensions(mm): 14x14 (MO-S1524P)
 Weight: 20g
 Power Source: DC 9-12V(standard)
MO-S1524G MO-S1524P

CCIQ MINI CAMERA, Low power consumption   MO-S58-2S, MO-S58-3S, MO-S58-2V, MO-S58-3V, MO-S58-3W
Low power consumption
 1/4" Color CCIQ II Camera
 Pixel: 648 x 488 (NTSC & PAL)
 Horizontal 400 TV Lines
 Image Transfer Rate: 60 field/sec (NTSC) , 50 field/sec (PAL)
 0.6Lux/ F1.2
 3.4mm/F3.4 (MO-S58-3T), 3.5mm/F3.5 (MO-S58-3TC)
 2.1mm /F2.5 - wide angle (MO-S58-2S), 2.69mm /F2.0 (MO-S58-2B)
 3.4mm /F3.4 (MO-S58-3S), 2.8mm /F3.9 (MO-S58-2V)
 3.3mm /F2.0 (MO-S58-3V), 2.8mm/F3.9 (MO-S58-3W)
 5.0mm/F3.5 (MO-S58-5H)
 Power Supply: DC 5~12V /30mA (DC 12V)
 Dimensions(mm): 8.5 x 8.5

CCIQ Mini Camera   MO-S2588-2S, MO-S2588-3S, MO-S2588-2V, MO-S2588-3V, MO-S2588-3W
 1/4" Color CCIQ II Camera
 Pixel: 648 x 488 (NTSC/PAL)
 Horizontal 400 TV Lines
 Image Transfer Rate: 60 field/sec (NTSC), 50 field/sec (PAL)
 0.6Lux/ F1.2
 2.1mm /F2.5 - Super wide angle (MO-S2588-2G)
 2.1mm /F2.5 - Super wide angle (MO-S2588-2S)
 3.4mm /F3.4 (MO-S2588-3S)
 2.8mm/F3.9 (MO-S2588-2V)
 3.3mm /F2.0 (MO-S2588-3V)
 2.8mm /F3.9 (MO-S2588-3W)
 5.0mm/F3.5 (MO-S2588-5H)
 Power: DC 5~12V
 Dimensions(mm): 8.6 mm x 8.6 mm

CCIQII Mini Camera   MO-S3510
 1/4" Color CCIQ II Mini Camera
 Pixel: 316K (NTSC/PAL)
 Resolution: Horizontal 400 TV Lines
 Min. Illumination: 0.1 Lux/ F1.2
 Power: DC 5~12V, 100mA(Max)
 Dimensions(mm): 11 x 11
CCIQ II Sport Camera   MF-35SH
NEW CCIQ II Sport Camera
 Waterproof IP 67
 1/4" Color CCIQ II amera
 648 x 488 (NTSC/PAL)
 0.1Lux / F1.2
 Power: DC 5-12V
 Lens: 1.8mm, 3.6mm, 4.0mm, 4.3mm, 6.0mm, 8.0mm, 12, 25 (order in advance.)




CCIQ High Sensitivity 1/3" Color camera   MO-S2612, MO-S2615, MO-S2617, MO-S2618, MO-N2631

MO-S2612, MO-S2615, MO-S2617, MO-S2618, MO-N2631
 Challenge CCD Image Quality
 Sensitivity boost(+42 dB)
 With Micro controller storage
 Firmware enhance sharpness and image edge
 Automatic exposure/gain with 16 zone control
 Min. Illumination: 0.2 Lux/ F1.2
 Shutter Speed: 1/50-1/125,000 Sec.

Specification
 1/3" Color CCIQ Camera
 Pixel: 360k(PAL), 250k(NTSC)
 Resolution: 380 TV Lines
 Min. Illumination: 0.2 Lux/ F1.2
 Power: DC 5~12V


1/3.7" COLOR CCIQ III Camera   MO-S5588-30C
 1/3.7" CCIQIII color camera
 Effective image area: 3.8(H) x 2.9(V)X4.86(D)
 Effective pixel: 648(H) x 488(V)(EIA/CCIR)
 Pixel size: 6um x 6um
 Resolution: horizontal 480 TV Lines
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Lens: 30mm/F2.5 (cone type)
 Focal distance: infinity
 Power: 5~12V(100mA)
 Dimensions(mm): (D)8.6

Hi-res. download Catalogue Catalogue
High Quality Camera module with LED   MO-S35L-3X6
 1/4" Color CCIQ II Camera
  White LED x 10
 Pixel: 316K (NTSC/PAL)
 Resolution: Horizontal 400 TV Lines
  Image transfer rate: 60 field/sec (NTSC) , 50 field/sec (PAL)
 Min. Illumination: 0.1 Lux/ F1.2
 Sensitivity: 3.16 [V/Lux.sec]
 Lens: 3.4mm/F6.0 (Deep focus lens)
 Power: DC 5 ~12V, 50mA(Max)
 Dimensions(mm): 11 x 11

 Camera module's tiny size is 11 x 11(mm), and with white LED x 10 or IR 940nm LED or IR 850nm LED ! !
 Perfect for
1. Inspection: pipeline, sewage, air duct, machine.
2. Disaster Rescue: earthquake, tornado, hurricane, snow avalanche, fire, flood.
3. Insurance Claim Adjuster: inspect property damage, vehicle damage.
 MISUMI also does custom design and modification of our items to meet specific needs.
 This photo is captured by "MO-S35L-3X6".
 Camera with built-in deep focus lens and 10 white LED.

CCIQ II Multi-Function Camera   MF-35B, MF-35R, MF-35FH, MF-35SH
NEW CCIQ II Multi-Function Camera
 Waterproof IP 67
 1/4" Color CCIQ II amera
 648 x 488 (NTSC/PAL)
 0.1 Lux / F1.2
 Power: DC 5-12V
 Lens: 1.8mm, 3.6mm, 4.0mm, 4.3mm, 6.0mm, 8.0mm, 12, 25 (order in advance.)

1/3.7" Color CMOS Camera   MX-T95710KL-43F, MX-T65510KL-43F, MX-T95710KLX-43F, MX-T95708KL-43F
 Hybrid sensitivity Super low light camera !!
 IR 940nm LED
 1/3.7" Hybrid sensitivity color or B/W
 Pixel: 648(H) x 488(V)
 Resolution: 550 TV Lines(B/W), 480 TV Lines(color)
 0.03 Lux / 50IRE, 15 fps-LED turn off / 60cm)
0.03 Lux / 140IRE, 15 fps-LED turn on / 60cm)
 Frame rate: 15 fps
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Lens: 4.3mm/F2.0
 Power: DC 5 ~12V, 80mA(max)
 Dimensions(mm):
(D)10x30 (MX-T95710 series)
(D)8.5x27.5 (MX-T95708 series)
Low light camera, dark helper
1/3"Color CMOS Camera   MO-S2616G, MO-S2616P
 Hi-resolution
 250K(NTSC), 360K(PAL)
 0.2Lux/ F1.2
 380TV Lines over
 Shutter Speed: 1/50-1/12,5000 Sec.
 Dimensions(mm): 16x16x23(MO-S2616G)
 Dimensions(mm): 16x16x11(MO-S2616P)
 Power: DC 7~12V(standard)
 Weight: 20g
1/3" Color 960H Camera   MO-S8617G, MO-S8617P
PDF FILE
960H Camera
 Pixel: 976 (H) x 496(V) (NTSC/PAL)
 Pixel size: 5.00um x 7.40um
 Effective image area: 4.88mm x 3.67mm
 HI Resolution: 710(NTSC), 740(PAL) TV lines over
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Shutter speed: 1/60~1/200,000(NTSC), 1/50~1/170,000(PAL)
 Power: DC 5~12V
 Dimensions(mm): 17x27.5x28 (MO-S8617G)
 Dimensions(mm): 17x27.5x18 (MO-S8617P)

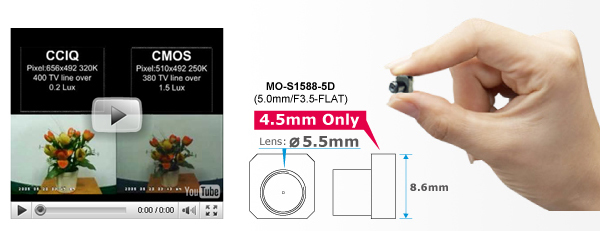

CCIQ Mini Camera   MO-S1588-5D, MO-S1788-5D, MO-S1588
 Hi-resolution
 250K(NTSC), 360K(PAL)
 0.2Lux/ F1.2
 380TV Lines over
 Shutter speed: 1/50-1/12,5000 Sec.
 With microphone
 Power: DC 7~12V
 Dimensions(mm): 40 x 45 x 40
1/2.9 HD-CVI CMOS Color Camera   MHD-C6215
 1/2.9" HD-CVI CMOS Color Camera
 Pixel: 4.2 um x 4.2 um
 Scan mode: progressive
 Max. Frame Rate: 60fps
 Video output: BNC connector
 Effective pixels: 1296 x 736 (NTSC/PAL)
 OSD function: exposure, white balance, day & night, frame rate, color bar, language, shutter, AGC, BLC
 Dimensions(mm): 15x15(board)
HD-cvi camera, motion detection, smart contrast, OSD function
New CCIQ II Camera   MO-S8614G, MO-S8614P, MO-S4614G, MO-S4614P, MO-S5514G, MO-S5514P, MO-S3514G, MO-S3514P
MO-S8614
 960H pixel

 1/3" Color CCIQ II Camera
 Pixel: 976 x 496 (NTSC/PAL)
 710(NTSC), 740(PAL) TV Lines
 3.7mm/F2.0(MO-S8614G ), 4.3mm/F2.0(MO-S8614-4F)
 Sensitivity: 11.4[V/Lux.sec]
 Power: DC 5~12V

MO-S4614
 1/3" Color CCIQ II Camera
 Pixel: 728x488(NTSC/PAL)
 480 TV Lines
 3.7mm/F2.0(MO-S4614G ), 4.3mm/F2.0(MO-S4614-4F)
 Sensitivity: 13.8 V/Lux.sec
 Power: DC 5~12V

MO-S5514
 1/4" Color CCIQ II Camera
 Pixel: 648x488(NTSC/PAL)
 480 TV Lines
 3.7mm/F2.0(MO-S5514G ), 4.3mm/F2.0(MO-S5514-4F)
 Sensitivity: 8.2 [V/Lux.sec]
 Power: DC 5~12V

MO-S3514
 1/4" Color CCIQ II Camera
 Pixel: 648x488(NTSC/PAL)
 400 TV Lines
 3.7mm/F2.0(MO-S3514G ), 4.3mm/F2.0(MO-S3514-4F)
 Sensitivity: 3.16 [V/Lux.sec]
 Power: DC 5~12V
1/3" Color CCIQ Camera   MO-P2650GA
PDF FILE
 Hi-resolution
 250K(NTSC), 360K(PAL)
 0.2Lux/ F1.2
 380TV Lines over
 Shutter Speed: 1/50-1/12,5000 Sec.
 With Microphone
 Power: DC 7-12V(standard)
 Dimensions(mm): 40x45x40
1/4" Color CCIQ II Camera   MO-HS3588-3D
PDF FILE
With beam split mirror cover lens pin hole
 1/4" Color CCIQ II Camera
 Effective Pixel: 648(H) x 488(V)
 Resolution: Horizontal 400 TV Lines
 0.1 Lux/ F1.2
 S/N ratio: 50 [dB]
 Lens: 3.9mm/F 2.8
 Power: DC5~12V
 Dimensions(mm): 8.6 x 8.6
960H Mini Camera   MO-S8616G, MO-S8616P, MO-S8516G, MO-S8516P
 1/3" Color CCIQ III 960H
 Pixel: 976 (H) x 496(V) (NTSC-EIA / PAL-CCIR)
 Resolution: 710 (NTSC/EIA), 740 (PAL/CCIR) TV line over
 Shutter speed: 1/60~1/200,000 (NTSC/EIA), 1/50~1/170,000 (PAL/CCIR)
 Dynamic range: 63.5 [dB]
 Sensitivity: 11.4 [V/Lux.sec]
 Power: DC 5~12V
 Dimensions(mm): 16 x 16
with UTC function: MO-S8516G, MO-S8516P
G-TYPE LENS
3.6mm/F2.0
3F Lens 3.7mm/F2.0
4F Lens 4.3mm/F2.0

1/3" Color CMOS Camera   MO-R2630G, MO-R2630P
PDF FILE
 1/3" Color CMOS Camera
 250K(NTSC)
 Horizontal 380 TV Lines over
 Min. Illumination: 0.2 Lux/ F1.2
 Shutter Speed: 1/50-1/12,5000 Sec.
 Lens: 3.7mm/F2.0 (micro board type)
 Power: DC 5-12V(standard), 60mA(Max)
 Dimensions(mm): 24(D)×18(H)
 Weight: 20g
1/3" Color CMOS Camera   MO-R2650
PDF FILE
 Hi-Resolution
 250K(NTSC), 360K(PAL)
 0.2Lux/F1.2
 380TV Lines over
 Shutter Speed: 1/50-1/12,5000 Sec.
 Power: DC 7-12V (standard)
1/3" Color CCIQ Camera   MO-R2621
 Hi-Resolution
 250K(NTSC), 360K(PAL)
 0.2Lux/F1.2
 380TV Lines over
 Power: DC 7-12V(standard)
1/3" Color CMOS Camera   MO-N2610
PDF FILE
 Hi-Resolution
 250K(NTSC), 360K(PAL)
 0.2Lux/F1.2
 380TV Lines over
 with Audio
 Power: DC 7-12V(standard)
1/3" Color CMOS Camera   MO-N2660G
PDF FILE
 Hi-Resolution
 250K(NTSC), 360K(PAL)
 0.2Lux/F1.2
 380TV Lines over
 With Audio
 Power: DC 7-12V(standard)
1/3"COLOR CMOS CAMERA   MO-N2660P
PDF FILE
 Hi- resolution
 NTSC-250K
 PAL-360K
 0.2Lux/F1.2
 380TV Lines over
 AUDIO
 Power Source:DC 7-12V(standard)
1/3"COLOR CMOS CAMERA   MO-N2690
PDF FILE
 Hi- resolution
 NTSC-250K
 PAL-360K
 0.2Lux/F1.2
 380TV Lines over
 AUDIO
 Power Source:DC 7-12V(standard)
LED Light x 10 Tube Camera   MO-T3510LW
PDF FILE
10 LED super Lightness Inspection Module
 1/4" Color CCIQ II Camera
 white LED x 10 (standard white light)
 IR LED light Types:
 IR 940nm (ITEM.NO MO-T9510LW)
 IR 850nm (ITEM.NO MO-T8510LW)
 LED light Illumintation : 5400Lux
 Pixel: 648 x 488 (NTSC/PAL)
 Focus distance: 6cm ~ infinity (Ordering in advance)
 Lens: 3.1mm/F7.0mm (focus 6cm)
 Frame rate: 60 field/sec (NTSC), 50 field/sec (PAL)
 Dimensions(mm): 10(D) x 14

1/3" CCIQ III 960H Camera   MO-P8550G, MO-P8650G, MO-P8550P, MO-P8650P
 MO-P8550 with UTC function
 1/3" Color CCIQ III 960H (MO-P8550, MO-P8650)
 Pixel: 976 (H) x 496(V) (NTSC-EIA / PAL-CCIR)
 Pixel size: 5.00 um x 7.40 um
 Effective image area: 4.88 mm x 3.67 mm
 HI Resolution: 710 (NTSC/EIA), 740 (PAL/CCIR) TV line over
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Shutter speed: 1/60~1/200,000 (NTSC/EIA), 1/50~1/170,000 (PAL/CCIR)
 Power: DC 5~12 V
 Dimensions(mm): 11 x 11
Hi-res. download Catalogue Catalogue
1/4" Color CCIQ Camera   MO-S1515G-1.8
PDF FILE
 1/4" Color CCIQ Camera
 Pixel: 320K (NTSC ONLY)
 Shutter Speed: 1/60-1/20,0000 Sec.
 Resolution: Horizontal 380 TV Lines
 Min. Illumination: 1 Lux/ F1.2
 Lens: 1.8mm/F2.5 (Wide angle)
 Power: DC 4~12V
 Dimensions(mm): 16.5 × 16.5

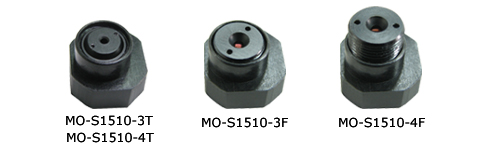

1/4" Color CCIQ Mini Camera   MO-S1510, MO-S2610
MO-S1510
 1/4" Color CCIQ Camera
 Pixel: 320K(NTSC only)
 380 TV Lines
 Shutter Speed: 1/50-1/200,000Sec.
 Min. Illumination: 1Lux
 Power: DC 5~12V
 Dimensions(mm): Ø12

MO-S2610
 1/3" Color CCIQ Camera
 Pixel: 250K(NTSC), 360(PAL)
 380 TV Lines
 Shutter Speed: 1/50-1/125,000Sec.
 Min. Illumination: 0.2 Lux/ F1.2
 Power: DC 5~12V
 Dimensions(mm): Ø12
High Sensitivity 1/3" Color CMOS Camera   MO-S2612P
PDF FILE
 Hi-Resolution
 250K(NTSC), 360K(PAL)
 Sensitivity boost(+42 dB)
 With Micro controller storage
 Firmware enhance sharpness and image edge,
 Automatic exposure/gain with 16 zone control
 Horizontal 380 TV Lines over
 Min. Illumination: 0.2Lux/ F1.2
 Shutter Speed: 1/50-1/12,5000 Sec.
 Dimensions(mm): 15x15x14
 Power: DC 5 -12V(standard)
 Weight: 20g
High Sensitivity 1/3" Color CMOS Camera   MO-S2615P
PDF FILE
 Hi-Resolution
 250K(NTSC), 360K(PAL)
 Sensitivity boost(+42 dB)
 With Micro controller storage
 firmware enhance sharpness and image edge,
 Automatic exposure/gain with 16 zone control
 Horizontal 380 TV Lines over
 Min. Illumination: 0.2Lux/ F1.2
 Shutter Speed: 1/50-1/12,5000 Sec.
 Dimensions(mm):16x16x23
 Power: DC 5~12V(standard)
 Weight:20g

1/3" Color CCIQ Camera   MO-R2622
PDF FILE

 Challenge CCD Image Quality
 Waterproof
 1/3" Color CCIQ Camera
 Shutter Speed: 1/50-1/12,5000 Sec.
 250K(NTSC), 360K(PAL)
 Lens: 4.0mm
 Dimensions(mm): 22(D)×43(H)
 Other model: MO-R1522




High Sensitivity 1/4" Color CCIQ Camera   MO-S15xx
PDF FILE
MO-S1515 , MO-S1517 , MO-S1518 , MO-S1512 , MO-N1524

  CCIQ Challenge CCD Image Quality
  Shutter Speed: 1/60-1/200,000 Sec.
  Min. lllumination: 1 Lux/F1.2
  Sensitivity boost(+42 dB)
  With Micro controller storage
  firmware enhance sharpness and image edge,
  Automatic exposure/gain with 16 zone control
  320K (NTSC ONLY)
  380TV Lines
  Power: DC 5-12V(standard)




Ultra Mini Color Camera   MO-S988, MO-S888, MO-S788, MO-S588

SSAVING POWER ULTRA MINI COLOR CAMERA -  Dimensions(mm): 8 x 8


 MO-S988
 1/4" Color CMOS Camera
 250K (NTSC/PAL)
 1.5Lux/F1.2
 350TV Lines over
 Lens: 4.0 mm/F2.0
 Power: DC 4-12V(standard)

 MO-S888
 1/5" (PAL) & 1/6" (NTSC) Color CMOS Camera
 73K(NTSC), 109K(PAL)
 2Lux/F1.2
 240TV Lines over
 Lens: 3.1 mm/F3.4
 Power: DC 9-12V(standard)

 MO-S788
 Hi-Resolution
 EIA-250K(EIA ONLY)
 0.05Lux/F1.2
 380TV Lines over
 Audio (Optional)
 Power: DC 7-12V(standard), DC 6-10V(optional)

 MO-S588
 1/4" Color CMOS Camera
 250K (NTSC)
 1.5Lux/F1.2
 380TV Lines over
 Lens: 4.0mm/F2.0
 Power: DC 9-12V(standard)


 MO-S588-8F
 1/4" Color CMOS Camera
 250K (NTSC)
 1.5Lux/F1.2
 380TV Lines over
 Lens: 8.0mm/F2.0
 Power: DC 9-12V(standard)


Hi-res. download Catalogue Catalogue
1/4" Color CCIQII Mini Camera   MO-S3512, MO-S3712
MO-S3512 MO-S3712
 1/4" Color CCIQ II Mono Camera
 Pixel: 316K (NTSC/PAL)
 Resolution: Horizontal 400 TV Lines
 Min. Illumination: 0.1 Lux/ F1.2
 Power: DC 5~12V
 Dimensions(mm): 12 x 12
 1/4" B/W CCIQ II Mini Camera
 Pixel: 316K (EIA/CCIR)
 Resolution: Horizontal 400 TV Lines
 Min. Illumination: 0.06 Lux/ F1.2
 Power: DC 5~12V
 Dimensions(mm): 12 x 12
MO-S3512G-2G
LENS:2.1mm/F2.5(M7/P0.5)
  MO-S3512-3.3
LENS:3.3mm/F2.0(M10/P0.5)
  MO-S3512G-2.5
LENS:2.5mm/F2.5(M10/P0.5)

Hi-res. download Catalogue Catalogue
Ultra Mini Color Camera   MO-S888-3T
 1/6" (NTSC) & 1/5" (PAL) Color CMOS Camera
 73K(NTSC), 109K(PAL)
 2Lux/F1.2
 240TV Lines over
 Lens: 3.1 mm/F2.0
 Power: DC 9-12V(standard)
 Dimensions(mm): 8 x 8
1/3" CCIQ III Mini Camera   MO-S6600E-3C, MO-S6600E-4D, MO-S6600E-5F, MO-S6600E-3T
 1/3" color CCIQ III D1 Hi-Resolution camera
 With 5D OSD key
(exposure, WDR, AGC, WB brightness contrast sharpness color gain NR mirror)
 Pixel: 756(H) x 504(V) D1 (NTSC / PAL)
 Resolution: horizontal 520 TV lines
 Pixel size: 6.35um x 7.4um
 Effective image area: 4.80mm x 3.73mm
 Sensitivity: 11.9 [V/Lux.sec]
 Min. illumination: 0.05Lux /F 1.2 20IRE
 Max. frame rate: 30 fps CVBS (NTSC/PAL)
 Lens: 4.8mm/F4.5(4D Lens), 5.0mm/F3.5(5F Lens),
3.1mm/F3.4(3T Lens), 3.9mm/F2.8(3D Lens), 3.7mm/F2.0(3C Lens)
 Power: DC 5~12 V
 Dimensions(mm): 12.8 x 12.8
WDR technology can potentially create a much better photograph of the scene/WDR light environment (tunnel) :

Hi-res. download Catalogue Catalogue
1/3" Color CCIQ III Camera   MO-S8650, MO-S8651, MO-S8651-2V
 1/3" color CCIQ III 960H camera (MO-S8650, MO-S8651)
 1/3" B/W CCIQ III 960H camera (MO-S8950, MO-S8951)
 Pixel: 976 (H) x 496(V)
 Pixel size: 5.00 um x 7.40 um
 Effective image area: 4.88 mm x 3.67 mm (diagonal :5.97mm)
 Resolution: 710(NTSC/EIA), 740(PAL/CCIR) TV line over
 Shutter speed: 1/60~1/200,000(NTSC/EIA), 1/50~1/170,000(PAL/CCIR)
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Lens: 4.3mm/F2.0(4V/M10), 2.8/F3.9(2V/M7)
 Power: DC 5~12V (80mA-Max)
 Dimensions(mm): (D)23(MO-S8651, MO-S8951) / 20 x 23(MO-S8650, MO-S8950)

Hi-res. download Catalogue Catalogue
1/3" CCIQ III 960H Camera   MO-M8510-4C, MO-M8510-3F, MO-M8510-3C, MO-M8710-4C, MO-M8710-3D
 1/3" Color CCIQ III 960H Camera(MO-M8510)
 1/3" B/W CCIQ III 960H Camera(MO-M8710)
 Pixel: 976 (H) x 496(V) (NTSC-EIA / PAL-CCIR)
 Pixel size: 5.00um x 7.40um
 Effective image area: 4.88mm x 3.67mm
 HI Resolution: 710 (NTSC/EIA), 740 (PAL/CCIR) TV lines over
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Shutter speed: 1/60~1/200,000 (NTSC/EIA), 1/50~1/170,000 (PAL/CCIR)
 Power: DC 5~12 V
 Dimensions(mm): 11 x 11
MO-M8510 series with UTC function
Hi-res. download Catalogue Catalogue
1/3" CCIQ III Mini Camera   MO-R6620E
PDF FILE
 1/3" Color CCIQ III D1 Hi-Resolution Mini Camera
 With 5D OSD key
(exposure, WDR, AGC, WB, brightness, contrast, sharpness, color gain, NR, mirror)
 Pixel: 756(H) x 504(V) D1 (NTSC / PAL)
 Resolution: horizontal 520 TV lines
 Pixel size: 6.35um x 7.4um
 Effective image area: 4.80mm x 3.73mm
 Sensitivity: 11.9 [V/Lux.sec]
 Min. illumination: 0.05Lux /F 1.2 20IRE
 Max. frame rate: 30 fps CVBS (NTSC/PAL)
 Lens: 3.7mm/F2.0
 Power: DC 5~12V
 Dimensions(mm): 20(D)

Hi-res. download Catalogue Catalogue
1/4" Color CCIQ IV Camera  MO-S7510-4C, MO-S7510-3F, MO-S7510-3C
 1/4" Color CCIQ III Camera (MO-S7510)
 Pixel: 648(H) x 488(V) (NTSC/PAL)
 Pixel size: 5.6 um x 5.6 um
 Effective image area: 3.63mm x 2.73mm x 4.54mm
 Resolution:
horizontal 500(NTSC), 560(PAL) TV Lines
 Sensitivity: 10.5 [V/Lux.sec]
 SNR: 46.2 [dB]
 Dynamic range: 65.3 [dB]
 Power: DC 5~12V
 Dimensions(mm): 11 x 11
1/4" Color CCIQ IV Camera   MO-S7588-3D, MO-S7588-2V, MO-S7588-3T, MO-S7588-4T, MO-S7588-2S, MO-S7588-3K
Pixel: 648(H) x 488(V) (NTSC/PAL)
Pixel size: 5.6um x 5.6um
Effective image area: 3.63 mm x 2.73 mm x 4.54 mm
Resolution: horizontal 500(NTSC), 560(PAL) TV Lines
Sensitivity: 10.5 [V/Lux.sec]
SNR: 46.2 [dB]
Dynamic range: 65.3 [dB]
Power: DC 5~12 V
Dimensions(mm): 8.6 x 8.6

ULTRA MINI COLOR CAMERA  MO-S788

ULTRA MINI COLOR CAMERA -  Dimensions:8 x 8mm Only




 MO-S788
 Hi-resolution .
 EIA-250K(EIA ONLY)
 0.05Lux/F1.2
 380TV Lines over
 AUDIO(Optional)
 Power Source:DC 7-12V(standard),DC 6-10V(optional)



Hi-res. download Catalogue Catalogue
1/3.7" Color CCIQ III Camera   MO-S5508U-3M, MO-S5508LU-3X6
Ultra Slim
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Effective Pixel: 648(H) x 488(V)(NTSC / PAL)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 480 TV Lines
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Focal distance: infinity
 Power Consumption: DC5~12V
 Dimension: 8 x 13 x 5.1mm

1/3.7" COLOR CCIQ III Camera   MO-D5510-2V
 Effective Image Area:3.8(H) x 2.9(V)X4.86(D)
 Effective Pixel: 648(H) x 488(V)(EIA / CCIR)
 Pixel Size: 6 um x 6 um
 Resolution: Horizontal 480 TV Lines
 0.02 Lux/ F1.2
 Sensitivity: 8.2 [V/Lux.sec]
 Dynamic Range: 63.3 [dB]
 S/N ratio: 47 [dB]
 Lens: 2.8mm/F3.9
 Focal distance: infinity
 Power Consumption: 5~12V
 Dimension: 10.5 x 10.5mm

Power saving, with LED x 10  MO-S4L-43F
 Saving power consumption, with LED x 10
 LED x 10: white LED, IR 940nm LED, IR 850nm LED for optional
 1/4" B/W CMOS camera
 Pixel: 80K(EIA), 100K(CCIR)
 0.5Lux/F1.4
 Resolution: 240TV Lines over
 Spectrum: 400nm~1000nm
 Lens: 4.3mm/F2.0
 Focus distance: 2~10cm
 Dimensions(mm): 13 x 13 only
 Power Source: DC 5V (20mA for camera only, 180mA for camera+LED)
(DC5V / DC 7~12V ordering in advance)
 Power current: 20mA-max(sensor)
 Weight: 15g




1/3.7" Color CCIQ Mini Camera   MO-S5588-3D, MO-S5588-2V, MO-S5588-3T, MO-S5588-3X6, MO-S5588-3H
 1/3.7" Color CCIQ Camera
 Pixel: 648(H) x 488(V) (NTSC / PAL)
 Pixel size: 6 um x 6 um
 Effective image area: 3.8 mm x 2.9 mm x 4.86 mm
 Resolution: 480 TV Line(NTSC / PAL)
 Sensitivity: 8.2 [V/Lux.sec]
 SNR: 47 [dB]
 Dynamic range: 63.3 [dB]
 Power: DC 5~12 V
 Dimension(mm): 8.6 x 8.6

1/3.56" Color CCIQ Camera   MO-S5088-3TC, MO-S5088-3TF, MO-S5088-3D, MO-S5088-4F, MO-S5088-4C, MO-S5088-2ES
 High image quality and Ultra low light performance
 UTC Contorl function
 Mini size
 1/3.56" Color CCIQ Camera
 Pixel: 712(H) x 552(V) (NTSC / PAL)
 Pixel size: 5.6 um x 5.6 um
 Effective image area: 3.99 mm x 3.09 mm x 5.0 mm
 Resolution: 480 TV Line
 Sensitivity: 16 [V/Lux.sec]
 SNR: 44.8 [dB]
 Dynamic range: 75 [dB]
 Power: DC 5~12 V
 Dimension(mm): 8.6 x 8.6

Hi-res. download Catalogue Catalogue
1/3" Mini Camera  MO-S5616G, MO-S5616P
PDF FILE
 1/3" Color CCIQ III
 Pixel: 728(H) x 488(V)
 Resolution:480 TV Lines
 Frame Rate: 60 field/sec(NTSC), 50 field/sec (PAL)CVBS
 Dynamic Range: 46.4 [dB]
 Sensitivity: 13.8 V/Lux.sec
 Power: DC 5~12V
 Dimensions(mm): 16 x 16
G-TYPE LENS
3.6mm/F2.0
3F Lens 3.7mm/F2.0
4F Lens 4.3mm/F2.0

ultra mini camera  MX-R5610-3V, MX-R5610K-3V
 1/3" Color CCIQ III(MX-R5610, MX-R5610K)
 Pixel: 728(H) x 488(V)
 480 TV Lines
 0.5 Lux / 63.2IRE, 30 fps
 Frame rate: 30 fps(MX-R5610) ; 15 fps(MX-R5610K)
 Sensitivity: 13.8 [V/Lux.sec]
 S/N ratio: 46.4 [dB]
 Lens: 3.7mm /F2.5
 Power: DC 5 ~12V (80mA- max)
 Dimension(mm): (D)10
mini camera  MO-S4616G, MO-S4616P
PDF FILE
 1/3" Color CCIQ III D1 Camera
 Pixel: 728 (H) x 488(V) (NTSC/PAL)
 Pixel size: 6.35 um x 7.4 um
 Effective image area: 4.62 mm x 3.61 mm
 HI Resolution: 480(NTSC/PAL) TV line over
 Sensitivity: 13.8 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.7 [dB]
 Shutter speed:
1/60~1/200,000 (NTSC/EIA),
1/50~1/170,000 (PAL/CCIR)
 Power: DC 5~12 V
 Dimension(mm): 16 x 16
G-TYPE LENS
3.6mm/F2.0
3F Lens 3.7mm/F2.0
4F Lens 4.3mm/F2.0

CCIQII CCD IMAGE QUALITY MINI CAMERA  MO-S3588
CCD IMAGE QUALITY MINI CAMERA

 1/4" Color CCIQ II Camera
 Pixel : 316K ( NTSC / PAL )
 Resolution : Horizontal 400 TV Lines
 Shutter Speed :AUTO
 Min. Illumination :0.1Lux/ F1.2
 With 4.0mm/F2.0 (4F) lens,
 Power Supply : DC 5 -12V
 Power consum. : 100 mA(Max)
 Dimension(mm) : 8.6 mm x 8.6 mm


1/3" CCIQ III 960H camera   MO-S8610-3F,MO-S8610-3C, MO-S8610-4C, MO-S8610-3D, MO-S8610-3TC, MO-S8610-2V
 1/3" Color CCIQ III 960H Camera
 Pixel: 976 (H) x 496(V) (NTSC / PAL)
 Pixel size: 5.00 um x 7.40 um
 Effective image area: 4.88 mm x 3.67 mm
 HI Resolution: 710 (NTSC), 740 (PAL) TV line over
 Dark signal: 34.0 [mV/sec ]
 Sensitivity: 11.4 [V/Lux.sec]
 SNR: 46.4 [dB]
 Dynamic range: 63.5 [dB]
 Shutter speed: 1/60~1/200,000 (NTSC), 1/50~1/170,000 (PAL)
 Power: DC 5~12 V
 Dimension(mm): 11 x 11

Hi-res. download Catalogue Catalogue
HD 720p Headset camera / Micro USB  MM-102
USB 2.0 headset camera with HD 720p resolution
  1/4" WXGA HD 720P camera
 Scan mode: progressive
 Pixel: 1280 x 720 /YUV 10fps/ MJPEG 1~30fps/ H.264 1~24fps, 640 x 400, 320 x 200 1~30 fps
 pixel size: 3 um x 3 um
 Image area: 3888 um x 2430 um
 Lens: 3.4mm/F2.8(M6xP0.35)
 USB Interface: Micro USB OTG B type


Follow Us

LATEST NEWSLETTER

Get about new and popular products in MISUMI.
More


Subscribe our newsletter to get new information.
